AMT 338E-96 2" Aluminum Self-Priming Electric Motor Driven Diaphragm Pump (1-1/2 HP Electric Motor, Single Phase, TPE Diaphragm)

AMT 338E-96 2" Aluminum Self-Priming Electric Motor Driven Diaphragm Pump (1-1/2 HP Electric Motor, Single Phase, TPE Diaphragm)

$2,361.55 USD
$3,235.00 USD $2,361.55 USD
Sale Sold out
Shipping calculated at checkout.

338E-96

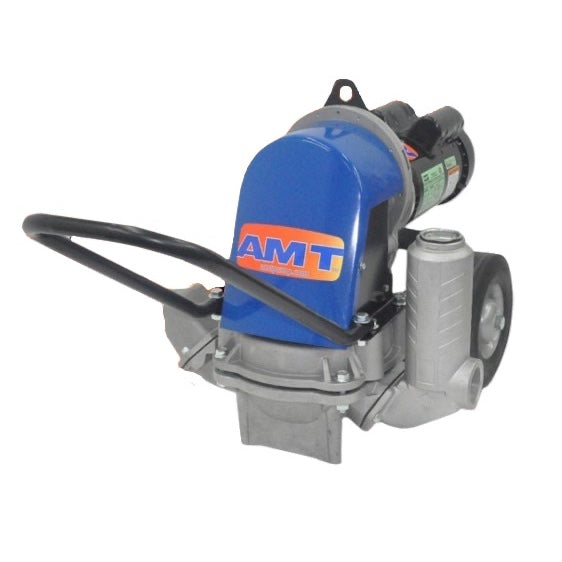

AMT 338E-96 2" Aluminum Self-Priming Electric Motor Driven Diaphragm Pump is designed, manufactured and tested in the USA. Diaphragm pumps are also known as mud or sludge pumps for their ability to pump thick liquids. This model is equipped with a 1-1/2 HP electric motor with a maximum flow rate over 30 gpm. A strong cast aluminum body increases durability while the TPE diaphragm prolongs the longevity of the internal parts. AMT Pump Company is a subsidiary of The Gorman-Rupp Company.

Specifications:

  • Pump Body:  Cast Aluminum
  • Diaphragm:  TPE
  • Maximum Flow Rate:  30 gpm - See Performance Chart
  • Ports:  2" NPT
  • Motor:   1-1/2 HP, Single Phase, 56C Frame
  • Weight:  175 lbs

The AMT line of Diaphragm pumps features a 2-stage, heavy duty forged gear driven transmission. Often referred to as Mud or Sludge Pumps, diaphragm pumps are designed to pump mud, slurry, sewage and thick liquids that have the ability to flow. AMT Diaphragm pumps are available with a choice of drivers to meet your application requirements: gasoline, diesel or single or three phase electric motor. Built-in check valve assures self-priming to 20 feet after initial prime. Heavy  duty forged gear driven transmission is designed to operate pump at 40 strokes per minute for electric motor models and 60 strokes per minute for engine driven models. Each unit includes a 2” or 3” NPT steel suction strainer, two NPT nipples and a wheel kit for portability. Models 338E K6, 338G-K6, 337H-K6 and 337E-K6 are kits provided less motor or engine. Suction and discharge port sizes cannot be reduced.

Series Features:

  • Sand Cast Aluminum Construction for Portability and Durability
  • Thermoplastic Santoprene Diaphragm
  • 2˝ or 3˝ NPT Suction and Discharge Ports
  • Self-Priming to 25 Ft. Lift
  • Solids Handling and Dirty Water Design
  • Maximum Solids Handling up to 1-5/8˝"
  • Modular Component Design Permits Easy Maintenance and Cleanout
  • Driver Options: Gasoline or Electric Single & Three Phase Motors
  • Delivers up to 90 GPM
  • 90° Rotatable Base on All Models
  • Maximum Temperature 180° F
  • Models 338E-96/337E-96—1.5 HP Single Phase, 115/230 VAC Volt Motor with Manual Reset Overload
  • Models 338E-96/339T-96—1.5 HP Three Phase, 230/460 VAC Volt Motor (Plug & Switch Not Included)
  • Models 338G-K6/337H-K6—Kit Furnished Less Engine. For use with Gasoline or Diesel Engines with 0.75" Keyed Shaft (SAE J609a Mounting Flange)
  • Models 338E-K6/337E-K6—Kit Furnished Less Motor. For use with Electric Motor (1725 RPM) or Air Motor with a Minimum of 1.5 HP (56C Mounting Flange Required)
