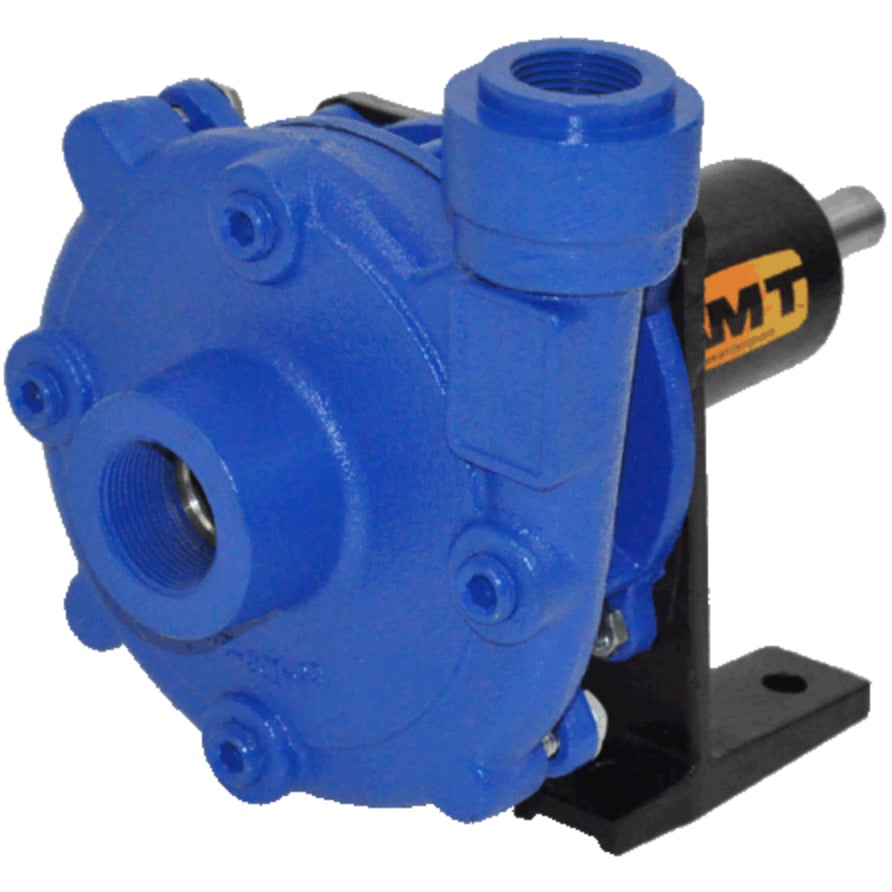

AMT 3682-95 3/4" x 1/2" Cast Iron Straight Centrifugal Solids Handling Pedestal Pump (Buna-N/SS Seal, 1/2 HP Min)

Specifications:

• Pump Body:  Cast Iron

• Mechanical Seal:  Buna-N/SS

• Maximum Flow Rate:  33 gpm - See Performance Chart
• Ports:  3/4" Suction x 1/2" Discharge

• HP Required:  1/2
• Shaft:  5/8"
• Maximum Speed:  4000 RPM
• Weight:  9 lbs


AMT Straight Centrifugal Pedestal pumps are designed for continuous duty OEM, Industrial/ Commercial and processing applications including: circulation, chemical processing, liquid transfer, heating and cooling. The high head models are ideal for sprinkler systems and pressure boosting. These units are available in a variety of construction and seal materials. Pull-from-the-rear design permits easy servicing without disturbing any piping. Pedestals feature CNC machined shafts with sealed ball bearings.

Series Features:

• 300 Series Investment Cast Stainless Steel, Stainless Steel Fitted Cast Iron or Cast Bronze Construction
• Mechanical Seal:
  • Cast Iron Buna-N
  • Stainless Steel Viton®
  • Cast Bronze Viton®
  • Optional Silicon Carbide
• Maximum Temperature:
  • Buna-N 180° F
  • Viton® 200° F
• 3/4" to 1-1/4" NPT Suction Ports
• 1/2" to 1" NPT Discharge Ports
• Maximum Working Pressure:
  • General Service 75 PSI
• Self-cleaning Impeller on General Service Models
• Maximum Flow 84 GPM
• Maximum Head 76 Ft.
