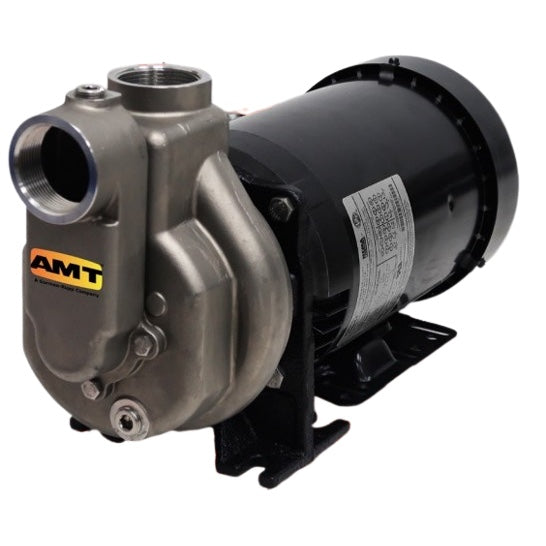

AMT 3893-98 1-1/2" Stainless Steel Self-Priming Electric Motor Driven Centrifugal Chemical Pump (1-1/2 HP, TEFC, 56J, 230/460V, Three Phase, Teflon®/SS)

AMT 3893-98 1-1/2" Stainless Steel Self-Priming Electric Motor Driven Centrifugal Chemical Pump (1-1/2 HP, TEFC, 56J, 230/460V, Three Phase, Teflon®/SS)

$1,527.89 USD
$2,093.00 USD $1,527.89 USD
Sale Sold out
Shipping calculated at checkout.

3893-98

AMT 3893-98 1-1/2" Stainless Steel Self-Priming Electric Motor Driven Centrifugal Chemical Pump is designed, manufactured and tested in the USA. This model is equipped with a 1-1/2 HP electric motor and can handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU. A durable stainless steel body increases chemical compatibility while the Teflon®/SS shaft seal prolongs the longevity of the internal parts. AMT Pump Company is a subsidiary of The Gorman-Rupp Company.

Specifications:

  • Pump Body:  Stainless Steel
  • Mechanical Seal:  Teflon®/SS
  • Maximum Flow Rate:  103 gpm - See Performance Chart
  • Ports:  1-1/2" NPT
  • Electric Motor:  1-1/2 HP, Three Phase, TEFC, 56J
  • Voltage:  230/460V
  • Weight:  52 lbs

AMT Self-Priming 300 Series Stainless Steel or Bronze Centrifugal pumps are designed for a wide range of applications including chemical processes, waste water treatment and pumping agriculture fertilizers/fumigants. All models are equipped with Totally Enclosed Fan Cooled (TEFC) motors. 300 Series Stainless Steel models are fitted with Teflon® mechanical seal and o-ring, while bronze models come standard with Viton® mechanical seal and o-ring. Pumps are selfpriming to 6 feet. Pumps are designed to handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU.

Series Features:

  • Available in: Bronze or 300 Series Investment Cast Stainless Steel Construction with Stainless Steel Impeller
  • Viton® or Teflon® Mechanical Seal and O-Ring – Depending on Model
  • Dual Volute Design
  • 1-1/2˝ NPT Suction and Discharge Ports
  • Maximum Temperature
    • Bronze 200° F
    • Stainless Steel 250° F
  • Maximum Flow 120 GPM
  • Maximum Head 74 Ft.
  • Self-Priming to 6 Ft.
  • Self-Cleaning, Semi-Open Impeller
  • Solids Handling and Dirty Water Design
  • Maximum Working Pressure 75 PSI
  • 3/4 to 2 HP Totally Enclosed Fan Cooled (TEFC) Motor Single or Three Phase Motor
