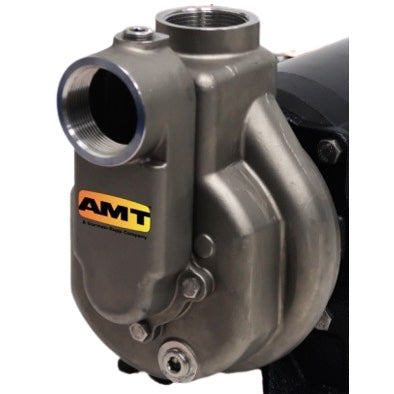

AMT 3899-98 1-1/2" Stainless Steel Centrifugal Chemical Pedestal Pump (Teflon®/SS Seal, 2 HP Min)

Specifications:

• Pump Body:  Stainless Steel

• Mechanical Seal:   Teflon®/SS
• Ports:  1-1/2"

• HP Required:  2
• Weight:  30 lbs


AMT Self-Priming 300 Series Stainless Steel or Bronze Centrifugal pumps are designed for a wide range of applications including chemical processes, waste water treatment and pumping agriculture fertilizers/fumigants. All models are equipped with Totally Enclosed Fan Cooled (TEFC) motors. 300 Series Stainless Steel models are fitted with Teflon® mechanical seal and o-ring, while bronze models come standard with Viton® mechanical seal and o-ring. Pumps are selfpriming to 6 feet. Pumps are designed to handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU.

Series Features:

• Available in: Bronze or 300 Series Investment Cast Stainless Steel Construction with Stainless Steel Impeller
• Viton® or Teflon® Mechanical Seal and O-Ring – Depending on Model
• Dual Volute Design
• 1-1/2˝ NPT Suction and Discharge Ports
• Maximum Temperature
  • Bronze 200° F
  • Stainless Steel 250° F
• Maximum Flow 120 GPM
• Maximum Head 74 Ft.
• Self-Priming to 6 Ft.
• Self-Cleaning, Semi-Open Impeller
• Solids Handling and Dirty Water Design
• Maximum Working Pressure 75 PSI
• 3/4 to 2 HP Totally Enclosed Fan Cooled (TEFC) Motor Single or Three Phase Motor
