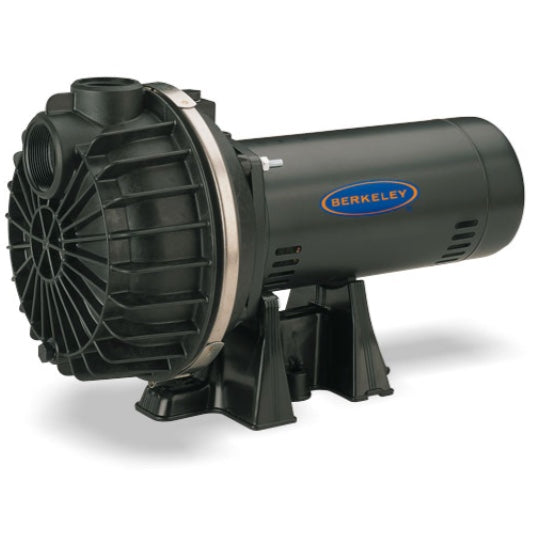

Berkeley BPDH20-L BPD Series Corrosion-Resistant Self-Priming Sprinkler Pump (2 HP, Single Phase, 115/230V)
Berkeley BPDH20-L BPD Series Corrosion-Resistant Self-Priming Sprinkler Pump (2 HP, Single Phase, 115/230V)
SKU:BPDH20-L
Couldn't load pickup availability
The Berkeley BPDH20-L BPD Series Corrosion-Resistant Self-Priming Sprinkler Pump is the preferred option for sprinkler systems and light chemical transfer. Built with fiberglass-reinforced thermoplastic for maximum corrosion resistance. This 2 HP pump and motor combination has an operating flow rate of 70 gpm at 10 psi and 5' suction lift. Designed and manufactured by Berkeley, a trusted name in the centrifugal pump and motor industry. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Specifications:
Pump Casing Material: Fiberglass Reinforced Thermoplastic
Impeller: Engineered Polymer
Voltage: 115/230V
Motor: 2 HP, Single Phase
Ports: 2" Suction x 2" Discharge NPT
Maximum Operating Flow Rate at 10 psi: 70 gpm - See Performance Chart
Duty Cycle: Continuous
Frequency: 60 Hz
Quick priming BPD Series Pumps feature lightweight construction in a self-priming design. These models offer a stronger pump body with reinforcement ribs and also a new 2" suction that is designed for the professional pump contractor.
Features:
- Quality Construction: Fiberglass reinforced thermoplastic provides total corrosion resistance and high resistance to sandy water.
- Lightweight Design: Space-age materials make these pumps more portable than conventional cast iron pumps.
- Composite Impeller: Highest performance and efficiency from ultra-smooth materials Precision-Molded for perfect balance.
- Easily Serviced: Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting.
- Dustproof Cover: Electrical components protected from dust and insects.
- Heavy-Duty Motor: Heavy-duty 1 through 2-1/2 HP motors. Designed for continuous operation.
- Stainless steel shaft.
- Dual Voltage Capability: 1 and 1-1/2 HP motors have dual voltage motors and are shipped at the 230-volt setting. 2 and 2-1/2 HP are 230-volt setting only.
- Max. Operating Pressure: 60 PSI
- Body and Base: Fiberglass reinforced thermoplastic
- Impeller: Engineered polymer
- Diffuser: Polypropylene
- Shaft: 300 grade stainless steel
Applications:
Lawn and landscape sprinkling; self-primer out of tanks or cisterns.
Light chemical transfer for compatible fluids.
