Franklin Electric 2360849566E - 6" Encapsulated MagForce™ High Efficiency Motor - Sand Fighter Type (20-30 HP, Three Phase, 460V, 120Hz, 3-Wire)

Franklin Electric 2360849566E - 6" Encapsulated MagForce™ High Efficiency Motor - Sand Fighter Type (20-30 HP, Three Phase, 460V, 120Hz, 3-Wire)

$6,591.00 USD
$10,985.00 USD $6,591.00 USD
Sale Sold out
Shipping calculated at checkout.

2360849566E

The Franklin Electric 2360849566E - 6" Encapsulated MagForce™ High Efficiency Motor - Sand Fighter Type - is powered with permanent magnet technology. Equipped with a 20-30 HP three phase motor, super stainless steel construction and Kingsbury-type thrust bearing this motor was designed to ensure your water continues to flow. Manufactured by Franklin Electric for quality and reliability when consistent performance is required. Please contact a member of Dade Pump's sales or service team for assistance in selecting the correct pump for your needs!

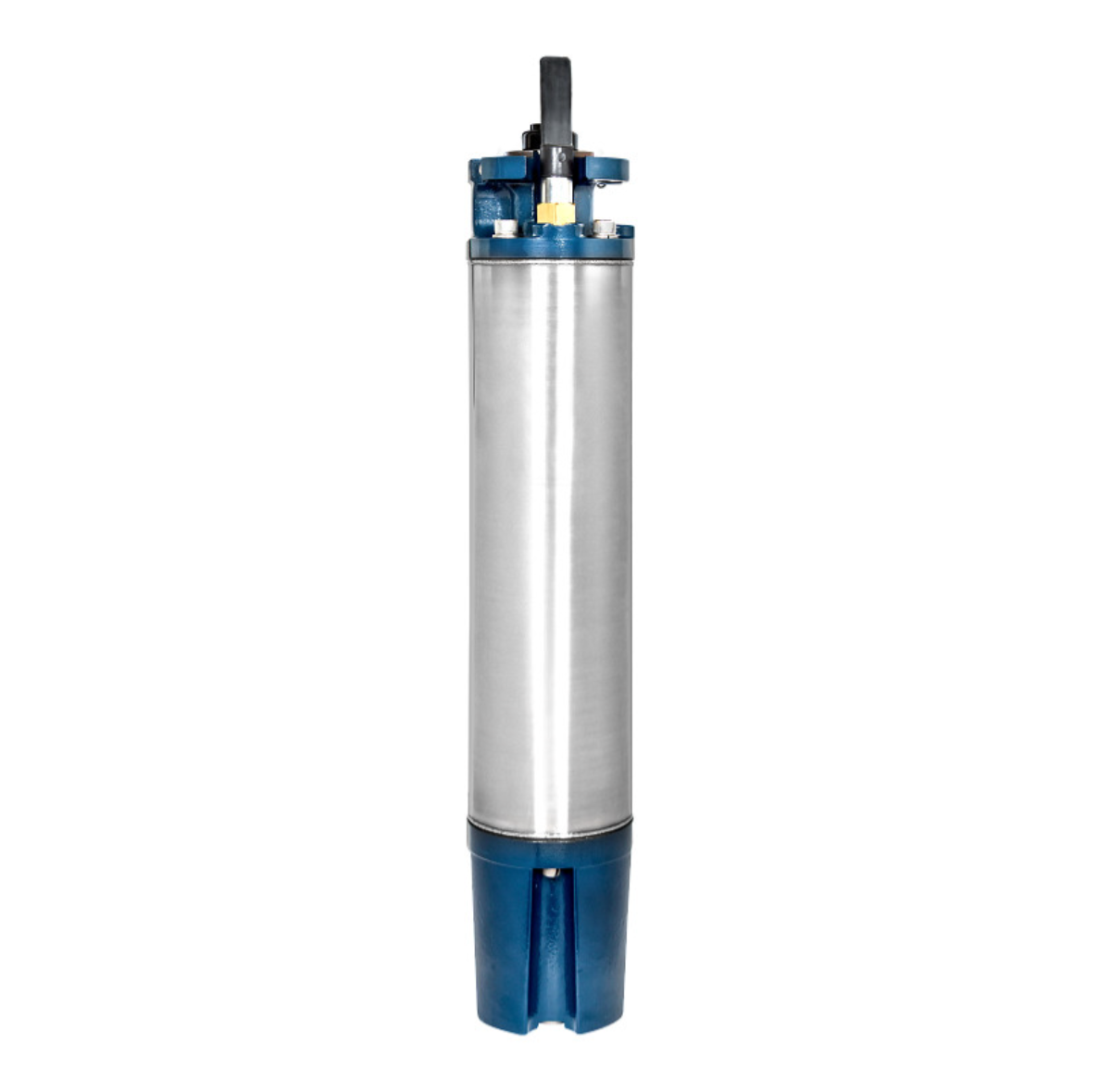

** Please Note:  Image is a stock photo and may not match exactly **

Product Specifications:

HP:  20-30

Phase:  Three

Voltage:  460

Hz: 120

Wire:  3-Wire

Motor Length:  31.24"

Weight:  134 lbs

Lead: Yes - 13'

Manufacturer Description:

Franklin Electric 6-Inch MagForce High Efficiency Motors are the next generation of submersibles powered by permanent magnet technology. Leveraging the unwavering reliability of Franklin Electric's submersible motor design, MagForce High Efficiency Motors offer improved performance over standard induction motors while also providing the features, benefits and robustness you trust for servicing water well applications.

Features and Benefits

  • GROUNDBREAKING EFFICIENCY: Powered by MagForce High Efficiency Motor with up to 92% efficiency rating that is 8-12 points (15%) greater than standard induction motor construction. Typical duty rate systems can have a payback of 1 to 2 years.
  • SLASH ELECTRICITY CONSUMPTION: Up to 14% energy savings compared to traditional induction motors.
  • SIMPLIFIED INVENTORY MANAGEMENT: Available motor options cover a wide range of pump horsepower needs (up to 60 hp) with fewer SKUs to manage.
  • SMALLER FOOTPRINT: Lighter and easier to handle than standard induction motors.
  • INTUITIVE STARTUP: When optimized and paired with a Franklin Electric variable frequency drive, expect easy startups and reliable protection for any project.
  • BUILT TOGETHER TO WORK TOGETHER: Rely on components from a single trusted source for the ultimate in operational compatibility and optimized operation.
  • FULLY SUPPORTED: Comes fully supported by the industry’s leading Technical Support professionals and Field Service Engineers.
  • Field trial data

Applications - Ideal for Long Run:

  • Groundwater remediation
  • Drainage water level control
  • Municipal/Utility water supply
  • Construction site dewatering
  • High volume and industrial livestock operations
  • Mine site dewatering and tank level control
  • Well supply geothermal HVAC systems

Basic Features:

  • High efficiency electrical desgin for low operational costs
  • Corrosion-resistant all stainless steel exterior construction
  • Stainless steel splined shaft
  • Hermetically-sealed windings
  • Anti-track self-healing resin system
  • Water lubrication
  • Filter check valve
  • Kingsbury-type thrust bearing
  • Pressure equalizing diaphragm
  • Built-in lightning arrestors
  • Continuous rating in 86° F (30 °C) water
  • Removable "Water-Bloc" lead
  • UL 778 recognized
  • CSA certified
  • ANSI/NSF 61 certified
  • NEMA mounting dimensions

Ratings
HP 120Hz 20-30 hp
Frequency 120 Hz
Phases Three-Phase
Amps - Full Load 35.3 A
Amps - Service Factor 41 A
Volts 460 VAC
Voltage Tolerance (%) -10.0% / +10.0%
Wire 3-Wire
Motor Connection DOL
Thrust Bearing Rating 3500 lb
Lead Length 13 ft
Motor Encapsulated
Continuous Duty Yes
Efficiency Service Factor Load [%] 91.70 %
Protection [IP] IP68
Lead Wire Size AWG #10
Lead Retainer Method Lead Jam Nut
Motor Insulation Classification F
Poles 4
Service Factor - 120Hz 1.15
S.F. 1.15
VFD Required YES

Operation
Motor NEMA Frame Type 6"
Motor Cooling Water
Minimum Cooling Flow .50 ft/sec
Motor Ambient Temperature Rating Nominal 86 °F
Thrust Bearing Rating 3500 lb
Motor Adapter Double flange
Rotation Counter clockwise facing the shaft
SubTrol Heat Sensor No
Winding Resistance (Main Winding) 0.33
Maximum Starts in a 1 Hour Period 20
Maximum Immersion Depth 1148.29 ft

Materials of Construction
Motor Shaft End - Material Stainless Steel 1.4462
Thrust Bearing Kingsbury Type
Seal Mechanical Seal
Lead Insulation Material EPR
Diaphragm Material Ethylene-Propylene-Diene (EPDM)
Motor Bottom End Bell Material Cast Iron with E-Coat Paint
Motor Fill Solution (Water Soluble / Non Toxic) Yes
Motor Fill Solution FES91
Motor Top End Bell Material Cast Iron with E-Coat Paint
Shaft Slinger Material Nitrile Rubber (NBR)
Stator Ends Material Carbon Steel
Stator Fill Resin
Stator/ Motor Shell Material 304 SS
Winding Material Copper

Dimensions
Motor Diameter - Physical Diameter 5.44"
Motor Length 31.24 "
Product Weight 127 lb
Product Weight with Pack 134 lb
Carton Length 42.13 "
Carton Width 6.1 "
Carton Height 8.35 "
Shaft Diameter 1 "
Shaft End Spline

Other
Minimum Order Quantity 1
Drinking Water Agency Approvals ANSI/NSF Standard 61
Electrical Agency Approvals UL
Warranty Standard Time 12 Month Install / 24 Month Manufacturing
Repair Kit Available Yes
