Franklin Electric 2640295331 - 10PM 10" Rewindable MagForce™ High Efficiency Motor - Sand Fighter Type (300 HP, Three Phase, 460V, 120Hz, 3-Wire, DOL)
Franklin Electric 2640295331 - 10PM 10" Rewindable MagForce™ High Efficiency Motor - Sand Fighter Type (300 HP, Three Phase, 460V, 120Hz, 3-Wire, DOL)
SKU:264029533
Couldn't load pickup availability
The Franklin Electric 2640295331 - 10PM 10" Rewindable MagForce™ High Efficiency Motor - Sand Fighter Type - is powered by permanent magnet technology that enables operation at a fraction of the energy consumption when compared to traditional induction designs. When optimized and paired with an innovative Franklin Electric engineered drive, users benefit from intuitive startup and reliable protection for submersible pumping applications. Please contact a member of Dade Pump's sales or service team for assistance in selecting the correct pump for your needs!

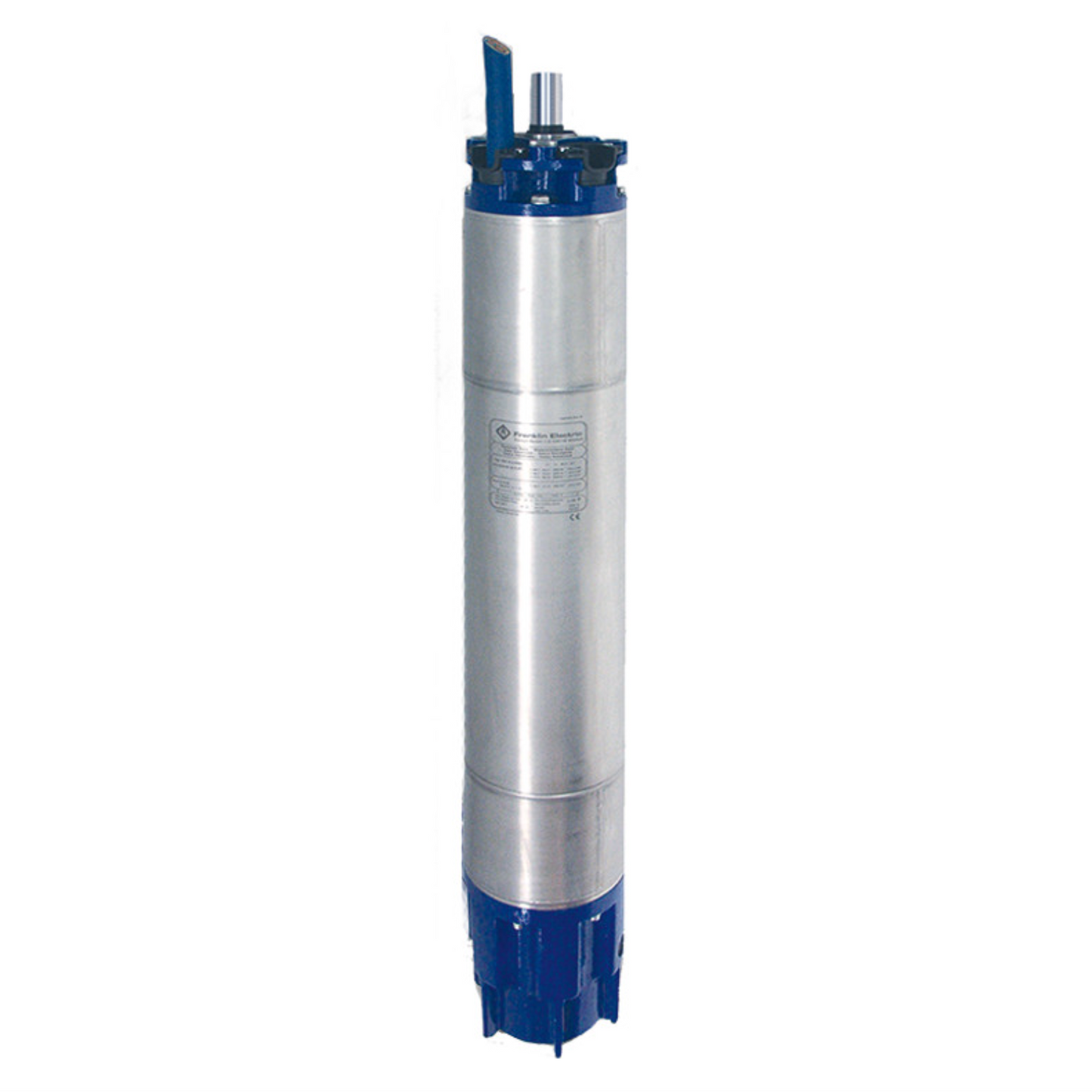

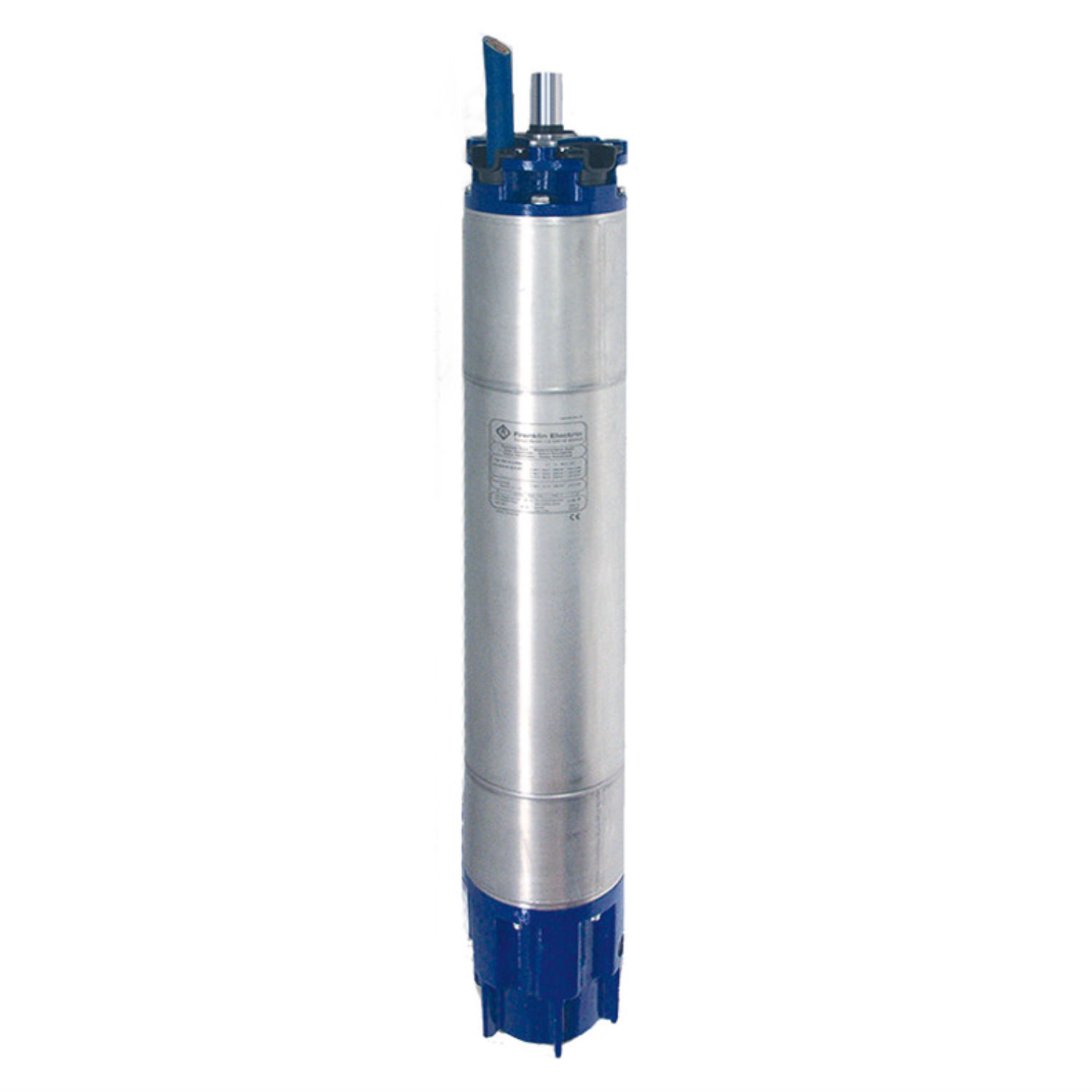

** Please Note: Image is a stock photo and may not match exactly **
Product Specifications:
HP: 300
Phase: Three
Voltage: 460
Hz: 120
Wire: 3-Wire
Motor Length: 69.65"
Weight: 882 lbs
Lead: Yes - 21'
Motor Connection: DOL
Manufacturer Description:
10" Rewindable MagForce™ High Efficiency Motors are engineered for high performance, simple startup and incredible long-term cost savings. Owners and operators benefit from electrical cost savings as a result of 94% efficiency rating in the motor for an investment payback of less than two years in typical duty rate systems*. *Results based on field trial data
Features & Benefits
- Powered by MagForce High Efficiency Motor with up to 94% efficiency rating that is 6 points (8%) greater than standard induction motor construction. Typical duty rate systems can have a payback* of 1 to 2 years.
- Up to 14% energy savings* compared to traditional induction motors.
- Available motor options cover a wide range of pump horsepower needs (up to 300 hp) with fewer SKUs to manage.
- Lighter and easier to handle than standard induction motors.
- When optimized and paired with a Franklin Electric variable frequency drive, expect easy startups and reliable protection for any project.
- Rely on components from a single trusted source for the ultimate in operational compatibility and optimized operation.
- Comes fully supported by the industry’s leading Technical Support professionals and Field Service Engineers.
- *Field trial data.
Applications: Ideal for long run
- Groundwater remediation
- Drainage water level control
- Municipal/Utility water supply
- Construction site dewatering
- High volume and industrial livestock operations
- Mine site dewatering and tank level control
- Well supply geothermal HVAC systems
Motor Specifications
- Sand Fighter® models are equipped with Franklin’s robust Sand
- Fighter sealing system for durability against sand or other abrasives.
- Max 3600 rpm (4 pole, 120 Hz); Nominal 3450 rpm (4 pole, 115 Hz)
- Maximum temperature winding wire NEMA class 200
- Standard rewindable motor with PE2/PA winding insulation
- 10" double flange mounting design
- All motors with factory installed leads, motor lead length: 19 ft
- Stainless steel shell
- Liquid lubricated radial bearings and high capacity Kingsbury type 13500 lb thrust bearing for 100% maintenance-free operation
- Pressure-equalizing diaphragm, spring pre-loaded
- Sand slinger
- Nominal ambient temperature: 86°F with 1.5 ft/s cooling flow
- Stainless steel splined shaft
- Max. storage temperature: 5°F to 140°F
- System Supply Voltage: 460/575 V (120 Hz)
- Voltage Tolerance: ± 10 % UN
- Frequency of starts: 10 starts/hour (with min. 3 minutes resting time), equally distributed
- Motor ingress protection IP68
- NSF/ANSI 61 Certified
- Motor installation orientation: Vertical / horizontal (shaft end heightened)
- Rotation counterclockwise facing shaft end (rotation reversible)
Ratings |
|
| HP 120Hz | 300 hp |
| Frequency | 120 Hz |
| Phases | Three-Phase |
| Amps - Full Load | 360 A |
| Amps - Service Factor | 423 A |
| Volts | 460 VAC |
| Voltage Tolerance (%) | -10.0% / +10.0% |
| Wire | 3-Wire |
| Thrust Bearing Rating | 13500 lb |
| Lead Length | 21 ft |
| Motor | Rewindable |
| Continuous Duty | Yes |
| Efficiency Service Factor Load [%] | 94.20 % |
| Lead Wire Size | 70 mm² |
| Motor Insulation Classification | Y |
| Poles | 4 |
| Service Factor - 120Hz | 1.15 |
| VFD Required | YES |
Operation |
|
| Minimum Cooling Flow | 1.5 ft/sec |
| Motor Ambient Temperature Rating Nominal | 86 °F |
| Thrust Bearing Rating | 13500 lb |
| Motor Adapter | Double flange |
| Rotation | Counter clockwise facing the shaft |
| SubTrol Heat Sensor | No |
Materials of Construction |
|
| Motor Shaft End - Material | Stainless Steel 1.4462 |
| Thrust Bearing | Kingsbury Type |
| Seal | Mechanical Seal |
| Diaphragm Material | Ethylene-Propylene-Diene (EPDM) |
| Motor Bottom End Bell Material | Cast Iron with E-Coat Paint |
| Motor Fill Solution (Water Soluble / Non Toxic) | Yes |
| Motor Fill Solution | FES93 |
| Motor Top End Bell Material | Cast Iron with E-Coat Paint |
| Shaft Slinger Material | EPDM |
| Stator Ends Material | Carbon Steel |
| Stator Fill | Water/Propyleneglycol |
| Stator/ Motor Shell Material | 304 SS |
| Winding Material | Copper/ PE2/PA |
Dimensions |
|
| Motor Diameter - Physical Diameter | 9.25" |
| Motor Length | 69.65 " |
| Product Weight | 772 lb |
| Product Weight with Pack | 882 lb |
| Carton Length | 88.2 " |
| Carton Width | 13.4 " |
| Carton Height | 20.2 " |
| Shaft End | Keyed |
Other |
|
| Drinking Water Agency Approvals | ANSI/NSF Standard 61 |
| Electrical Agency Approvals | UL |
| Warranty Standard Time | 12 Mo. from Date of Install / 24 Mo. from Date of Manufacturing |
