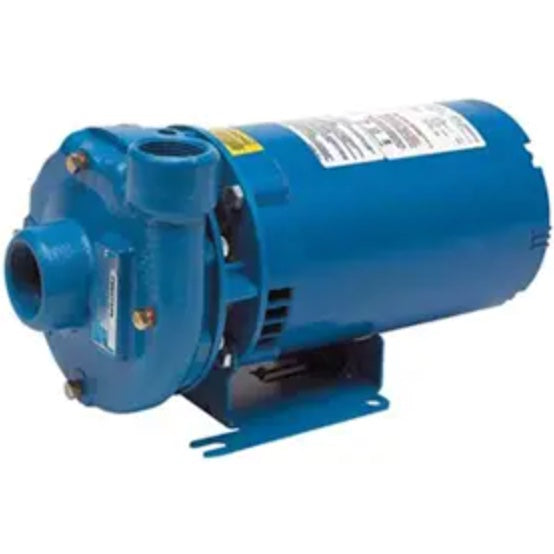

Goulds 1BF50512 Series 3642 Bronze Fitted Centrifugal Pump (1/2 HP, Single Phase, 115/230V, TEFC)
Goulds 1BF50512 Series 3642 Bronze Fitted Centrifugal Pump (1/2 HP, Single Phase, 115/230V, TEFC)
SKU:1BF50512
Couldn't load pickup availability
The Goulds 1BF50512 Series 3642 Bronze Fitted Centrifugal Pump is the preferred option for liquid transfer, water circulation, filtration, booster service and many other applications. Operating with maximum efficiency at 20 gpm, this 1/2 HP pump and electric motor combination offers reliable performance. Designed and manufactured by Goulds Water Technology, a trusted name in the industry. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 1/2 HP, Single Phase, TEFC
Impeller Material: 3-3/16", Bronze
Ports: 1-1/4" Suction x 1" Discharge NPT
Operating Flow Rate: 20 gpm - See Performance Chart
Maximum Head: 52'
Maximum Water Temperature: 212 Degrees F
Duty Cycle: Continuous
Frequency: 60 Hz
The 3642/3742 Centrifugal Pumps are available in close-coupled and frame mounted designs and feature a range of material and construction options to meet residential and commercial applications demands. They are specifically designed for water circulation, booster service, liquid transfer, spraying systems, jockey pump service and general-purpose pumping.
Features:
Compact Design: Close coupled, space saving design provides easy installation. Flexible couplings and bedplates not required.
Mounting: Can be mounted in vertical or horizontal position. Construction: Available in bronze fitted (BF), all iron (AI), or all bronze (AB). Bronze fitted means bronze impeller.
Impeller: Enclosed design for high efficiencies. Threaded directly on motor shaft. Stainless steel locknut on three phase models requires no clearance adjustments. Balanced for smooth operation.
Casing: Volute type, cast iron or brass construction. Back pullout design. Discharge can be rotated in eight positions. Vertical discharge standard. Tapped openings provided for priming, venting and draining.
Mechanical Seal: Standard carbon/ ceramic faces, BUNA elastomers, 300 series stainless steel components. Option seals available.
Motor: Close-coupled design. Ball bearings carry all radial/axial thrust loads. Designed for continuous operation. All ratings are within working limits of the motor.
Frame-Mounted Design: Offers flexibility of installation and driver arrangements. Cast Iron Power Frame rigidly supports the grease-for-life ball bearing shaft assembly.
