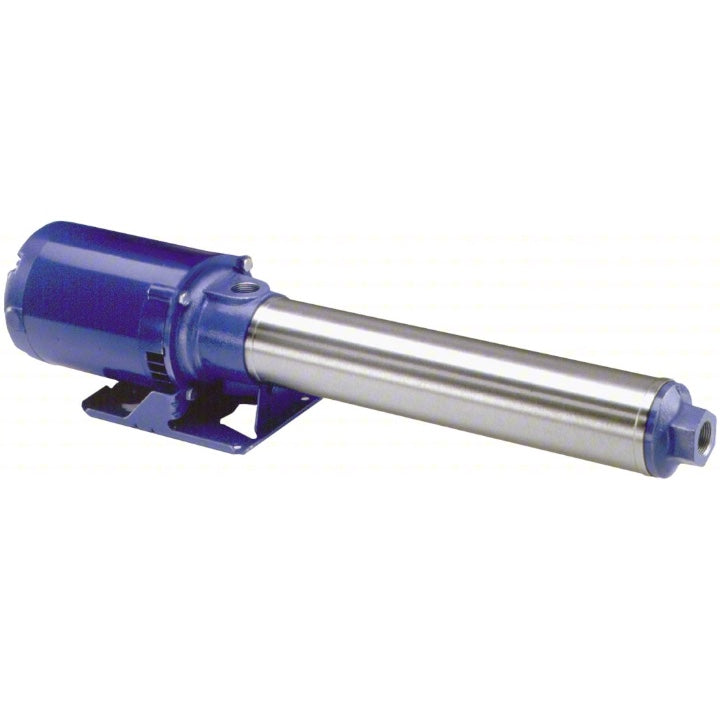

Goulds 25GBC30 Multi-Stage Booster Pump (3 HP, Single Phase, 208-230V)
Goulds 25GBC30 Multi-Stage Booster Pump (3 HP, Single Phase, 208-230V)
SKU:25GBC30
Couldn't load pickup availability
The Goulds 25GBC30 Multi-Stage Booster Pump is the preferred option for commercial and agricultural wash down, water circulation, filtration, booster service and many other applications. Operating with maximum efficiency at 25 gpm this 14 stage, 3 HP pump and electric motor combination offers reliable performance. Designed and manufactured by Goulds Water Technology, a trusted name in the industry. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Pump Casing Material: Cast Iron
Voltage: 208-230V
Motor: 3 HP, Single Phase, ODP
Stages: 14
Impeller Material: Glass filled Poly
Ports: 1" NPT
Operating Flow Rate: 25 gpm - See Performance Chart
Maximum Water Temperature: 160 Degrees F
Duty Cycle: Continuous
Frequency: 60 Hz
Features:
Multi-stage Design: Provides steady, quiet, vibration free, operation.
Optional Stainless Steel Construction: Standard cast iron for general service or stainless for filtration applications.
O-Ring Casing Seal: Reliable high pressure sealing with easy disassembly for maintenance or repair.
Impellers and Diffusers: Glass filled engineered composite material with a fixed impeller design. High resistance to corrosion and abrasion.
Bowls: 300 stainless steel rabbit lock for positive alignment with no gaskets required.
Variable Capacity: Centrifugal pump design permits selection of flow within a range for each size.
Mechanical Seal: A variety of face materials and elastomers to match application needs.
Motors: Close coupled NEMA 56J motors in open drip proof or totally enclosed design. Single phase and three phase available. Ball bearings carry all radial and axial thrust loads. Designed for continuous operation.
SPECIFICATIONS
Pump
• Maximum suction (inlet) pressure: 75 PSI.
• Maximum Liquid Temperature: 160º F (71º C).
• Rotation: Clockwise when viewed from motor end.
• Maximum lift with foot valve: 10 ft., check NPSH curve.
Motor:
• NEMA standard 56J frame.
• Open drip proof or totally enclosed fan cooled enclosures available as standard. Consult factory for other options.
• 60 Hz, 3500 RPM. Single phase (115/230 V), three phase 208-230 (3 HP, 230 V) or three phase (208- 230/460 V).
• Single phase motors have built-in capacitor and overload with automatic reset.
Note: For three phase motors, Class 20 overload protection must be provided in starter unit. Starter with overloads must be ordered separately
APPLICATIONS • Residential, commercial or agricultural pressure wash • Reverse osmosis • Evaporative cooling systems/misters • Booster service • Spray systems • Water circulation • Filtration • HVAC • General purpose pumping
