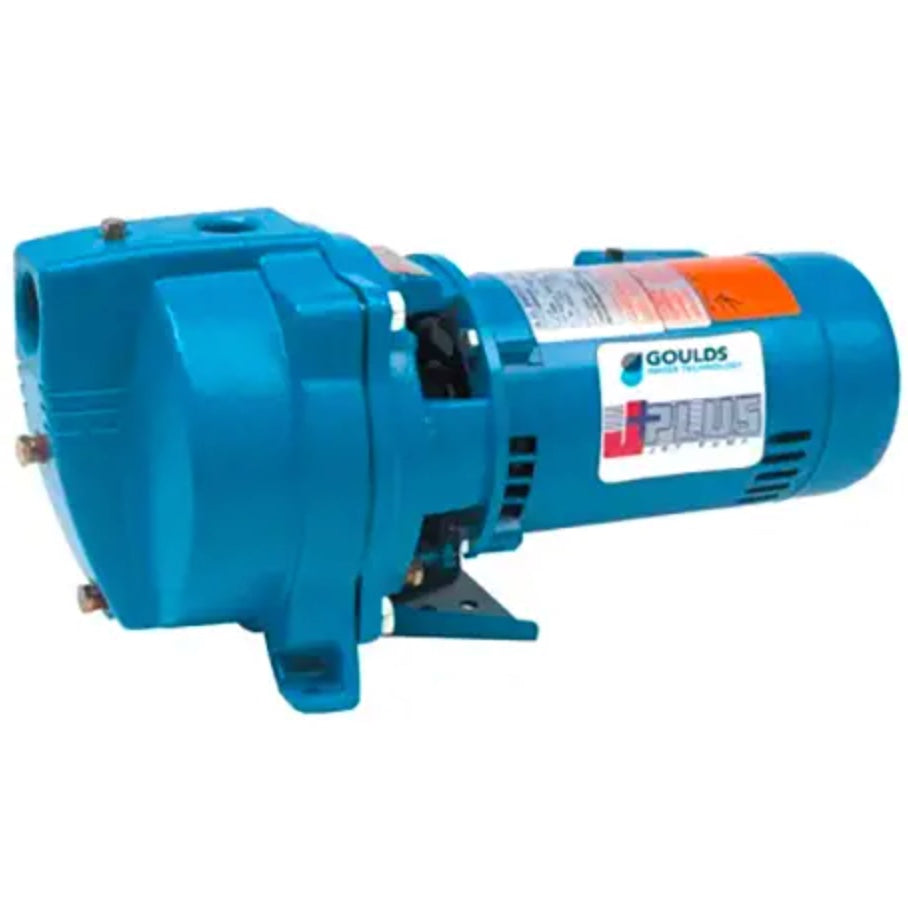

Goulds J10S JS+ Series Shallow Well Jet Pump (1 HP, Single Phase, 115/230V)
Goulds J10S JS+ Series Shallow Well Jet Pump (1 HP, Single Phase, 115/230V)
SKU:J10S
Couldn't load pickup availability
The Goulds J10S Shallow Well Jet Pump is specifically designed for boosting water for residential homes and cottages. This series is NSF Listed ensuring your safety. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by Goulds Water Technology, a trusted name in the industry.
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 1 HP, Single Phase
Impeller Material: Glass-Filled Engineered Composite (FDA Compliant)
Ports: 1-1/4" NPT Suction x 1" NPT Discharge
Maximum Operating Flow Rate: 24.8 gpm - See Performance Chart
Maximum Water Temperature: 140 Degrees F
Duty Cycle: Continuous
Speed: 3500 rpm
Frequency: 60 Hz
Goulds Water Technology offers a robust line of shallow well Jet Pumps, ideal for delivering and boosting water in residential home, cottage and booster service applications. Withstanding rigorous testing, these jet pumps provide industry-leading benefits and are backed by over 170 years of dedicated service and support. Rely on a shallow well jet pump from Goulds Water Technology for trusted performance right out of the box.
- Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter.
- Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping.
- Two compartment motor for easy access to motor wiring and replaceable components.
- Nozzle clean out plug in pump case.
- Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning. Premium O-ring design fittings need only be hand tight to seal.
- Impeller: F.D.A. compliant, glass filled engineered composite. Corrosion and abrasion resistant.
- Diffuser (Guidevane): Bolt down diffuser provides positive alignment with impeller. Diffuser also has stainless wear ring for extended performance in abrasive conditions. F.D.A. compliant, injection molded, food grade, glass filled engineered composite for durability and abrasion resistance.
- Tubing and Fittings: F.D.A. compliant engineered plastic is corrosion and U.V. resistant.
- Powered for Continuous Operation: Pump ratings are within the motor manufacturer’s recommended working limits. Can be operated continuously without damage.
- Corrosion Resistant: Electro-coated paint process is applied inside and out, then baked on.
- Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry.
- Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. Pumping resumes once the water level rises above the foot valve.
- NSF Listed: The first NSF listed jet pumps in the industry. All jet pumps and shallow well components only, deep well components are not listed.
- Pressure switch: AS4 preset (30-50 PSI)
- Built-in overload with automatic reset
- Stainless steel shaft
- Rotation: clockwise when viewed from motor end
- UL778 listed
- NEMA standard
