Hannay HDD6220-45-46-16 Hydraulic Direct Drive Sewer Cleaning Reel (3000 PSI)

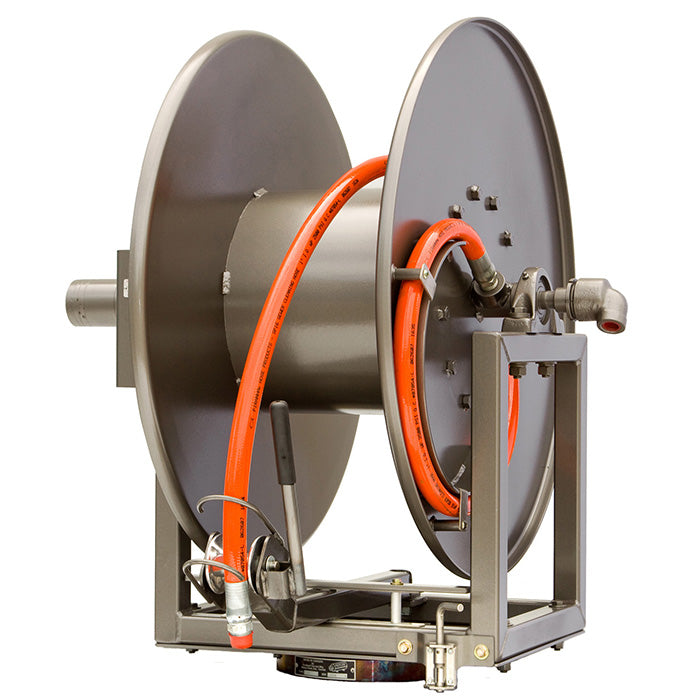

Model shown in image above represents standard configuration of an HDD6200 series reel (multiple models available) with optional guide arm, TMI joint and heavy duty swivel base. Hose not included.

Hannay has long been the industry standard in the sewer cleaning, jetter and vacuum truck industries. The HDD6220-45-46-16 is a hydraulic direct drive power rewind reel used by commercial professionals. This model can hold up to 500' of 3/4" ID or 300' of 1" ID hose. Distance between the discs is 11.5" and total height is 29". This reel has a weight of 543 lbs and requires LTL shipping. Please contact a customer service representative for assistance with shipping or selecting the correct hose reel for your needs.

To handle single 3/4" through 1" I.D. hose.

Water Blasting / Sewer Cleaning / Rodding

This reel is designed with external hose connection to allow tightening of hose connection without removing all hose from the spool. The optional hose guide arm along with the optional swivel base, allow precise payout of hose from the reel.

           Features:

• Direct drive hydraulic motor (no chain and sprocket maintenance).
•  1" swivel joint with 1" FNPT threads.
• Heavy-duty spool and frame design.
• Steel hub assembly – rated to 3000 psi (207 bar).
• Standard fluid temperatures from -40° F to +250 °F (-40° C to +121° C). Optional temperature ratings available - consult factory.
• Other models and capacities are available upon request.


  Options:

• Swinging guide arm with roller and operator handle.

• Rotating ball bearing swivel base.

• Heavy-duty pin lock in base for locking in multiple locations.

• 1" swivel joint with adjustable packing.

• Available up to 6000 psi (414 bar) – must specify
