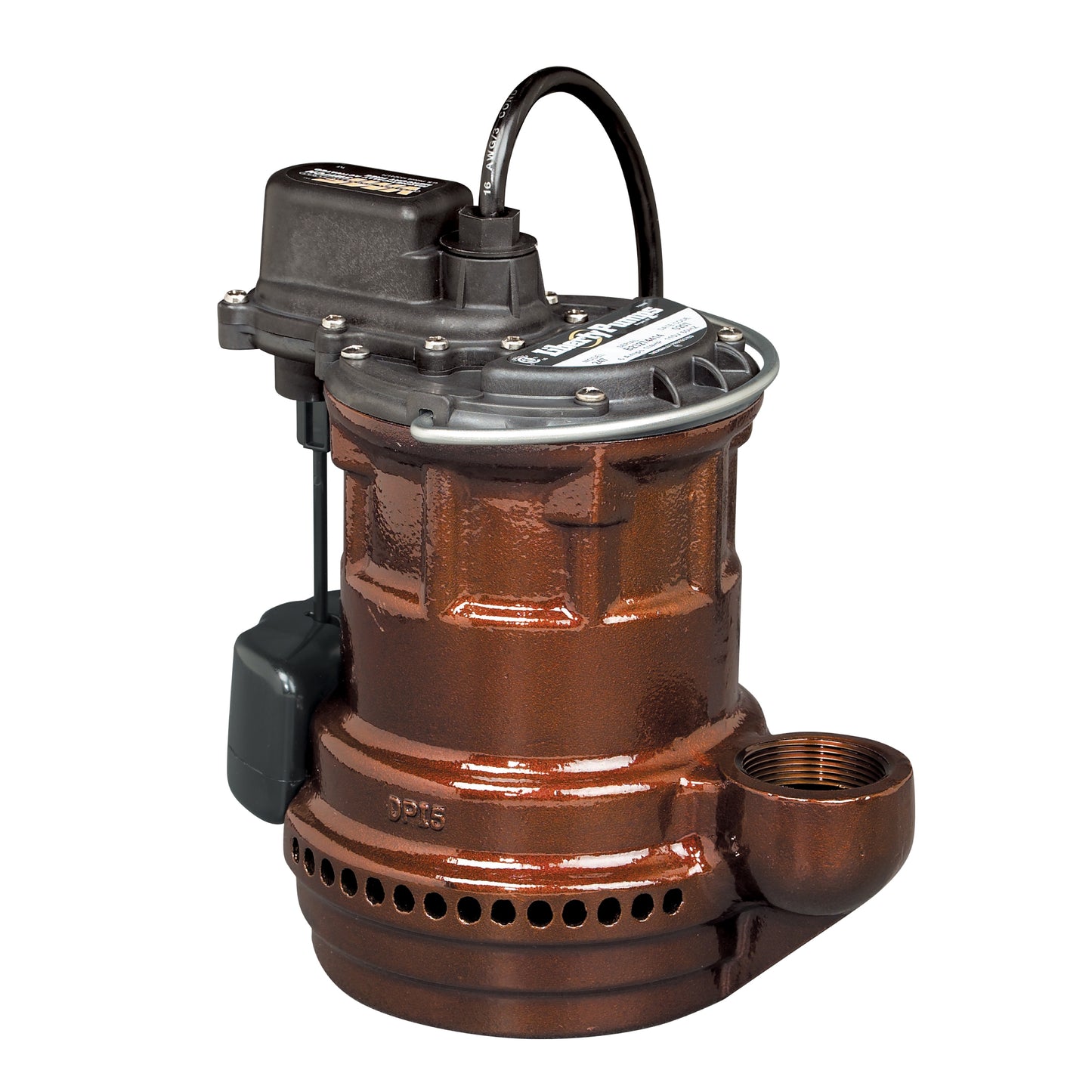

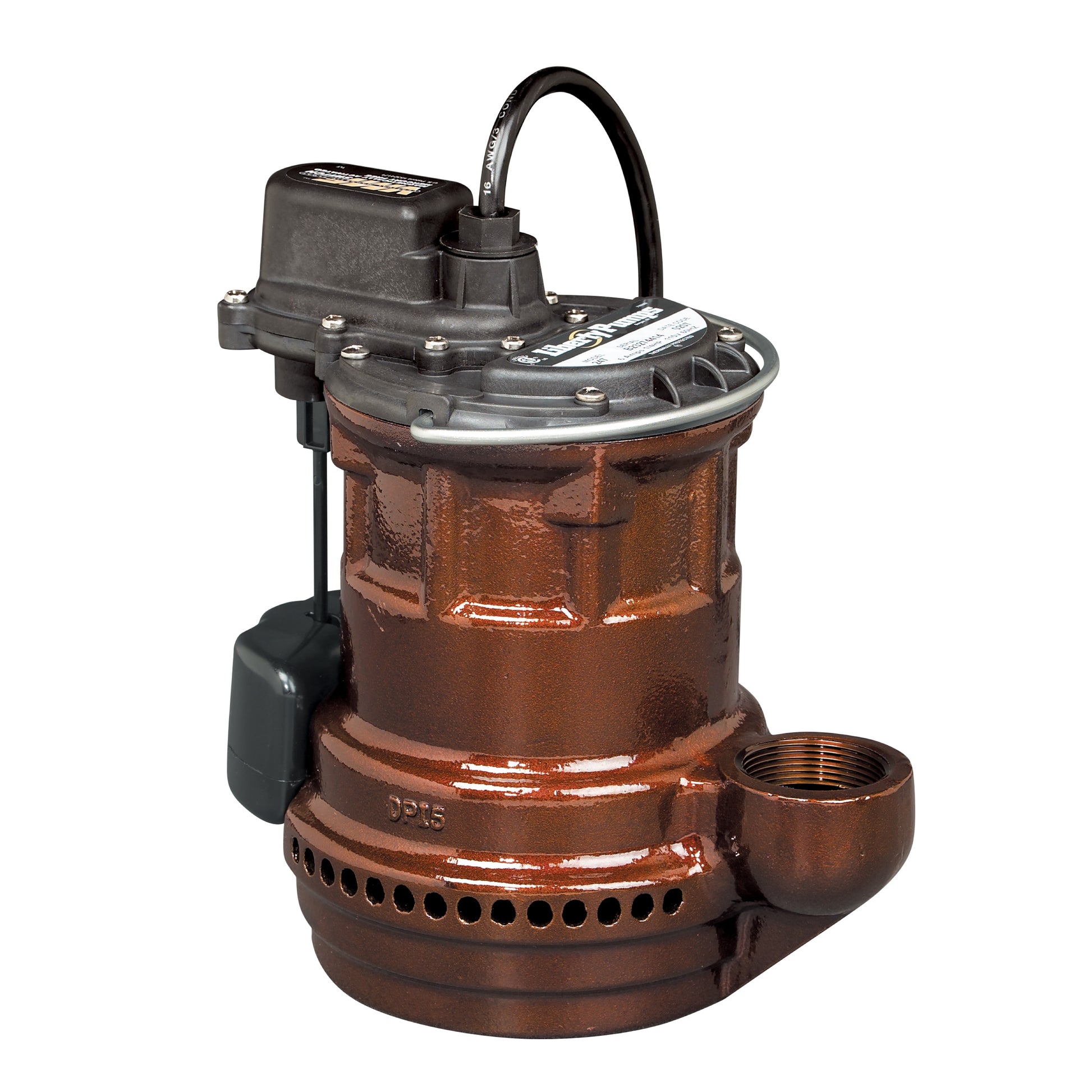

Liberty 240-2 Cast Iron Submersible Sump Pump (1/4 HP, Single Phase, 115V, Manual, 25' Cord)

The Liberty Model 240-2 from the 240-Series Cast Iron Submersible Sump Pump line is made with a one-piece housing to reduce jamming from debris. Designed and manufactured by Liberty Pumps, a trusted name in the industry for quality and reliability. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

1/4 hp
1-1/2" Discharge
1/4" Solids handling

One of the most advanced 1/4 hp sump pumps available, Liberty Pumps 240-Series features a unique one-piece cast iron housing with peripheral port suction. This design eliminates the motor seal ring and helps reduce potential jamming from debris. Other features on the 240-Series include a quick-disconnect power cord and Liberty Pumps VMF switch technology for smaller sump pits (Model 247).

Specifications:

Operation:  Manual

Voltage:  115V

Motor:  1/4 HP, Single Phase

Amps:  6

Housing:  Cast Iron

Impeller Material:  Thermoplastic

Shaft:  Stainless Steel

Discharge:  1-1/2"

Maximum Head:  21'

Cord:  25'

Duty Cycle:  Continuous

Temperature:  140°F (60°C) Intermittent 104°F (40°C) Continuous duty

Max RPM:  3400

Frequency:  60 Hz

Features:

• Rugged 1/4 hp motor, oil-filled with thermal overload protection
• 1/4" Solids handling
• 1-1/2" Discharge
• Hermetically sealed motor and switch cavities, permanently lubricated bearings
• Liberty Pumps UNI-BODY casting – a solid, one-piece housing that eliminates the lower motor seal ring found on other pumps
• Integral, mid-mounted “peripheral-port” inlets eliminate bottom suction of debris and foreign materials
• Stainless-steel volute intake plate, internally mounted. Will not corrode
• 8 Vane, glass-reinforced thermoplastic impeller non-clog design
• Quick-connect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor (25' length optional)
• For 25' cord option, add a “-2” suffix to model number Example: 247-2 for Model 247 with 25' cord
• Non-corrosive stainless-steel fasteners
• Stainless-steel rotor shaft
