Liberty 2460LSG202-36 Omnivore® Pre-Assembled Simplex Grinder Package (2 HP, 24" x 60" Basin, 36" Discharge Depth, 208/230V, Single Phase)

The Liberty 2460LSG202-36 Omnivore® Pre-Assembled Simplex Grinder Package is designed with you in mind. The system is delivered ready to install with pre-mounted float switches for pump control and alarm. This model has a 2 HP grinder pump, 24" diameter x 60" height basin and is equipped with an SX-Series control panel. Designed and manufactured by Liberty Pumps. There are many options available in this series - please contact a Dade Pump / De Ruiter Electric Motor Company sales representative for assistance in selecting the correct grinder package for your needs.

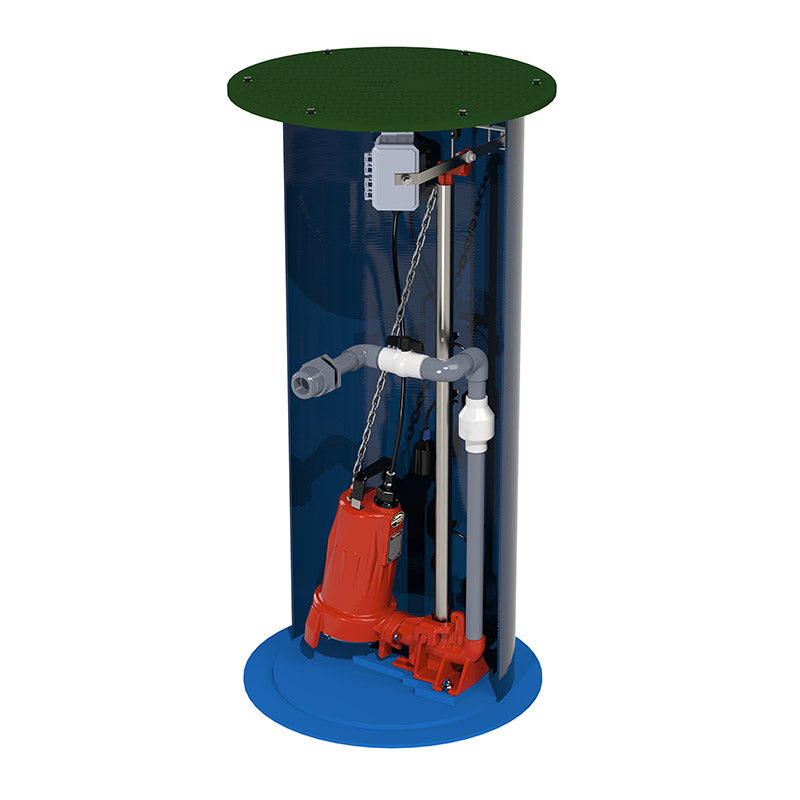

**Picture is stock photo and may not match exactly**

For residential and commercial applications, the 2460LSG is a complete factory assembled simplex grinder package featuring the LSG200-Series 2 hp Omnivore® grinder pump. All internal brackets, all floats - QuickTree® float assembly, GR20 guide rails, guide rail base and discharge piping is pre-installed at the factory saving hours of labor at the job site.

Specifications:

• Basin Dimensions:  24" Diameter x 60" Height
• Discharge Depth:  36" From Top of Basin
• HP:  2
• Discharge:  1-1/4"
• Voltage:  208/230
• Cable Length:  25'
• Phase:  Single
• Total Basin Capacity:  118 Gallons
• Weight:  230 lbs
• Panel:  SXH24-3

2400-Series Simplex Grinder Package Features:

• Pre-mounted float switches for pump control and alarm
• 4" Fiberglass hub with 4" rubber pipe seal
• 1-1/4" Discharge • Factory pre-assembled guide rail system
• Integral check valve
• Galvanized guide rail pipe (stainless optional)
• Factory pre-assembled Schedule 80 PVC discharge piping with ball valve
• Fiberglass basin with anti-flotation collar
• Structural foam cover
• 1000 lb. load rating (steel optional)
• All stainless-steel supports and brackets pre-mounted
• NEMA 4X junction box for electrical connections, pre-mounted
• Stainless-steel chain for pump lift-out
• 2 hp Grinder Pump
• Choose from LSG or LSGX-Series pumps
• Available in a wide range of voltages
• 1-1/4" Discharge
• 25' Power cable length

SX-Series Panel Features (Standard on Systems with Heights of 60", 72", 84" or 96"):

• HOA Switch
• NEMA 4X enclosure
• Circuit Breaker
• Visual and Audible alarm
• Pump run indicator lights
• Auxiliary contacts
• Three level control float switches

IP-Series Panels (Optional):

IP-Series control panels incorporate the latest programmable pump features through a simple, easy-to-use touchpad on the inner door. Now pump programming and system monitoring is easier than ever.

• NEMA 4X weatherproof enclosure for indoor or outdoor mounting
• Floatless level sensor is compact and eliminates multiple wide-angle float switches for controlling pump
• Redundant “ALARM” float switch included for added security
• Easy-to-use touchpad for programming pump on/off levels and alarm level in inches or centimeters
• Inner panel door provides increased safety
• Separate control and alarm fuses
• Digital display board for system monitoring
• Alarm beacon and horn provide audio/visual warning of alarm condition
• Test/Normal/Silence switch
• Auxiliary contacts
• Panel is field convertible for either demand dose or timed dose applications
