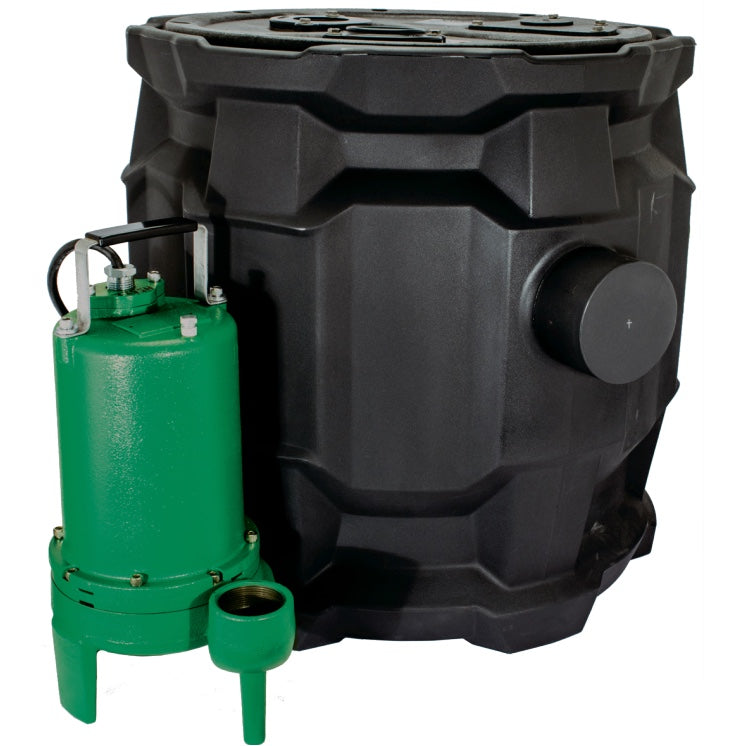

Myers SB24VRS10 24"x24" Pre-Plumbed Grinder Package (1 HP, Single Phase, 115V, 20' Cord)

Myers SB24VRS10 24"x24" Pre-Plumbed Grinder Package (1 HP, Single Phase, 115V, 20' Cord)

$2,551.00 USD
$4,480.00 USD $2,551.00 USD
Sale Sold out
Shipping calculated at checkout.

SB24VRS10

The Myers SB24VRS10 24"x24" Pre-Plumbed Grinder Package is the perfect option to collect sewage and effluent - easily installed in your basement floor. Pentair tests all products before they leave the factory allowing you to purchase and install with confidence. Designed and manufactured by Pentair Myers, a trusted name in the industry.

The Myers 24” x 24” Sewage Basin is designed to be installed in a basement floor to collect sewage or effluent water from toilet, washer, dishwasher or a sink so that it can be pumped away with a sump pump or sewage pump.

Features: 
  • Pre-Assembled From Factory: For quick and easy installation. 
  • Cast Iron Sewage and Grinder Pumps: For high performance. 
  • Robust Polyethylene Structure: For superior durability. 
  • Specially Designed Bottom Grooves: For easy leveling in rough soil. 
  • Molded Torque Stops: Keep pump in place. 
  • 38.5 Gallon Capacity: For longer pump cycles prolonging the pump life. 
  • 5 Additional Flats: For adding or changing inlet pipe location.

Specifications: 

  • Motor HP: 1 HP 
  • Maximum Pump Capacity: 52 GPM (185 LPM ) 
  • Maximum Shut-Off Head: 60’ (18.6 m) 
  • Discharge: 2” 
  • Volts: 115, 230 
  • Full Load Amps: 13.0 (115V), 7.0 (230V) 
  • Phase: Single  Cord Length: 20’ (6.1 m) 
  • Switch Options: PRE-T 
  • Pump Impeller Material: Thermoplastic 
  • Pump Housing Material: Cast iron 
  • Pump Volute Material: Cast iron 
  • Basin Material: Polyethylene 
  • Basin Dimensions (W x H): 24” x 24” (609 mm x 609 mm) 
  • Basin Capacity: 38.5 Gallons (145.7 Liters) 
  • Lid Material: Polyethylene 
  • Warranty Years: 3 years with start-up report
