Pearl MNP160V 44 Gallon Steel Pressure Tank

Pearl MNP160V 44 Gallon Steel Pressure Tanks are built with an FDA approved polypropylene internal lining and polyurethane based external paint to last many years in your booster or irrigation system. Dade Pump / De Ruiter Electric Motor is an authorized distributor and repair center for Pearl and all PD Water System products. Please contact a customer service representative for assistance in selecting the correct tank for your system.

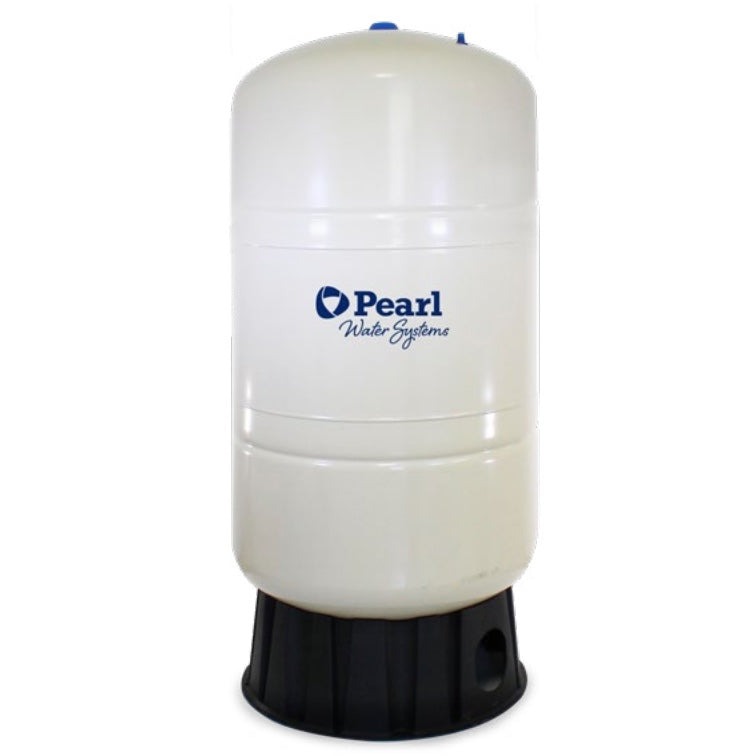

Picture is stock photo - confirm model number with customer service.

Specifications:

Vertical Model with Base

Tank Material:  Steel

Tank Capacity:  44 Gallons

Connection:  1-1/4" SS Female 90 Degree

Dimensions:  21.7" Diameter x 36.7" Height

Weight:  62 lbs

Series Information:

The MNP Series has been designed for a wide range of applications, including hydropneumatic systems, booster systems, irrigation systems, and reduction of water hammer effects.

The MNP Series tanks, made of steel, have an internal lining of virgin polypropylene and a chlorobutyl membrane, certified by the FDA. The membrane is fixed to the tank wall thanks to a steel ring. A bronze valve sealed with a plug and an “OR” ring that prevents air from escaping.

The external coating of the MNP Series tanks, with almond colored polyurethane paint on an epoxy base, provides hundreds of hours of protection against UV rays and in ambient aggressive like saline.

Features:

• Fixed Butyl membrane
• Stainless steel water connection
• Internal lining in virgin polypropylene
• Finished with polyurethane paint on epoxy base
• Air valve plug sealed with O-ring anti leak
• Do not require maintenance.
• Maximum Working Pressure: 150 PSI / 10 bar.
• Maximum working temperature of water: 90 ° C.
• IAPMO R&T, ACS, CE certifications.
• Factory preload in Nitrogen (N2) for its operation.
• 100% Factory Tested.
