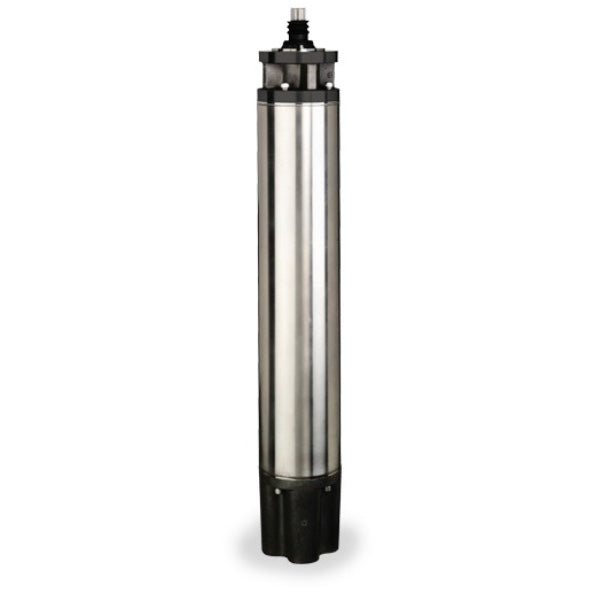

Pentair Pentek® XE-6 P60A0050A2 6" Submersible Motor (5 HP, Single Phase, 230V, 60 Hz, 3450 RPM)

The Pentair Pentek® XE-6 P60A0050A2 6" Submersible Motor features an exclusive advanced protection system from sand and debris intrusion. This is a 5 HP, Single Phase 230V motor. Outstanding performance, minimum downtime and low energy consumption make the XE-6 and XE-8 series one of the must trusted in the industry. Designed and manufactured by Pentair for quality and reliability when optimal and reliable performance is required. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

Please Note:  Image is a stock photo and may not match exactly

Motor Specifications:

Motor Shell Material:  304 SS

Voltage:  230V

Motor:  5 HP, Single Phase

Speed:  3450 RPM

Insulation:  Class F

Full Load Amps:  22.8

Delivers outstanding performance through lower amp draw and higher efficiencies, which yield lower operating costs. Combined with many durable, innovative and advanced design features, Pentek XE-6 and XE-8 are the perfect solution for your submersible motor needs.

• Exceptional insulation rating (Class F) and temperature rating (95 F / 35 C)
• IP68 protection rating
• VFD-compatible
• Vertical or horizontal operation

Series Features:

• Shaft - 17-4 stainless steel
  • High strength, high corrosion resistance
  • Outstanding mechanical properties at high temps
  • NEMA splined - spline detail includes chamfered edges for easier assembly to the pump
• Motor casing - 304 stainless steel
  • The most versatile and widely-used stainless steel
  • Optimal forming and welding characteristics
  • Excellent corrosion resistance
• Upper and lower bracket
  • Epoxy-coated cast iron coating is TNEMEC 140
  • NSF-certified coating
• Upper bracket - dual-flange design
  • Faster and easier assembly to the pump
• Motor lead - XLPE
  • 17' - potted connection, including ground wire
  • Non-jacketed wire assembly for easier handling and connections
  • Fully field replaceable
• Thrust bearing
  • Water-lubricated, Kingsbury-type
  • Thrust ratings are between 3% and 35% better than leading 6" submersible motors
• Pressure equalizing diaphragm
  • Utilizes static pressure to regulate internal pressure and minimize expansion pressure
  • Springless design - less parts, less complexity
