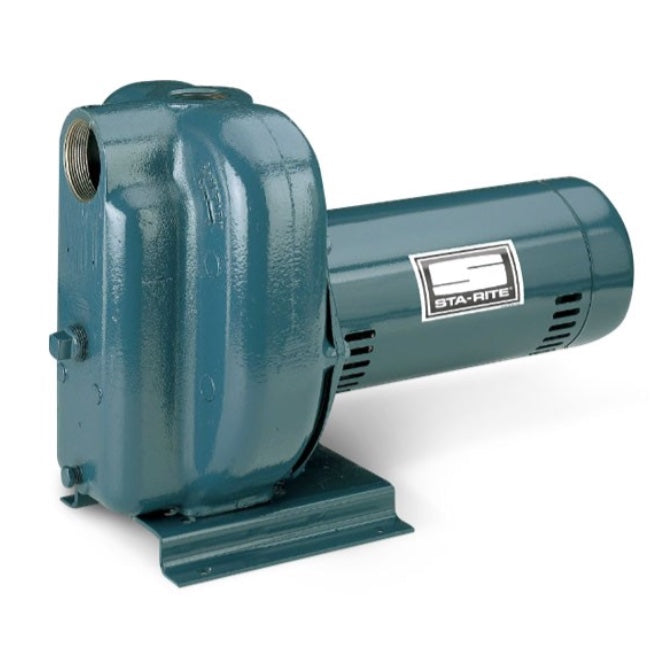

Sta-Rite DS2HE-191PL DS2 Series Self-Priming Centrifugal Pump (1 HP, Single Phase, 115/230V)
Sta-Rite DS2HE-191PL DS2 Series Self-Priming Centrifugal Pump (1 HP, Single Phase, 115/230V)
SKU:DS2HE-191PL
Couldn't load pickup availability
The Pentair Sta-Rite DS2HE-191PL DS2 Series Self-Priming Centrifugal Pump is the preferred option for sprinkler systems, dewatering, jetting, agriculture, sump drainage and water transfer and removal. Built with a cast iron case for durability and corrosion resistant impeller for longevity. This 1 HP pump and motor combination has an operating flow rate of 46 gpm at 20 psi and 5' suction lift. Designed and manufactured by Sta-Rite, a trusted name in the centrifugal pump and motor industry. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Specifications:
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 1 HP, Single Phase
Ports: 2" Suction x 1-1/2" Discharge NPT
Maximum Operating Flow Rate at 20 psi: 46 gpm - See Performance Chart
Maximum Head: 92'
Duty Cycle: Continuous
Frequency: 60 Hz
Fast-priming DS2 Series pumps in 1 through 2-1/2 HP models, with a low-friction Lexan® or Noryl® impeller. These high head pumps feature leakproof mechanical seals, easy service design, heavy-duty motors and rugged construction. Self-priming after initial filling with water.
Features:
- Rugged Construction: Heavy-duty motors, easy service design
- Drain Port: Provided for easy winterizing
- High Head Models: Delivers up to 145' of head with capacities to 95 GPM
- Easy Serviceability: Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting
- Heavy-Duty Motors: Designed for continuous operation. Capacitor start, will not cause electrical interference with TV or other appliances. Nationally known motors have ball bearing, stainless steel shaft. For single and three-phase operation, 3450 rpm
- Body and Base: Close-grained cast iron
- Impeller: Lexan® or Noryl®
- Diffuser: Polypropylene
- Shaft: Stainless Steel
Applications:
Lawn sprinkling: Pumps can be safely operated by timer or other automatic device
Contractors: For dewatering excavation, jetting, water transfer and supply
Agriculture: Seed bed and plot irrigation, stock watering, fire protection
Industrial: Sump drainage, fire protection, marine pumping, liquid transfer and supply operations
