Sta-Rite DS3HHG3-01 DS3 Series Pro-Storm Medium Head Centrifugal Pump (2-1/2 HP, Three Phase, 208-230/460V)
Sta-Rite DS3HHG3-01 DS3 Series Pro-Storm Medium Head Centrifugal Pump (2-1/2 HP, Three Phase, 208-230/460V)
SKU:DS3HHG3-01
Couldn't load pickup availability

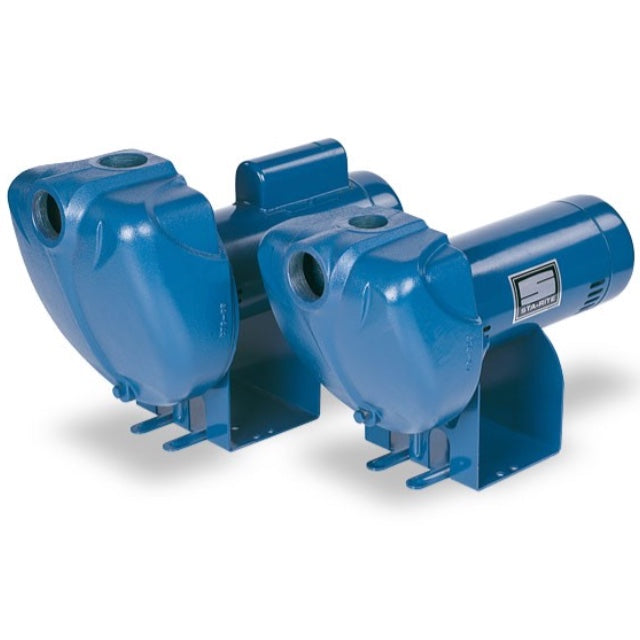

The Pentair Sta-Rite DS3HHG3-01 DS3 Series Pro-Storm Medium Head Centrifugal Pump is the preferred option for sprinkler systems, dewatering, jetting, agriculture, sump drainage and water transfer and removal. Built with a cast iron case for durability and Noryl impeller for maximum efficiency. This 2-1/2 HP pump and motor combination has an operating flow rate of 83 gpm at 20 psi and 5' suction lift. Designed and manufactured by Sta-Rite, a trusted name in the centrifugal pump and motor industry. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Specifications:
Pump Casing Material: Cast Iron
Voltage: 208-230/460V
Motor: 2-1/2 HP, Three Phase
Ports: 2" Suction x 2" Discharge NPT
Maximum Operating Flow Rate at 20 psi: 83 gpm - See Performance Chart
Maximum Head: 115'
Duty Cycle: Continuous
Frequency: 60 Hz
The Pro-Storm™ Series* of cast iron sprinklers offers superior unmatched performance, available in 1 HP through 2-1/2 HP models. The Pro-Storm models offer “single body-fill” priming to 25-foot lifts, in less than 5 minutes! The Pro-Storm models exceed the strict safety requirements of Underwriters Laboratories UL778, and CSA. Required by many state and local codes. The Pro-Storm models are completely interchangeable with the original Sta-Rite® DS3 Series models, saving costly plumbing “change-out” dollars and installation headaches!
Features:
- Rugged Construction: Close-grained cast iron body, specially treated for corrosion resistance.
- Noryl Impeller: Precision-molded for perfect balance…ultra-smooth for highest performance and efficiency.
- Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
- High Head Models: Deliver up to 145' of head with capacities to 95 GPM.
- Easy Serviceability: Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting.
- Motor Windings: Superior insulation materials protect against excessive moisture and contaminants…ensures prolonged motor life.
- Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced.
- Drain Port: Provided for easy winterizing.
- Body and Seal Plate: Close-grained cast iron
- Impeller: Noryl®
- Diffuser: Reinforced polypropylene
- Shaft: One-piece threaded 300 grade stainless steel
- Base: Steel, 10 gauge
- Motor: 2-compartment
Applications:
Residential: Irrigation pump - can be safely operated by timer or other automatic device
Contractors: For dewatering excavation, water transfer and supply
Agriculture: Seed bed and plot irrigation, stock watering
Industrial: Sump drainage, marine pumping, liquid transfer and supply operations
