Little Giant

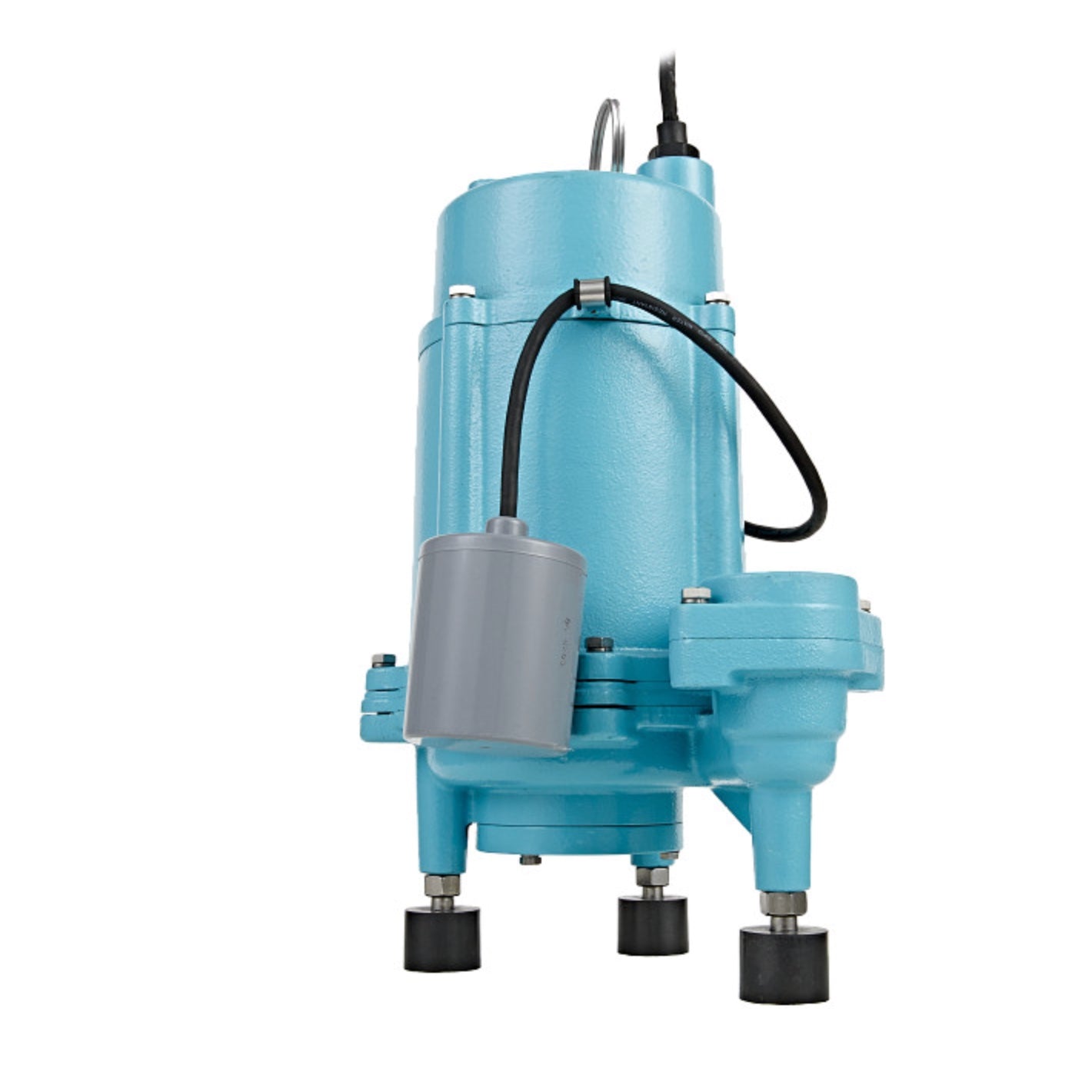

16G-F151-20 Little Giant Grinder Pump 509810 (1 HP, Single Phase, 115V, 20' Cord)**Clearance**

16G-F151-20 Little Giant Grinder Pump 509810 (1 HP, Single Phase, 115V, 20' Cord)**Clearance**

$598.00 USD
$1,879.00 USD $598.00 USD
Sale Sold out
Shipping calculated at checkout.

509810

**Only 1 in Stock at Clearance Price**

The Little Giant 16G-F151-20 Grinder Pump 509810 is the pump of choice wastewater applications in both residential and light commercial applications. A maximum flow rate over 50 GPM and 20' cord make the pump both powerful and easy to use.

The 16G Series 1 hp Grinder Pump is designed for the toughest residential and light commercial wastewater applications as a new or drop-in replacement for any effluent or sewage pump struggling with clogs and binding. wastewater applications.

Ratings
HP 1 hp
Frequency 60 Hz
Phase Single-Phase
Amps - Full Load 12.5 A
Amps - Starting 65 A
Volts 115 VAC
Cord Length 20 ft
Continuous Duty Yes
Thermal Overload Protection Yes
Maximum Flow Rate - 60Hz 52 gpm / 3120 gph
Minimum Flow Rate - 60Hz 9 gpm / 540 gph
Shut-Off 51 ft
Minimum Head - 60Hz 0 ft
Shut Off Height - 60Hz 53 ft
Motor Cooling Fully Submerged

Liquid
Max Fluid Temperature 140 °F

Materials of Construction
Pump Base Material Cast Iron
Pump Body Material Cast Iron
Impeller Type Vortex
Impeller Material Cast Iron
Motor Shaft End - Material 420 Stainless Steel
Intake Screen Material Stainless Steel
Seal Material Silicon Carbide / Nitrile
Seal Type Mechanical Seal

Installation
Discharge Type Threaded - FNPT
Discharge 2 "
Product Length 11.4 "
Product Width 10.1 "
Product Height 17.5 "
Pump Length 11.4 "
Product Weight 78 lb
Product Weight w/ Pack 82 lb
Carton Length 13.5 "
Carton Width 12.4 "
Carton Height 19.6 "

Other
Minimum Order Quantity 1
Electrical Agency Approvals cULus
Standard Warranty 36 Months
