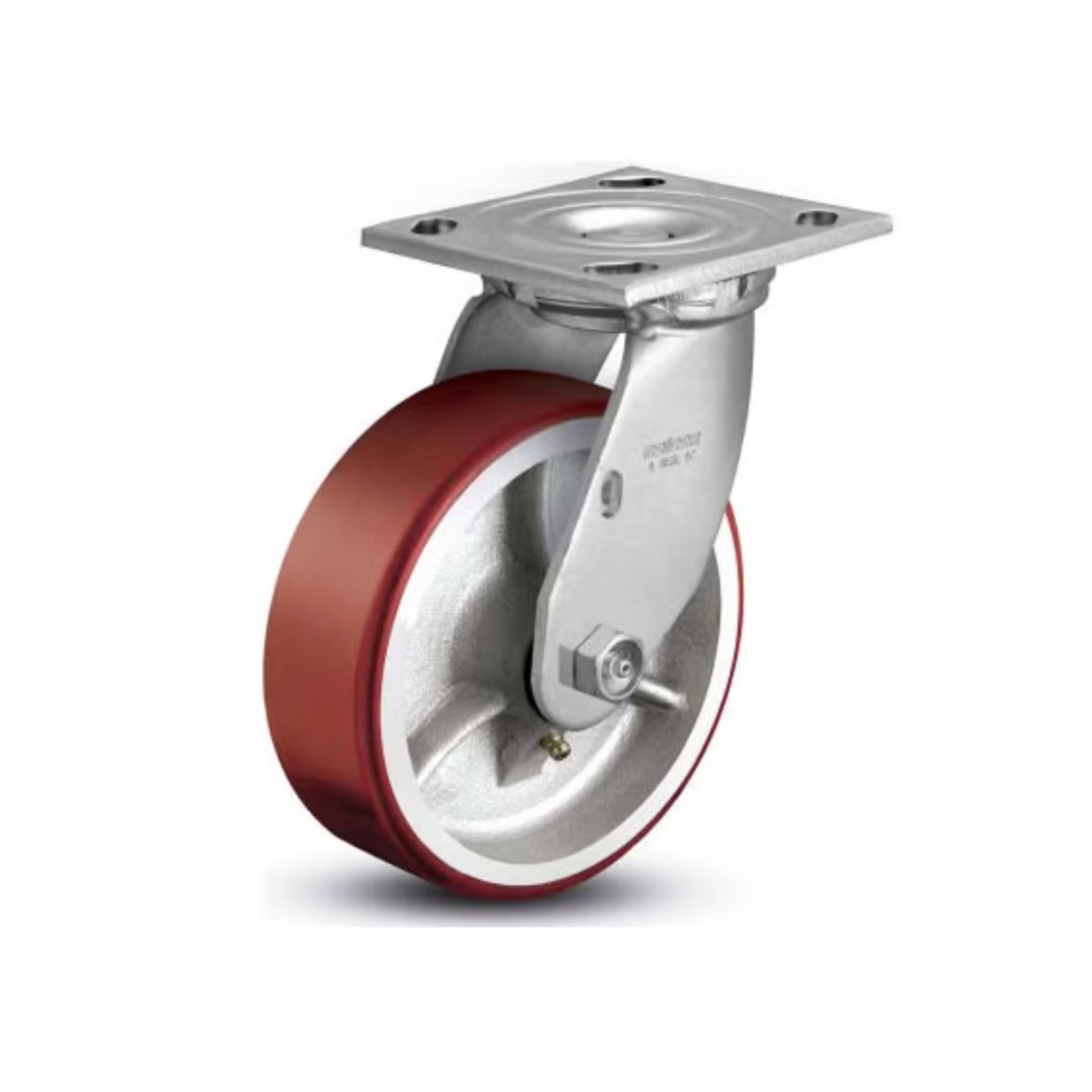

Colson® 4 Series Polyurethane Swivel Plate Caster - 6" Diameter 1200 lb Capacity

Colson's 4.06109.949.7 4 Series Polyurethane 6" diameter swivel caster is perfect for many light duty needs including server and utility carts. A 1200 lb capacity increases the range of carts you can use these casters for. The chemically bonded Polyurethane 2" tread is non-marking to keep your floors unscathed. The top plate swivel increases the maneuverability of your carts.

Colson Part Number:  4.06109.949.7

Specifications:

• Colson Part Number:  4.06109.949.7

• Colson Series:  4 Series

• Fastening Type:  Top Plate Swivel

• Fastening Size:  4-1/2" x 4" (Standard)

• Wheel Diameter:  6"

• Tread Width:  2"

• Wheel Material:  Moldon Polyurethane

• Wheel Type:  Moldon Polyurethane (Cast Iron Core)

• Bearing Type:  Roller

• Capacity Each:  1200 lbs

• Temperature Range:  -45°F to +180°F

• Brake Type:  None - Options Available

• Swivel Lock:  None

• DirtBan Swivel Seal:  None

• Mount Height Option:  Standard

• Mount Height:  7.5"

• Swivel Radius:  5"

• Weight:  10.5 lbs

• Warranty:  3 Years

Manufacturer Information:

Since 1885, Colson’s quality lines of casters and wheels have defined the caster industry. Leading warranties and continuous innovations have established Colson as one of the most-trusted caster brands in the world today. Colson strives to protect and strengthen our legacy of trust and innovation in everything we do. Colson offers over 200,000 different standard caster models, plus the expertise and technology to provide a custom solution for any caster application. Contact Douglas Equipment today, and put our experts to work for you in specifying the perfect Colson caster for your needs!

The Colson 4 Series is our most popular 2" caster solution. This caster is a great fit for warehouse equipment like platform trucks and shelf trucks. When employed with the Performa wheel, it is a perfect fit for poor floor conditions - these casters are capable of handling movement over debris. The 4 Series offers a thicker 3/4" Kingpin giving a 40% longer rig life compared to 5/8" thick imports. The Colson 4 Series casters include: Top Plate Casters, Stainless Steel Casters, Enforcer Kingpinless Casters, and Business Machine Casters. All 4 Series Caster Forks, and many wheels, are USA-Made for highest quality and quickest delivery. These Colson 2" Casters feature an attractive zinc-plated finish, and are supplied with "Colson 45" multi-temp grease that lubricates in extreme temperatures.

Tread Width Options: 1 1/2" or 2"
Capacity Range: 225 - 1250 lbs each
Wheel Diameters: 3", 3 1/4", 4", 5", 6", 8"
Brake Options Available: Tech lock, total lock, top lock, tread lock, side lock, swivel lock
