AMT 12DC-98 12 Volt DC Washdown Pump (7/8 HP, Stainless Steel, 1-1/4" x 1")

The AMT 12DC-98 12 Volt DC Washdown Pump is a corrosion-resistant DC-powered pump designed for OEM, chemical processing, septic service, pumper, marine, and washdown applications. Its 300 Series investment-cast stainless steel construction and Viton® sealing system make it particularly suitable for applications requiring greater corrosion and chemical resistance.

Powered by a premium 7/8 HP, 12 Volt DC washdown-duty motor, the pump is engineered for operation in severe damp and wet environments. The motor includes a stainless steel shaft, protective interior coating, condensate drains, sealed electrical stud connections, and oversized brushes for extended service life.

A stainless steel impeller provides dependable hydraulic performance, while the pull-from-rear design allows easier servicing without removing connected piping. The discharge can also be rotated in 90° increments to accommodate different installation configurations. The pump is not self-priming and requires flooded suction.

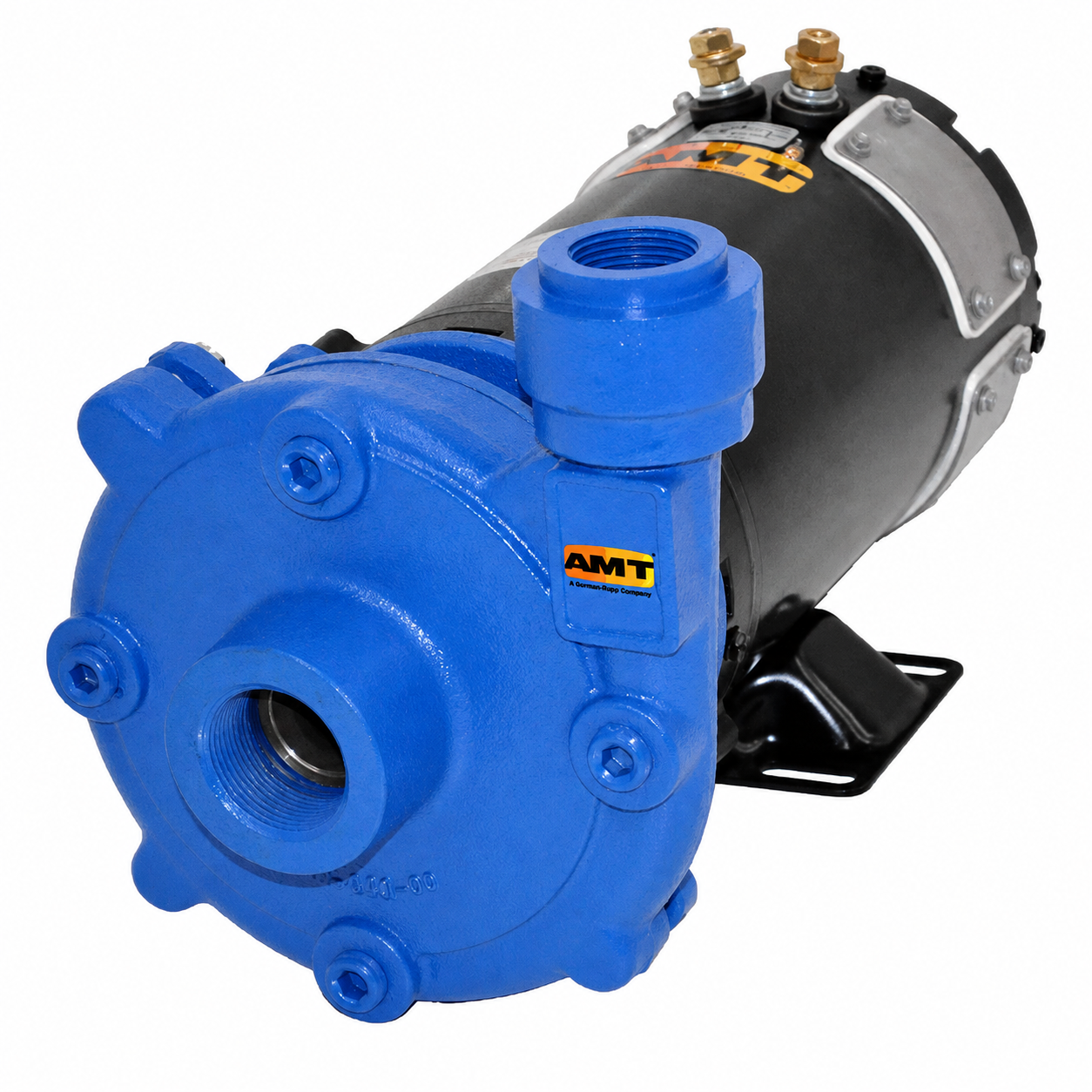

Please Note:  Image is a stock photo and may not match exactly

Features:

• 7/8 HP, 12 Volt DC washdown-duty motor
• 300 Series investment-cast stainless steel construction
• Stainless steel impeller
• Viton® mechanical seal and O-ring
• Stainless steel motor shaft
• Maximum flow up to 52 GPM
• Maximum head up to 74 ft.
• Maximum pressure approximately 32 PSI at shutoff
• Maximum working pressure: 150 PSI
• Maximum liquid temperature: 200°F with Viton® seals
• 1-1/4" female NPT suction
• 1" female NPT discharge
• Discharge rotates in 90° increments
• Four front drain plugs positioned 90° apart
• Maximum solids handling: 3/16"
• Pull-from-rear service design
• One-hour motor duty rating
• Designed for severe damp/wet operating conditions
• Not self-priming; flooded suction required
• Not submersible

Specifications

Manufacturer: AMT Pump Company
Model: 12DC-98
Pump Type: 12 Volt DC Washdown Pump
Horsepower: 7/8 HP
Voltage: 12 VDC
Construction: 300 Series Cast Stainless Steel
Impeller: Stainless Steel
Mechanical Seal: Viton®
O-Ring: Viton®
Suction Size: 1-1/4" Female NPT
Discharge Size: 1" Female NPT
Maximum Flow: 52 GPM
Maximum Head: 74 ft.
Maximum Working Pressure: 150 PSI
Maximum Liquid Temperature: 200°F
Maximum Solids: 3/16" diameter
Motor Shaft: Stainless Steel
Approx. Dimensions: 15.5" L x 7.9" W x 8.5" H
Shipping Weight: 57 lbs.
Priming: Flooded suction required
Duty Rating: 1 Hour
