AMT 1ES07C-3P Centrifugal Chemical Pump (3/4 HP, Three Phase, 208-230/460V, 1" NPT)

The AMT 1ES07C-3P combines a 3/4 HP three-phase TEFC motor with a rugged cast iron centrifugal pump for continuous-duty chemical processing, circulation and liquid transfer applications. EPDM/EPR sealing components provide compatibility with a variety of nonflammable liquids, while its self-cleaning impeller helps resist clogging when handling liquids containing suspended solids and debris.

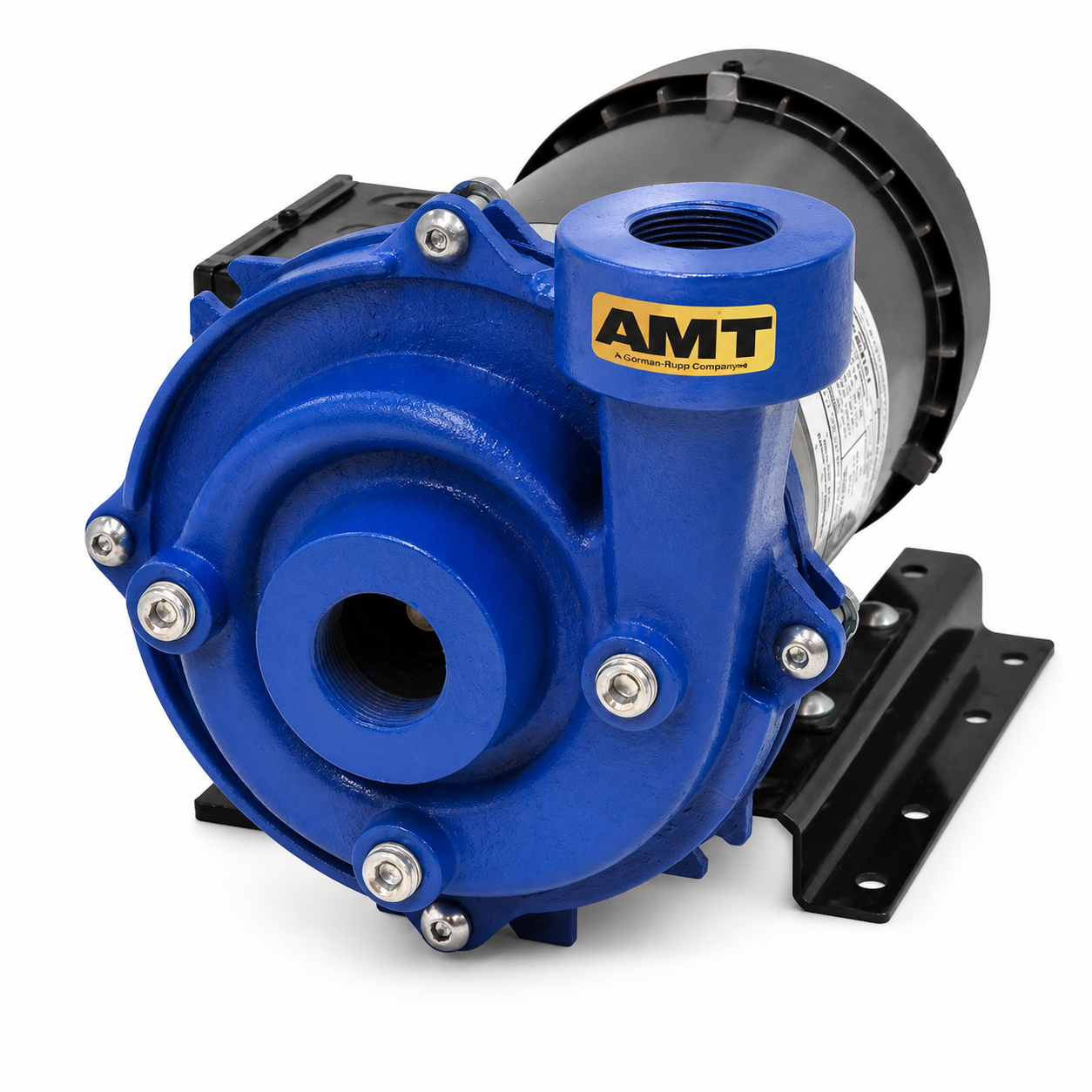

Please Note:  Image is a stock photo and may not match exactly

Features & Benefits:

• Cast Iron Construction
• EPDM/EPR Mechanical Seal and O-Rings
• Discharge Port Rotates in 45° Increments
• Solids Handling, Clog Resistant Impeller
• 1/2 to 3 HP Dual Cycle 50/60 Hz TEFC 56J NEMA Single or Three Phase Motors
• 3/4˝ to 2˝ NPT Sizes
• Maximum Working Pressure 125 PSI
• Maximum Flow 180 GPM
• Maximum Head 95 Ft. (41 PSI)
• Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping
• Multiple 1/2˝ NPT Drain Ports

Specifications:
Model: 1ES07C-3P

• Horsepower: 3/4 HP
• Phase: Three Phase
• Voltage: 208-230/460V
• Full Load Amps: 3/2A
• Suction: 1" NPT
• Discharge: 1" NPT
• Maximum Temperature: 180°F
• Maximum Working Pressure: 125 PSI
• Maximum Solids: 3/8"
• Ship Weight: 44 lbs
