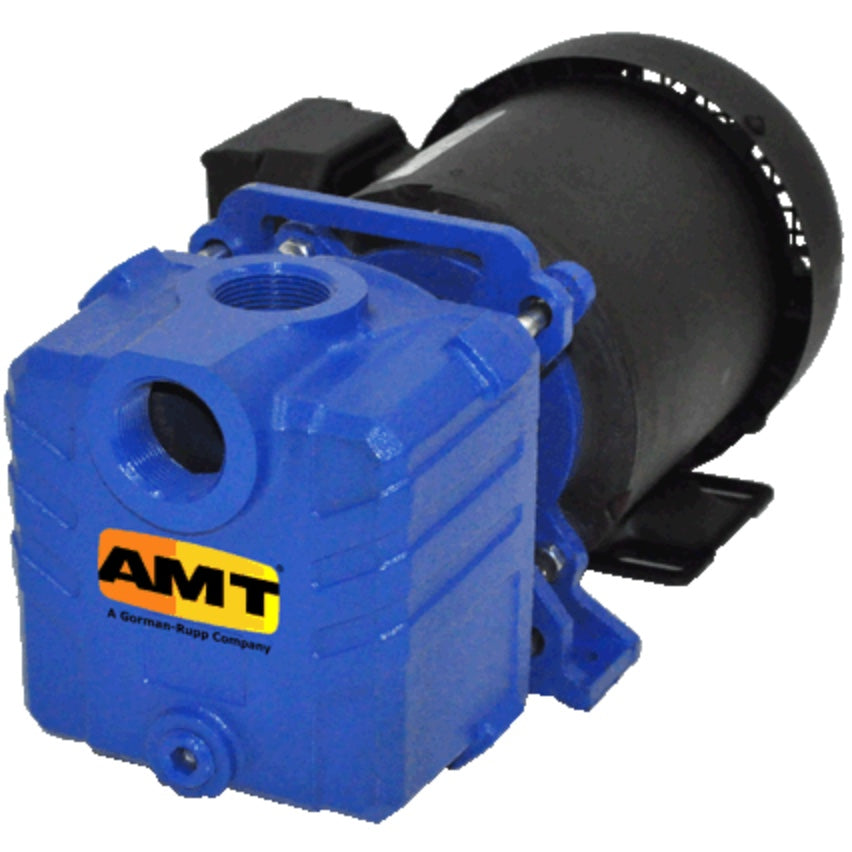

AMT 285H-95 1-1/4" Cast Iron Self-Priming Electric Motor Driven Centrifugal Pump (1-1/2 HP, TEFC, 56J, 115/230V, Single Phase, Buna-N/SS)
AMT 285H-95 1-1/4" Cast Iron Self-Priming Electric Motor Driven Centrifugal Pump (1-1/2 HP, TEFC, 56J, 115/230V, Single Phase, Buna-N/SS)
SKU:285H-95
Couldn't load pickup availability
AMT 285H-95 1-1/4" Cast Iron Self-Priming Electric Motor Driven Centrifugal Pump is designed, manufactured and tested in the USA. This model is equipped with a 1-1/2 HP electric motor and can self prime up to 20'. A durable cast iron body increases overall strength while the Buna-N/SS shaft seal prolongs the longevity of the internal parts. AMT Pump Company is a subsidiary of The Gorman-Rupp Company.
Specifications:
-
Pump Body: Cast Iron
-
Mechanical Seal: Buna-N/SS
- Maximum Flow Rate: 82 gpm - See Performance Chart
-
Ports: 1-1/4" NPT
- Electric Motor: 1-1/2 HP, Single Phase, TEFC, 56J
- Voltage: 115/230V
- Weight: 58 lbs
The AMT Self-Priming Cast Iron Centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open impeller. The units will selfprime to 20 feet. Mounting base features 7/16″ mounting holes, which are 6″ OC (on center). Built-in carrying handle offers portability.
Series Features:
- Cast Iron Construction
- Buna-N Mechanical Seal and O-Ring
- Optional Viton® or Silicon Carbide Mechanical Seal and O-Ring
- 1˝ & 1-1/4˝ NPT Suction and Discharge Ports
- Maximum Temperature 180° F
- Maximum Flow 85 GPM
- Maximum Head 70 Ft.
- Self-Priming to 20 Ft.
- Self-Cleaning, Semi-Open Impeller
- Solids Handling and Dirty Water Design
- Dual Volute Design Reduces Radial Load on Motor
- Maximum Working Pressure 75 PSI
- 1/3 to 1-1/2 HP Single or Three Phase Motors
