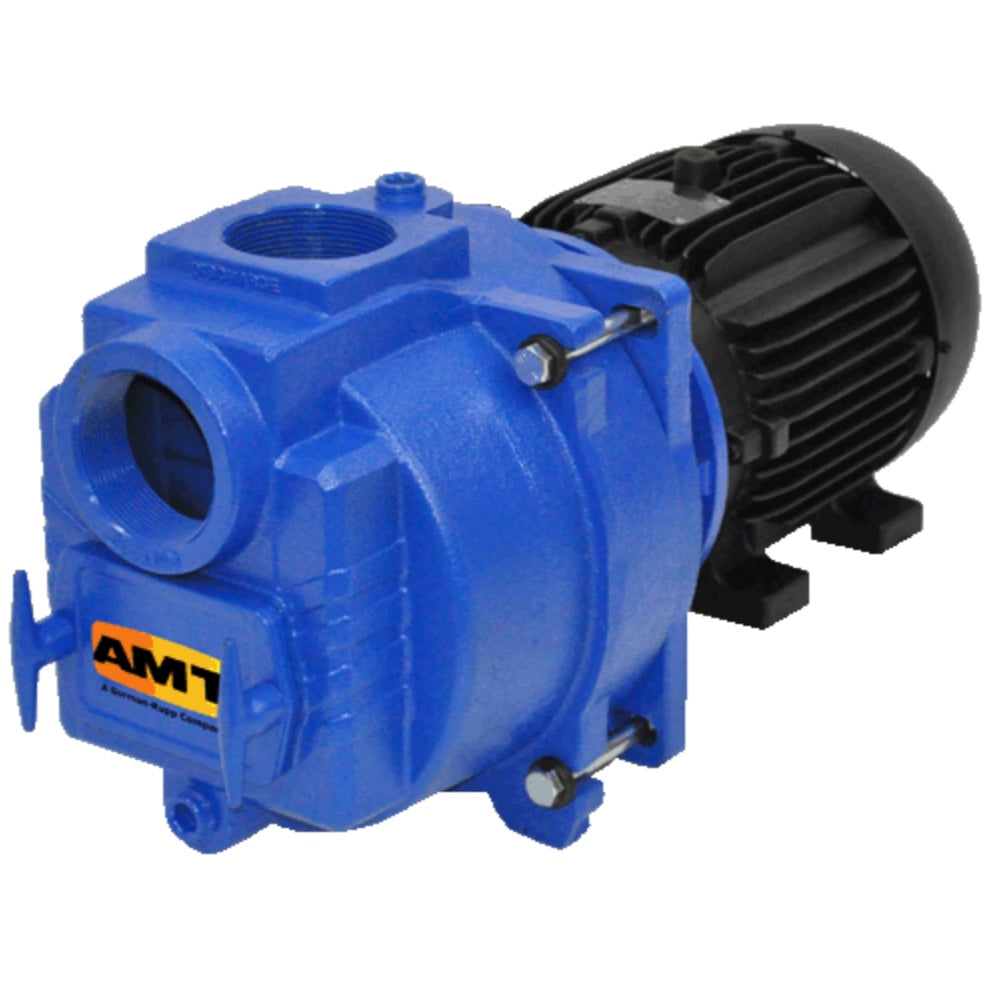

AMT 316A-95 2" x 2" Self Priming Cast Iron Centrifugal Pump (3 HP, TEFC, 56J, 230/460V, Three Phase)
AMT 316A-95 2" x 2" Self Priming Cast Iron Centrifugal Pump (3 HP, TEFC, 56J, 230/460V, Three Phase)
SKU:316A-95
Couldn't load pickup availability
AMT 316A-95 2" x 2" Self Priming Cast Iron Centrifugal Pump is the preferred option for sewage, trash and other industrial applications. Designed, manufactured and tested in the USA. This model is equipped with a 3 HP electric motor to guarantee power and performance. A durable Cast Iron body increases overall strength and prolongs the longevity of the internal parts. AMT Pump Company is a subsidiary of The Gorman-Rupp Company.
Specifications:
-
Pump Body: Cast Iron
- Mechanical Seal: Buna-N
- Ports: 2" x 2" NPT
- Electric Motor: 3 HP, Three Phase, TEFC, 56J
- Voltage: 230/460V
- Weight: 87 lbs
Series Features:
- Cast Iron Construction for Abrasive Resistance and Durability
- Silicon Carbide/Viton® Mechanical Seal
- Built-in Buna-N Check Valve
- Buna-N O-ring Casing Seal Reusable After Clean Out Maintenance
- Self-Cleaning Stainless Steel Impeller Resists Clogging and Wear
- Pull-from-Rear Design Permits Clean Out and Repair Without Removing Piping
- 3" & 4" Models Feature Front Cleanout Pump Dimensional & Specification Data
- Replaceable Cast Iron Volute/Wearplate Designed for Solids Handling
- Motor Includes Stainless Steel Shaft or Stainless Steel Shaft Sleeve
- Available with 3 to 15 HP Totally Enclosed Fan Cooled (TEFC) Electric Motors
- Single or Three Phase, 3450 RPM Motors
- Optional Mounting Base Available for 184/215 JM Frames
- Maximum Working Pressure 150 PSI
- Seal Flush Port Provided on 5 HP and Larger
- Optional Mounting Base Available
- QSP – Quick Ship Pump for Many Models
AMT Cast Iron Sewage/Trash pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Pumps are available in three NPT port sizes: 2", 3" or 4". Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N O-rings and check valves. Built-in check valve allows pump to reprime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pumps will easily handle liquids containing sewage, stones, sticks, mud and other solids. Minimum liquid requirement must be above 85% — maximum 15% solids. Failure to do so may damage pump and void warranty.
