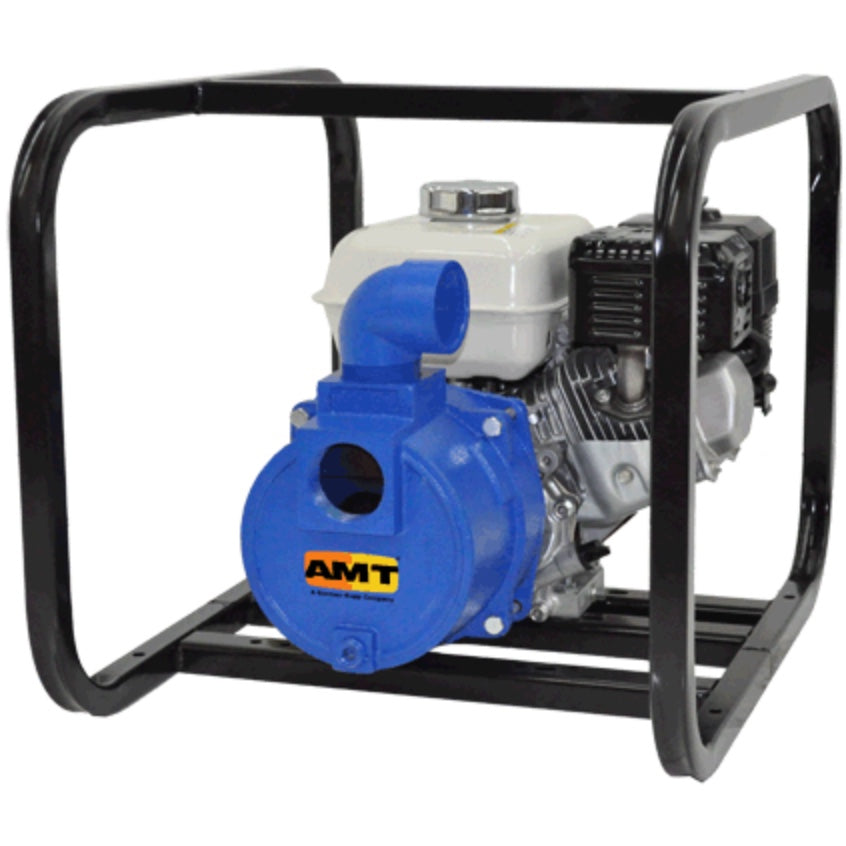

AMT 316F-95 2" Cast Iron Self-Priming Engine Driven Dredging Pump (Honda GX160 Engine, Viton® S/C Seal)

AMT 316F-95 2" Cast Iron Self-Priming Engine Driven Dredging Pump is designed, manufactured and tested in the USA. This model is equipped with a Honda GX160 engine and can move water containing up to 25% sand, debris and other abrasive particles. A strong cast iron body increases durability while the mechanical seal prolongs the longevity of the internal parts. AMT Pump Company is a subsidiary of The Gorman-Rupp Company.

• Pump Body:  Cast Iron

• Mechanical Seal:  Viton® S/C Seal

• Maximum Flow Rate:  173 gpm - See Performance Chart

• Maximum Pressure:  72 psi
• Ports:  2" NPT

• Engine:  5 HP, Honda GX160

• Solids Handlings and Dirty Water Design
• Maximum Solids Handling 1/2˝
• Weight:  85 lbs

AMT Engine Driven Dredging Pump is designed for pumping sea water and fresh water containing up to 25% sand, debris and other abrasive particles. This unit can be used for other marine applications including dredging, pile driving, pier maintenance, emergency bilging and wash down. This pump is constructed of wear resistant high chromium stainless steel internal components that are designed to last for over 500 hours of service with regular maintenance of rinsing pump after each use. The high chromium stainless steel components are investment cast and CNC machined for maximum efficiency, performance and quality. Dual volute design reduces radial load on engine. The 4-bolt casing design and removable type volute offers simple maintenance and fast cleanout of the pump.

Series Features:

• High Chromium Stainless Steel Internal Components Resist Wear from Sea Water Mixed with Abrasive Sand
• Silicon Carbide/Buna-N Mechanical Seal Resists Abrasives and Extends Seal Life
• Heavy Duty Cast Iron Casing and Adapter Ensures Durability for Severe Service Conditions
• O-ring Casing Seal for Ease of Service and Cleaning
• Maximum Working Pressure 75 PSI
• Maximum Temperature 180° F
• Maximum Flow 173 GPM
• Dual Volute Design for Hydraulic Balance • Maximum Head 101 Ft. @ Sea Water (42 PSI)
• Self-Primes to 10 Ft. in 1 Minute with Maximum Lift of 20 Ft.
• (2) NPT Pipe Nipples, (1) Discharge Elbow and (1) Suction Strainer Included
• Heavy Duty Steel Roll Frame for Portability
