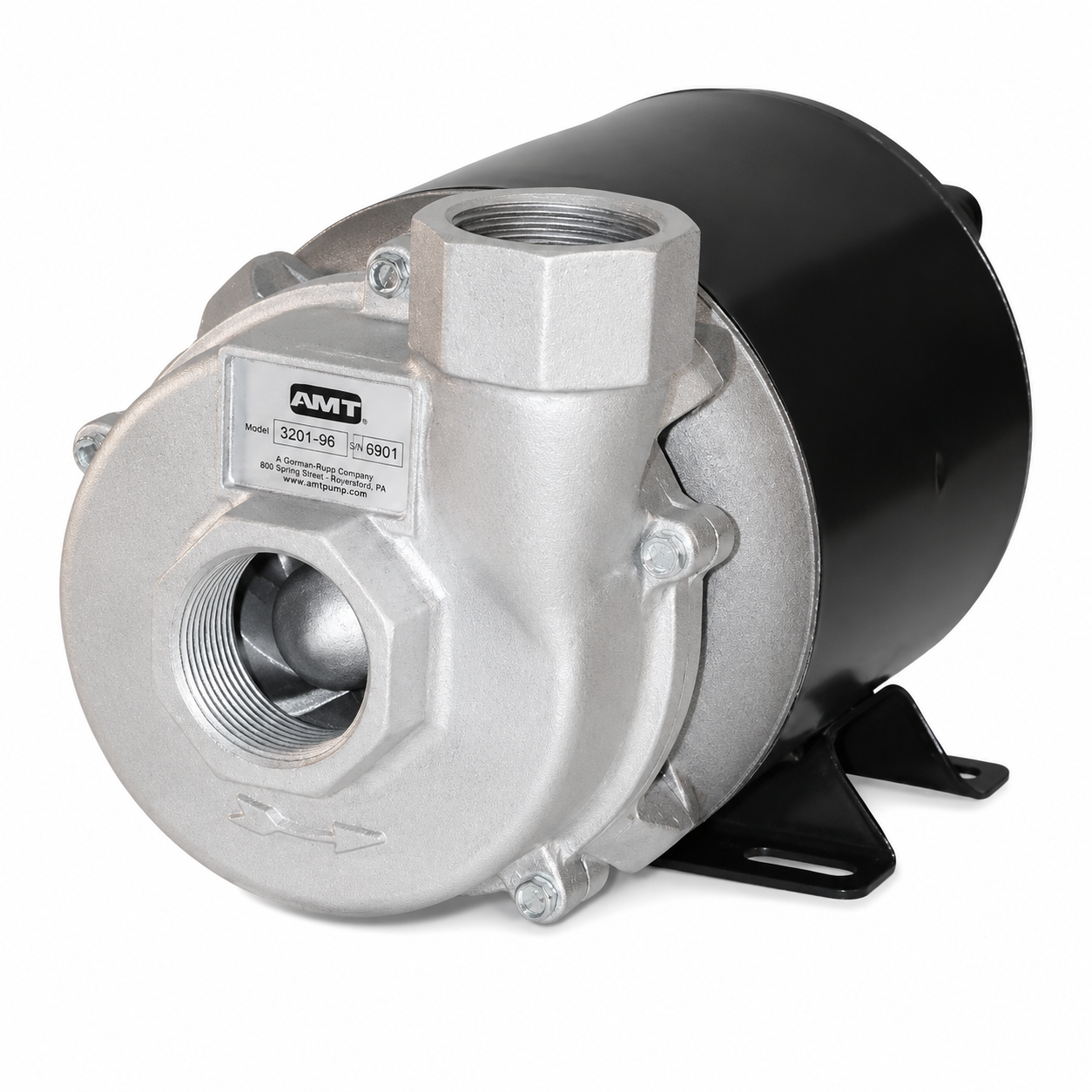

AMT 3201-96 General Purpose Laundry Tray Pump (1/4 HP, 115V, 1-1/4" NPT, 24 GPM)

The AMT 3201-96 General Purpose Laundry Tray Pump is a compact, continuous-duty centrifugal pump designed for laundry trays and other gravity-fed general-service pumping applications. Its single-stage, multi-vane semi-open impeller can handle both clean and dirty liquids containing dissolved solids, debris, and solids up to 1/8" diameter.

**IMPORTANT: This pump is not self-priming and requires a flooded suction. For use with nonflammable liquids compatible with the pump's component materials.**

The pump features durable cast aluminum construction, a Buna-N mechanical seal and O-ring, and 1-1/4" NPT female suction and discharge connections. Its self-cleaning semi-open impeller provides resistance to clogging in applications where small debris may be present.

Powered by a 1/4 HP, 115V single-phase, 1725 RPM ODP motor, the 3201-96 delivers up to 24 GPM with a maximum head of 11 feet. This pump is not self-priming and requires flooded suction.

Primary applications include: Laundry Trays, Utility Sinks, Gravity-Fed Drainage, Dirty Water Transfer, Clean Water Transfer, General Purpose Pumping, Drain Water, Utility Pumping, Light Commercial Applications

Features:

• 1/4 HP
• 115V
• Single Phase
• 1725 RPM
• Continuous Duty
• 1-1/4" NPT Female Suction
• 1-1/4" NPT Female Discharge
• 24 GPM Maximum Flow
• 11 Ft. Maximum Head
• 1/8" Solids Handling
• Cast Aluminum Construction
• Self-Cleaning Semi-Open Impeller
• Buna-N Mechanical Seal, Buna-N O-Ring
• 180°F Maximum Liquid Temperature
• 50 PSI Maximum Working Pressure
• ODP Motor, 48Z Frame
• Dirty Water Capable
• Flooded Suction Required

AMT's specification sheet confirms the 24 GPM maximum flow, 11-foot maximum head, 180°F maximum temperature and motor configuration.

Specifications:
