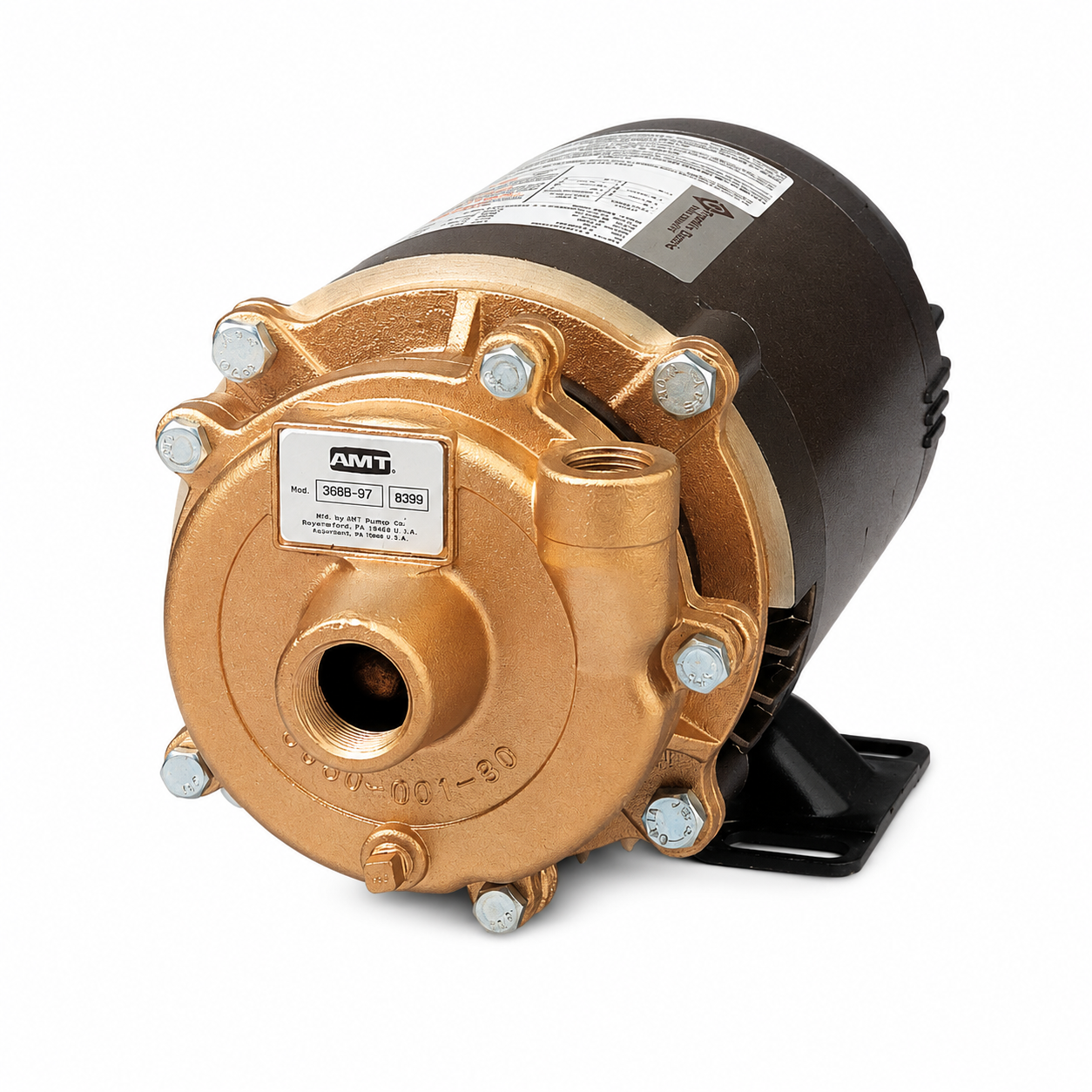

AMT 368A-97 Centrifugal Pump (1/3 HP, Bronze, 115/230V)

The AMT 368A-97 combines a compact 1/3 HP TEFC motor with cast-bronze pump construction for corrosion-resistant continuous-duty pumping. Its self-cleaning semi-open impeller handles liquids containing small solids and debris. This pump is not self-priming and requires a flooded suction.

Built for dependable operation and easy maintenance, the pump features a pull-from-rear design that allows servicing without disturbing existing piping. The discharge can be rotated in 90-degree increments for installation flexibility, while a front drain plug simplifies maintenance. A stainless steel motor shaft and hardware provide added durability.

With a maximum working pressure of 75 PSI and multiple construction and seal-material options available across the series, these AMT pumps can be matched to a wide range of demanding pumping applications.

Features:

• Cast bronze construction
• Viton mechanical seal and O-ring
• self-cleaning semi-open impeller
• TEFC motor
• stainless steel motor shaft and hardware
• rotating discharge
• front drain plug, continuous-duty design

Specifications:

• 1/3 HP
• single phase
• 115/230V
• 7/4 amps
• 3/4" NPT suction
• 1/2" NPT discharge
• TEFC
• 34 lb approximate ship weight
• 1/8" maximum solids
• 75 PSI maximum working pressure
• 200°F maximum liquid temperatur
• flooded suction required

Applications: Chemical processing, circulation, liquid transfer, industrial water, commercial systems, OEM equipment, process applications
