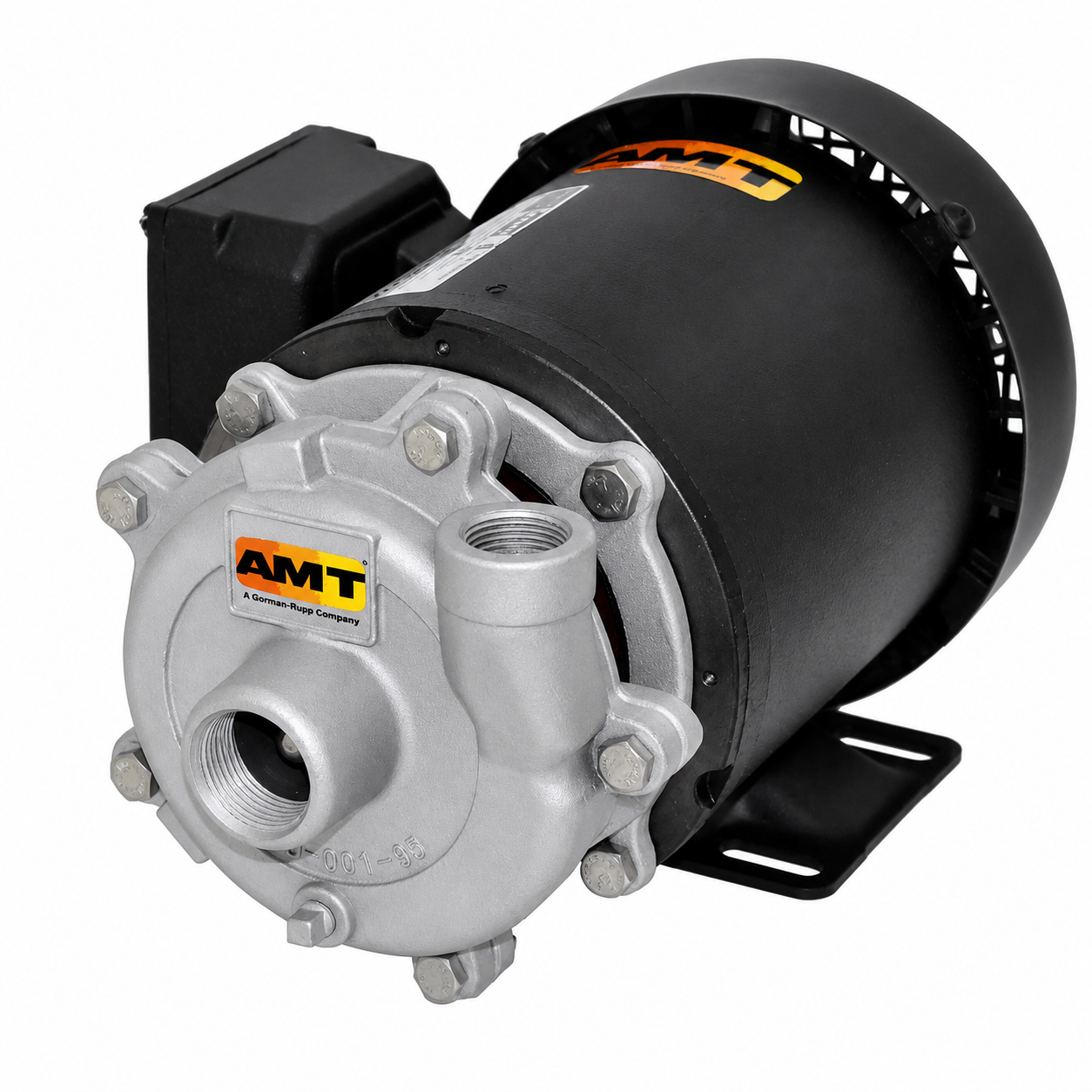

AMT 368A-98 Centrifugal Pump (1/3 HP, Stainless Steel, 115/230V)

The AMT 368A-98 is a 1/3 HP stainless-steel centrifugal pump engineered for continuous-duty applications requiring increased corrosion resistance. Its investment-cast 300 Series stainless-steel construction and Viton sealing make it well suited for compatible industrial and process liquids.

Built for dependable operation and easy maintenance, the pump features a pull-from-rear design that allows servicing without disturbing existing piping. The discharge can be rotated in 90-degree increments for installation flexibility, while a front drain plug simplifies maintenance. A stainless steel motor shaft and hardware provide added durability.

With a maximum working pressure of 75 PSI and multiple construction and seal-material options available across the series, these AMT pumps can be matched to a wide range of demanding pumping applications. This pump is not self-priming and requires a flooded suction.

Features:

• 300 Series investment-cast stainless steel construction
• Viton mechanical seal and O-ring
• Self-cleaning semi-open impeller
• TEFC motor
• Stainless steel shaft and hardware
• Rotating discharge
• Front drain plug

Specifications:

• Horsepower: 1/3 HP
• Phase: Single phase
• Voltage: 115/230V
• Amperage: 7/4 amps
• Suction: 3/4"
• Discharge: 1/2"
• Motor Enclosure: TEFC
• Weight: Approximately 34 lb
• Solids Handling: Up to 1/8"
• Maximum Working Pressure: 75 PSI
• Maximum Temperature: 200°F
• Priming: Non-self-priming

Applications:

• Chemical processing
• Industrial liquid transfer
• Circulation
• Process water
• OEM systems
• Corrosive-compatible liquid handling
