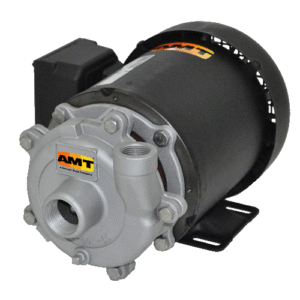

AMT 368B-95 Straight Centrifugal Pump (1/2 HP, TEFC, 56J, 115/230V, Single Phase, Buna-N, Stainless Steel Impeller)
AMT 368B-95 Straight Centrifugal Pump (1/2 HP, TEFC, 56J, 115/230V, Single Phase, Buna-N, Stainless Steel Impeller)
SKU:368B-95
Couldn't load pickup availability
AMT 368A-95 Solids Handling Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, dirty water and liquid transfer. These durable and compact pumps are available in a variety of construction and seal materials to meet your specification. Pull-from-rear design for easy service without disturbing any piping. Self- cleaning impeller prevents clogging and handles solids of 1/8" diameter. Pumps are designed to handle liquids with solids content or dissolved solids and debris. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) motors. Pumps are not self-priming and require flooded suction.
Specifications:
-
Pump Body: Cast Iron
-
Mechanical Seal: Buna-N
- Impeller: Stainless Steel
- Full Load Amps: 9/5
- Ports: 3/4" x 1/2" NPT
- Electric Motor: 1/2 HP, Single Phase, TEFC, 56J
- Voltage: 115/230V
- Weight: 33 lbs
Series Features:
- Available in: 300 Series Investment Cast Stainless Steel,Cast Bronze and Cast Iron with Stainless Steel Impeller Construction
- Viton® Mechanical Seal and O-Ring with Stainless Steel and Bronze Models
- Buna-N Mechanical Seal and O-Ring with Cast Iron Models
- Discharge Port Rotates in 90° Increments
- Self-Cleaning, Semi-Open Impeller
- Solids Handling and Dirty Water Design
- Maximum Flow 90 GPM
- Maximum Head 65 Ft. (28 PSI)
