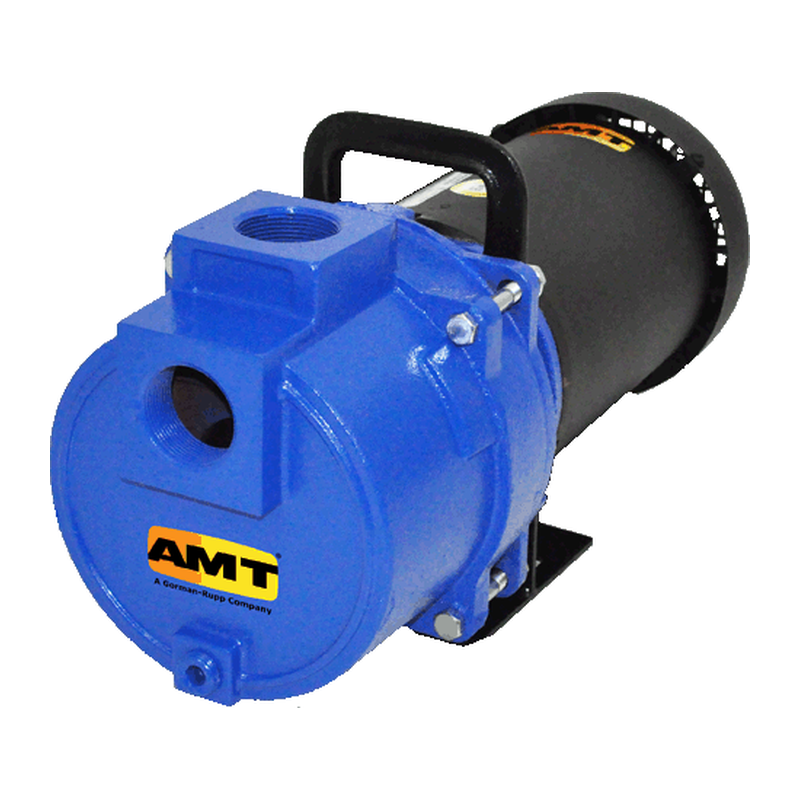

AMT 379F-95 Self-Priming Sprinkler/Booster Pump (1 HP, 230/460V, 3 Phase)

The AMT 379F-95 Self-Priming Sprinkler/Booster Pump (1 HP, 230/460V, 3 Phase) is a heavy-duty cast-iron centrifugal pump designed for irrigation, sprinkler systems, water boosting, water transfer and other general-purpose pumping applications. Its 300 Series investment-cast stainless-steel impeller provides excellent resistance to erosion from abrasive particles, while AMT's self-priming design allows suction lifts up to 20 feet.

The pump features a Buna-N mechanical seal and O-ring, replaceable volute/diffuser and rugged construction for dependable commercial, agricultural and industrial service. AMT's single-stage 379 and 365 Series pumps also feature a removable dual-volute design that reduces radial load on the motor and simplifies servicing.

Applications:

Lawn Irrigation, Sprinkler Systems, Agricultural Irrigation, Commercial Irrigation, Water Pressure Boosting, Water Transfer, Booster Systems, General Purpose Water Pumping, Farm Irrigation, Landscape Irrigation, Water Supply Systems, Tank Transfer, Pond Water Transfer.

Features:

• 1 HP
• 230/460V
• Three phase
• TEFC motor
• 1-1/2" NPT ports
• Self-primes to 20 ft
• Stainless-steel impeller
• Cast-iron construction
• Buna-N mechanical seal
• Dual-volute design
• 1/16" solids handling

Specifications:

• Model: 379F-95
• HP: 1 HP
• Voltage: 230/460V
• Phase: 3
• Enclosure: TEFC
• Suction/Discharge: 1-1/2" NPT
• Dimensions: 17.1" × 9.3" × 9.1"
• Shipping Weight: 63 lbs.
