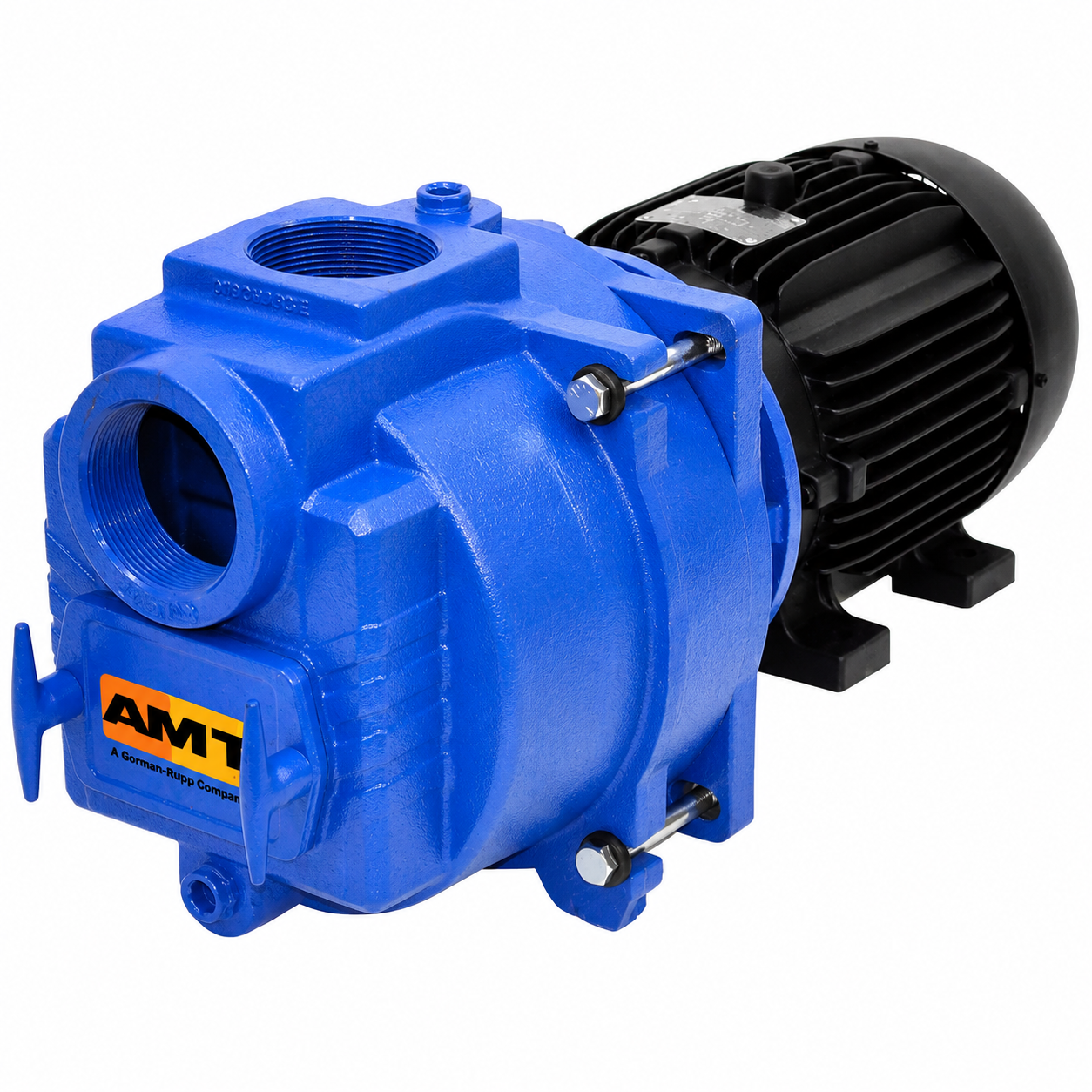

AMT 399D-95 Self-Priming Sewage & Trash Pump (15 HP, 230/460V, Three Phase, 4")

The AMT 399D-95 is the largest pump listed in the SPE-19/20 series, featuring a 15 HP three-phase TEFC motor and 4" NPT suction and discharge connections. Designed for high-volume sewage, wastewater, sludge and industrial solids-handling applications, it can pass solids up to 2" diameter.

Heavy-duty cast-iron construction provides durability, while the stainless-steel self-cleaning impeller resists clogging and wear. The 4" design incorporates a front cleanout for easier maintenance and debris removal.

Great for industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white wate and other applications.

Features:

• 15 HP
• 230/460V
• Three Phase
• 4" NPT Suction & Discharge
• 2" Solids Handling
• TEFC Motor
• 3450 RPM
• Self-Priming
• Front Cleanout
• Cast Iron Construction
• Stainless Steel Impeller
• Silicon Carbide/Viton Mechanical Seal
• Built-In Buna-N Check Valve
• Seal Flush Port
• Pull-From-Rear Design

Specifications:

• Manufacturer: AMT Pump Company
• Model: 399D-95
• Pump Type: Self-Priming Sewage/Trash Pump
• HP: 15 HP
• Voltage: 230/460V
• Phase: Three
• Motor: TEFC
• Frame: 215JM
• Full Load Amps: 47/24A
• Suction: 4" NPT
• Discharge: 4" NPT
• Maximum Solids: 2"
• Maximum Working Pressure: 150 PSI
• Maximum Liquid Temperature: 180°F
• Shipping Weight: 275 lbs.
