AMT 3P9X 3" Aluminum Self-Priming Engine Driven High Pressure Pump Kit (1"-14 Threaded)
AMT 3P9X 3" Aluminum Self-Priming Engine Driven High Pressure Pump Kit (1"-14 Threaded)
SKU:3S5X
Couldn't load pickup availability

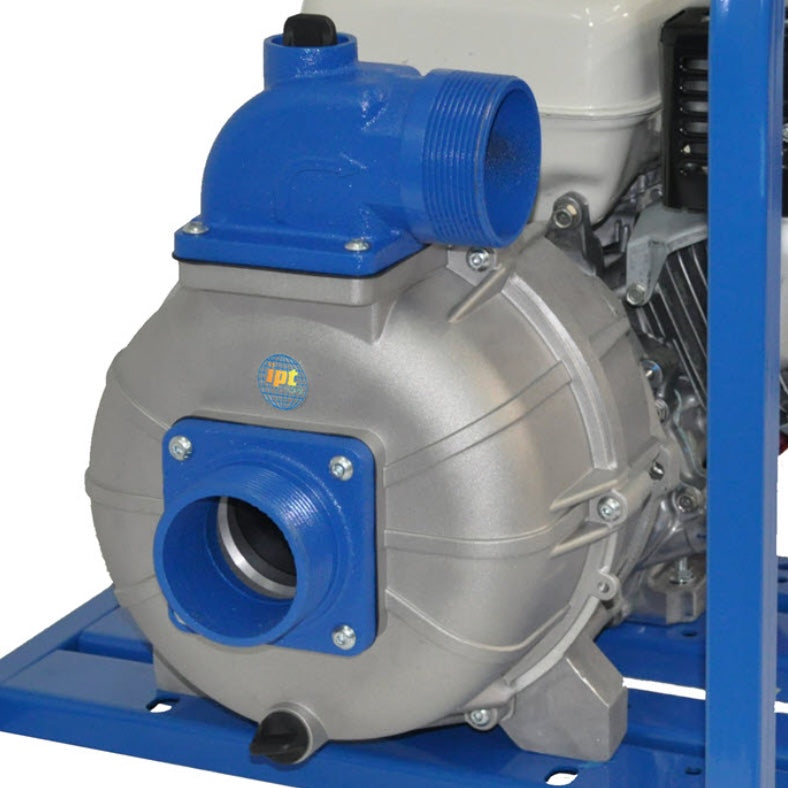

AMT 3P9X 3" Aluminum Self-Priming Engine Driven High Pressure Pump Kit is designed, manufactured and tested in the USA. This model is the pump kit only and does not include the engine. A strong cast aluminum body increases durability while the EPDM mechanical seal prolongs the longevity of the internal parts. This kit is for threaded shafts only. AMT Pump Company is a subsidiary of The Gorman-Rupp Company.
Specifications:
-
Pump Body: Aluminum Diecast
-
Mechanical Seal:
EPDM/EPR Seal with Carbon and Ceramic Faces
- Maximum Flow Rate: 180 gpm - See Performance Chart
- Ports: 3" NPT
- Weight: 58 lbs
IPT 3″ Engine Driven Portable High Pressure pumps are cast aluminum construction with cast iron volute and male NPT ports. Pump applications include fire protection and irrigation. These pumps are available with a wide choice of standard and heavy duty gasoline or diesel fueled engines. These pumps feature high efficiency closed cast aluminum impeller. All models come equipped with EPDM/EPR elastomers and seals. Most models include a heavy duty steel roll frame.
Series Features:
- Aluminum Closed Impeller and Cast Iron Volute—Die Cast Aluminum Pump
- Large Pump Casing Increases Capacity
- Built-in Check Valve for Fast Priming
- Removable/Replaceable Cast Iron Suction & Discharge Flanges
- 3" Male NPT Discharge Port Rotates in 90° Increments
- EPDM/EPR Seal with Carbon and Ceramic Faces with Optional Viton® Seals and Elastomers
- One Tool Serviceability, Tool Included with Engine Driven Models (Not with Kits)
- Choice of LCT Storm Force, Honda Gasoline or Hatz Diesel Engines
- Includes Strainer and Rubber Foot Mounting
- Maximum Temperature 180° F
- Pedestal Versions Available
- Optional High Pressure Hose Kit and Wheel Kit Available
- 3˝ Cast Iron Suction & Discharge Male NPT Port Sizes
- Maximum Flow up to 185 GPM
- Maximum Head up to 89 PSI
- Maximum Lift to 26 Ft.
- Utilized for Fire Protection or Irrigation
