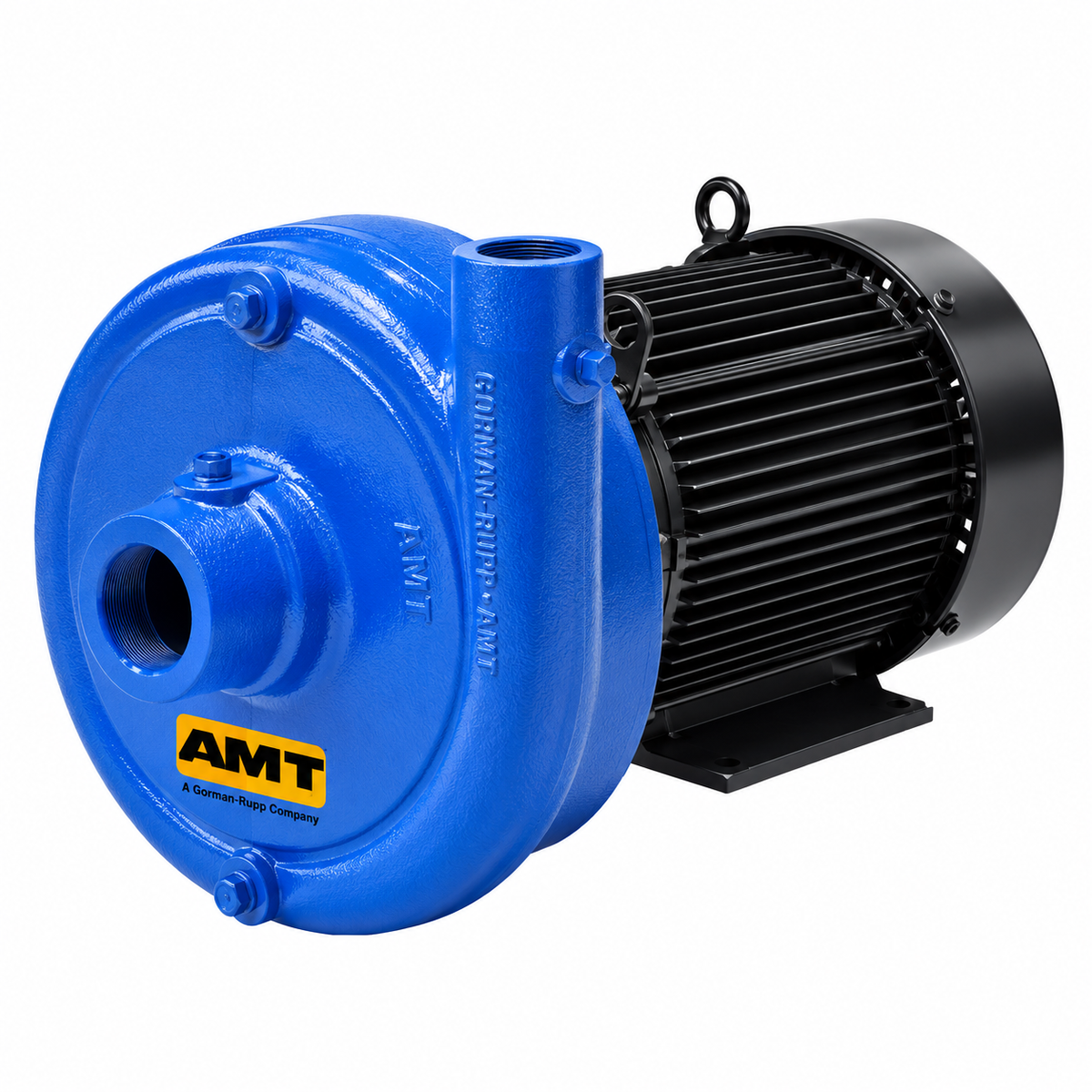

AMT 4201-95 Centrifugal Straight Pump replaces 420A-95 (Cast Iron, 5 HP, 3-Phase, 1750 RPM, 2" x 1-1/2" NPT Ports)

The AMT 4201-95 is a heavy-duty 5 HP, 1750 RPM straight centrifugal end-suction pump designed for continuous-duty industrial, commercial, OEM, circulation, liquid-transfer, heating/cooling, pressure-boosting, and sprinkler applications. The pump features a durable cast iron construction, precision-cast silicon bronze impeller, bronze case wear ring, and a Viton® silicon carbide/carbon mechanical seal.

The pull-from-rear design allows the pump to be serviced without disturbing the connected piping. The pump also includes 1/4" NPT gauge taps on the suction and discharge ports for system monitoring, front drain plugs, and a seal flush/air relief valve.

The 4201-95 uses a 1750 RPM TEFC 182JM motor, operating at 208-230/460 VAC, 3-phase, 60 Hz, with 22/11 full-load amps. The pump handles solids up to 1/4" diameter and requires a flooded suction with positive suction pressure.

**4201-95 replaces the discontinued AMT 420A-95**

Features:

• 5 HP, 1750 RPM centrifugal pump
• Heavy-duty cast iron construction
• Precision-cast, dynamically balanced silicon bronze impeller
• Viton® silicon carbide/carbon mechanical seal
• Bronze case wear ring
• Bronze shaft sleeve protects the motor shaft
• Pull-from-rear design for easier maintenance
• 2" suction x 1-1/2" discharge
• 1/4" NPT gauge taps on suction and discharge
• Seal flush/air relief valve included
• Front drain plugs
• TEFC 182JM NEMA frame motor
• Maximum casing pressure: 175 PSI
• Maximum liquid temperature: 200°F
• Handles solids up to 1/4" diameter
• Designed for flooded suction and positive suction pressure
• Energy-efficient motor configuration

Applications:

Industrial water circulation, commercial water circulation, liquid transfer, process water, heating and cooling systems, HVAC applications, sprinkler systems, pressure boosting, industrial processing, OEM equipment, general-purpose water transfer, and other continuous-duty applications requiring a 1750 RPM centrifugal pump.

Specifications:

• Model: 4201-95
• Previous Model: 420A-95
• Horsepower: 5 HP
• Speed: 1750 RPM
• Phase: 3 Phase
• Voltage: 208-230/460 VAC
• Frequency: 60 Hz
• Full Load Amps: 22/11 A
• Motor Frame: 182JM
• Motor Enclosure: TEFC
• Suction: 2" NPT Female
• Discharge: 1-1/2" NPT Female
• Construction: Cast Iron
• Impeller: Silicon Bronze
• Mechanical Seal: Viton® / Silicon Carbide / Carbon
• Case Wear Ring: Bronze
• Shaft Sleeve: Bronze
• Maximum Casing Pressure: 175 PSI
• Maximum Liquid Temperature: 200°F
• Maximum Solids: 1/4" diameter
• Pump Type: Straight Centrifugal / End Suction
• Pump Speed: 1750 RPM
• Shipping Weight: 215 lb
• Manufacturer: AMT Pump Company
• Brand: AMT / A Gorman-Rupp Company
