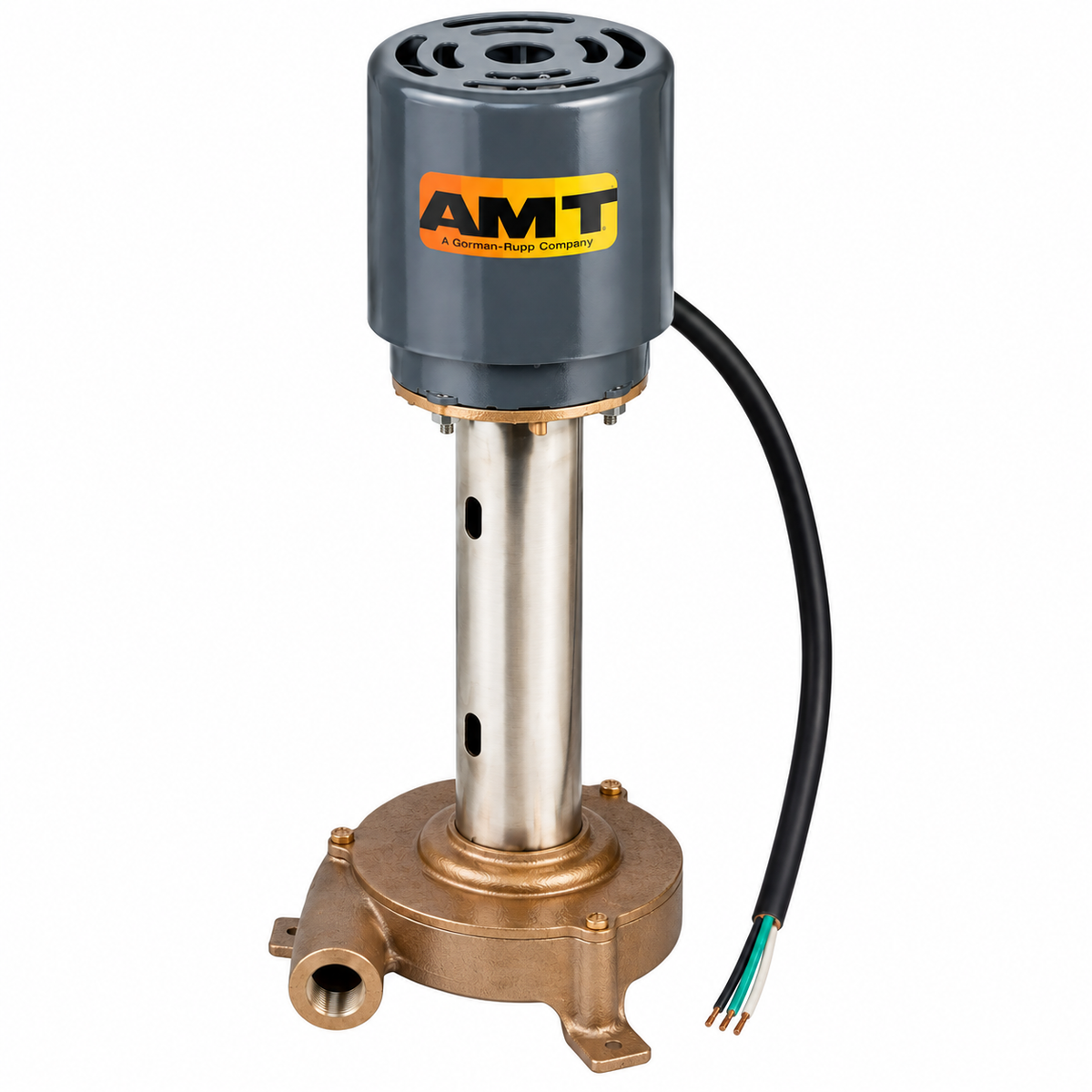

AMT 4230-97 Coolant Recirculating Pump (1/25 HP, Single Phase, 115V, TEFC, Bronze, 3/8" NPT Discharge Port)

The AMT 4230-97 is a compact bronze coolant and recirculating pump designed for industrial and commercial coolant, cleaning solution, and liquid recirculation applications. Its cast bronze construction, bronze self-cleaning open impeller, and brass column and impeller shaft provide durability for applications involving erosive liquids and fine contaminants.

The pump features no bottom bearing, helping reduce wear when handling liquids containing fine contaminants. A 36-inch, 3-conductor power cord is included.

The 4230-97 is powered by a 1/25 HP, 115 VAC, single-phase, 1,590 RPM TEFC motor and provides up to 8 GPM and 10 feet of maximum head. The pump has a 3/8" NPT female discharge and is designed for nonflammable liquids compatible with the pump's materials.

** NOTE: The motor on this pump is not intended to be submerged in liquid. The liquid level should always be at least 2" below motor bottom. (Maximum depth of liquid is 6".)**

Features:

• Cast bronze construction
• No bottom bearing
• Bronze self-cleaning open impeller
• Brass column and impeller shaft
• 3/8" NPT female discharge
• Fiber gasket
• 1/25 HP TEFC motor
• 115 VAC, single phase
• 1,590 RPM
• 36" 3-conductor power cord included
• Designed for fine contaminants and erosive liquids
• Maximum liquid temperature of 200°F
• Maximum flow of 8 GPM
• Maximum head of 10 ft.
• Maximum recommended viscosity: 900 SSU
• QSP – Quick Ship Pump

Applications:

Industrial coolant circulation, commercial coolant circulation, cleaning solutions, machine-tool coolant systems, liquid recirculation, process applications, and general-purpose circulation of compatible nonflammable liquids.

Specifications:

• Model: 4230-97
• Horsepower: 1/25 HP
• Phase: Single Phase
• Voltage: 115 VAC
• Frequency: 60 Hz
• Motor: TEFC
• Speed: 1,590 RPM
• Full Load Amps: 1.50 A
• Construction: Cast Bronze
• Impeller: Bronze Self-Cleaning Open Impeller
• Column: Brass
• Impeller Shaft: Brass
• Discharge: 3/8" NPT Female
• Maximum Flow: 8 GPM
• Maximum Head: 10 ft.
• Maximum Liquid Temperature: 200°F
• Maximum Recommended Viscosity: 900 SSU
• Bottom Bearing: None
• Power Cord: 36" 3-Conductor
• Shipping Weight: 9 lb
• Dimensions: 6.0" × 2.0" × 5.3" × 4.4" × 12.4"
