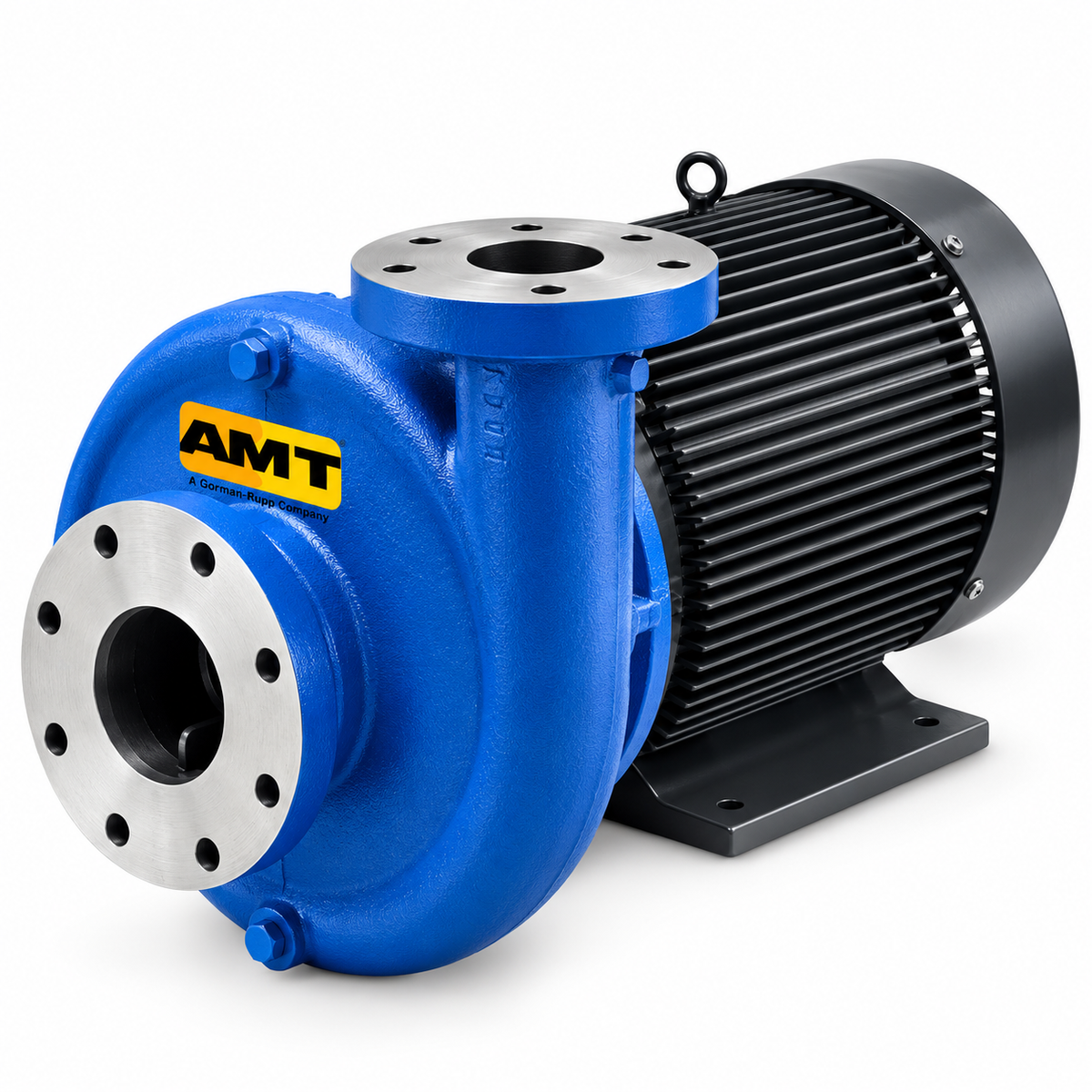

AMT 4301-95 Straight Centrifugal Pump replaced 430A-95 (30 HP, 3-Phase, TEFC, 1750 RPM, 286JM, 208-230/460V, 6" Suction x 4" Discharge)

The AMT 4301-95 (replaced 430A-95) is a heavy-duty 30 HP, 1750 RPM straight centrifugal pump designed for industrial and commercial liquid-transfer applications. This cast iron solids-handling pump features a stainless steel precision-cast dynamically balanced impeller, Viton® silicon carbide/carbon mechanical seal, and a pull-from-rear design that allows servicing without disturbing the connected piping.

The pump features a 6" suction and 4" discharge with standard 125 lb. flanged connections and 1/4" NPT gauge taps on both suction and discharge ports for system monitoring. The pump requires flooded suction and positive suction pressure and can handle solids up to 1/4" diameter.

Features:

• 30 HP
• 1750 RPM
• 3-Phase
• 208-230/460 VAC
• 60 Hz
• 286JM TEFC motor
• 80/36 Full Load Amps
• Cast iron construction
• Stainless steel precision-cast dynamically balanced impeller
• Viton® silicon carbide/carbon mechanical seal
• Stainless steel shaft sleeve
• 6" x 4" flanged suction and discharge
• 125 lb. 8-bolt suction flange
• 125 lb. 4-bolt discharge flange
• Pull-from-rear design
• 1/4" NPT gauge taps on suction and discharge
• Maximum casing pressure: 175 PSI
• Maximum liquid temperature: 200°F
• Maximum solids handling: 1/4" diameter
• Seal flush/air relief valve included
• Front drain plugs
• TEFC JM NEMA frame IE2/EPAC energy-efficient motor
• Requires flooded suction and positive suction pressure

Applications:

Industrial water transfer, commercial water systems, process water, industrial circulation, cooling water, irrigation, liquid transfer, solids-handling applications, and general industrial pumping applications.

Specifications:

• Model: 4301-95
• Pump Type: Straight Centrifugal Pump
• Horsepower: 30 HP
• Speed: 1750 RPM
• Phase: 3 Phase
• Voltage: 208-230/460 VAC
• Frequency: 60 Hz
• Full Load Amps: 80/36 A
• Motor Frame: 286JM
• Motor Enclosure: TEFC
• Construction: Cast Iron
• Impeller: Stainless Steel Precision Cast, Dynamically Balanced
• Mechanical Seal: Viton® Silicon Carbide/Carbon
• Suction: 6" 125 lb. 8-Bolt Flange
• Discharge: 4" 125 lb. 4-Bolt Flange
• Gauge Taps: 1/4" NPT Suction & Discharge
• Shaft Sleeve: Stainless Steel
• Maximum Casing Pressure: 175 PSI
• Maximum Liquid Temperature: 200°F
• Maximum Solids: 1/4" Diameter
• Installation: Flooded Suction / Positive Suction Pressure
