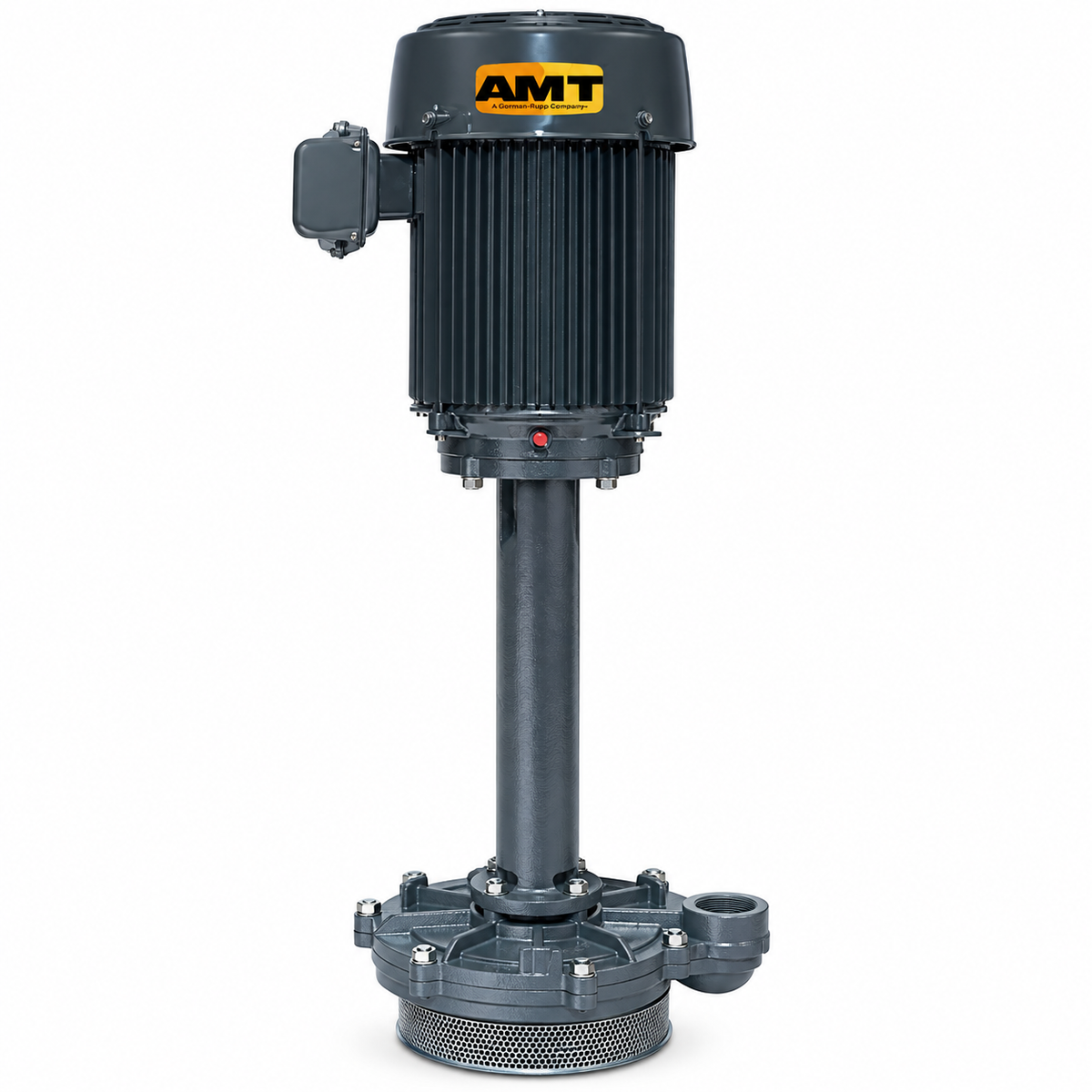

AMT 4445-95 Vertical Sealless Sprayer/Washer Pump (3 HP, Single Phase, TEFC, 230V, Discharge 1-1/2" NPT)

AMT 4445-95 Vertical Sealless Sprayer/Washer Pump is a heavy-duty immersion pump designed for sediment-laden liquids and demanding OEM, automotive, industrial washing machine, parts cleaner, spray booth, and cooling tower applications. The pump is designed for pumping dirty water and liquid cleaning solutions.

The 4445-95 features cast iron construction with a 300 Series investment-cast stainless steel impeller, a stainless steel pump shaft, stainless steel suction screen, and a no-bottom-bearing design. The dual-volute construction reduces radial load on the motor, while the stainless steel impeller provides resistance to erosion from abrasive liquids.

**Product image is for reference only. Actual product may vary slightly due to manufacturer updates or production changes.

Features:

• Cast iron construction
• 300 Series investment-cast stainless steel impeller
• Stainless steel pump shaft
• Stainless steel suction screen
• No bottom bearing
• Dual-volute design reduces radial load on motor
• Heavy-duty universal mounting plates included
• 56C shaft motor
• 3 HP TEFC motor
• 3450 RPM
• Vertical immersion design
• Maximum liquid temperature: 200°F
• Maximum flow: 90 GPM
• Maximum head: 85 ft. (37 PSI)
• Maximum recommended viscosity: 100 SSU
• 1-1/2" NPT female discharge
• Designed for nonflammable liquids compatible with pump materials

Applications:

Automotive washing equipment, industrial washing machines, parts cleaners, spray booths, cooling towers, dirty water circulation, liquid cleaning solutions, sediment-laden liquids, industrial process equipment, OEM equipment, and general immersion pumping applications.

Specifications:

• Model: 4445-95
• Horsepower: 3 HP
• Phase: Single Phase
• Voltage: 230 VAC @ 60 Hz
• Full Load Amps: 14 A
• Motor: TEFC
• Motor Frame: 56C
• RPM: 3450
• Pump Type: Vertical Sealless Sprayer/Washer
• Construction: Cast Iron
• Impeller: 300 Series Investment-Cast Stainless Steel
• Pump Shaft: Stainless Steel
• Discharge: 1-1/2" NPT Female
• Maximum Flow: 90 GPM
• Maximum Head: 85 ft. (37 PSI)
• Maximum Liquid Temperature: 200°F
• Maximum Recommended Viscosity: 100 SSU
• Bottom Bearing: None
• Suction Screen: Stainless Steel
• Mounting: Heavy-Duty Universal Mounting Plates
• Shipping Weight: 78 lb
