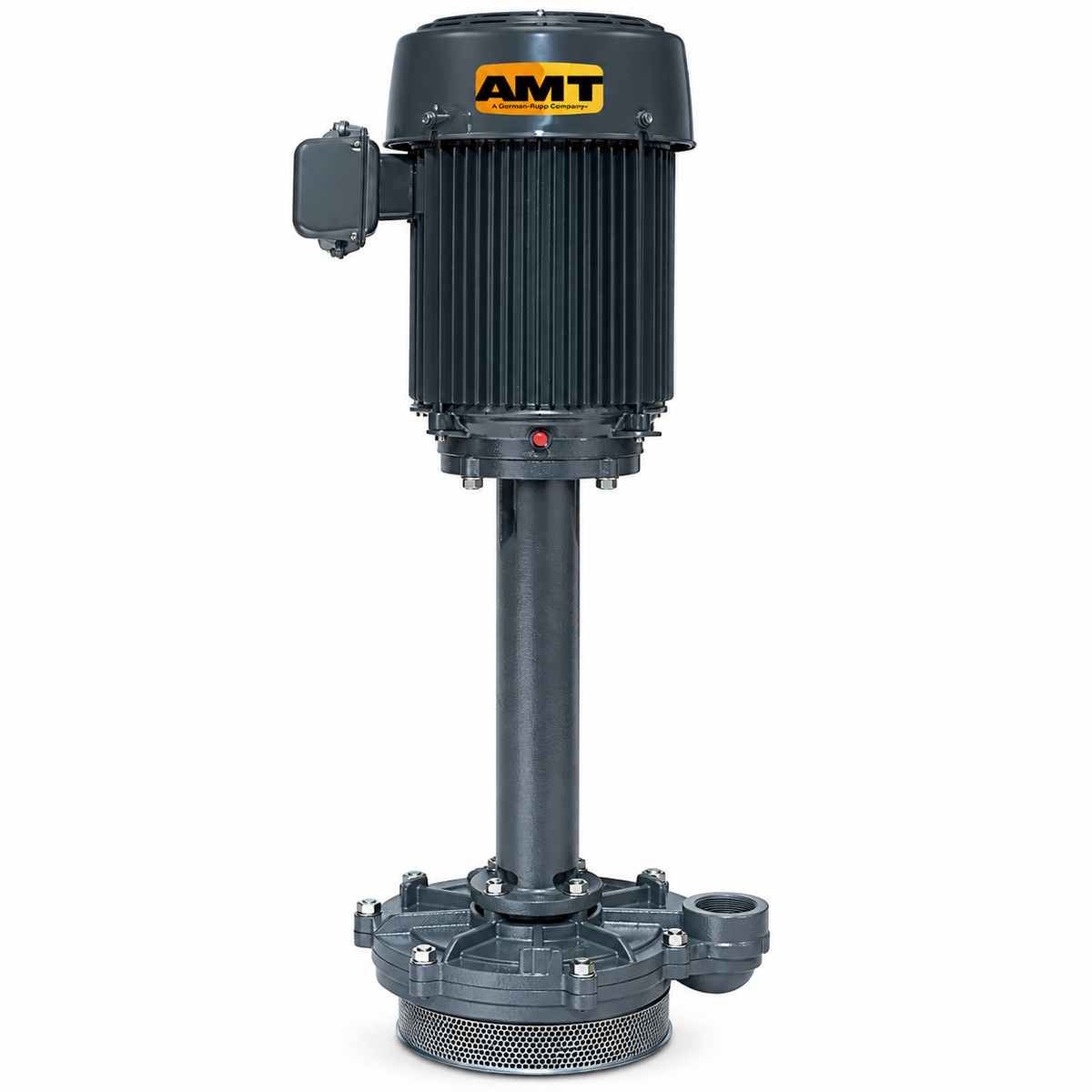

AMT 4446-95 Vertical Sealless Sprayer/Washer Pump (3 HP, Three Phase, TEFC, 230/460V, Discharge 1-1/2" NPT)

AMT 4446-95 Vertical Sealless Sprayer/Washer Pump is a heavy-duty immersion pump designed for sediment-laden liquids and demanding OEM, automotive, industrial washing machine, parts cleaner, spray booth, and cooling tower applications. It is designed for pumping dirty water and liquid cleaning solutions.

The 4446-95 uses cast iron construction with a 300 Series investment-cast stainless steel impeller, stainless steel pump shaft, stainless steel suction screen, and a no-bottom-bearing design. Its dual-volute construction reduces radial load on the motor and the stainless steel impeller is designed to resist erosion from abrasive liquids.

**Product image is for reference only. Actual product may vary slightly due to manufacturer updates or production changes.

Features:

• Cast iron construction
• 300 Series investment-cast stainless steel impeller
• Stainless steel pump shaft
• Stainless steel suction screen
• No bottom bearing
• Dual-volute design reduces radial load on motor
• Heavy-duty universal mounting plates included
• 56C shaft motor
• 3 HP TEFC motor
• 3450 RPM
• Vertical immersion design
• Maximum liquid temperature: 200°F
• Maximum flow: 90 GPM
• Maximum head: 85 ft. (37 PSI)
• Maximum recommended viscosity: 100 SSU
• 1-1/2" NPT female discharge
• Designed for nonflammable liquids compatible with pump materials

Applications:

Automotive washing equipment, industrial washing machines, parts cleaners, spray booths, cooling towers, dirty water circulation, liquid cleaning solutions, sediment-laden liquids, industrial process equipment, OEM equipment, and general immersion pumping applications.

Specifications:

• Model: 4446-95
• Horsepower: 3 HP
• Phase: Three Phase
• Voltage: 230/460 VAC @ 60 Hz
• Full Load Amps: 8/4 A
• Motor: TEFC
• Motor Frame: 56C
• RPM: 3450
• Pump Type: Vertical Sealless Sprayer/Washer
• Construction: Cast Iron
• Impeller: 300 Series Investment-Cast Stainless Steel
• Pump Shaft: Stainless Steel
• Discharge: 1-1/2" NPT Female
• Maximum Flow: 90 GPM
• Maximum Head: 85 ft. (37 PSI)
• Maximum Liquid Temperature: 200°F
• Maximum Recommended Viscosity: 100 SSU
• Bottom Bearing: None
• Suction Screen: Stainless Steel
• Mounting: Heavy-Duty Universal Mounting Plates
• Shipping Weight: 73 lb
