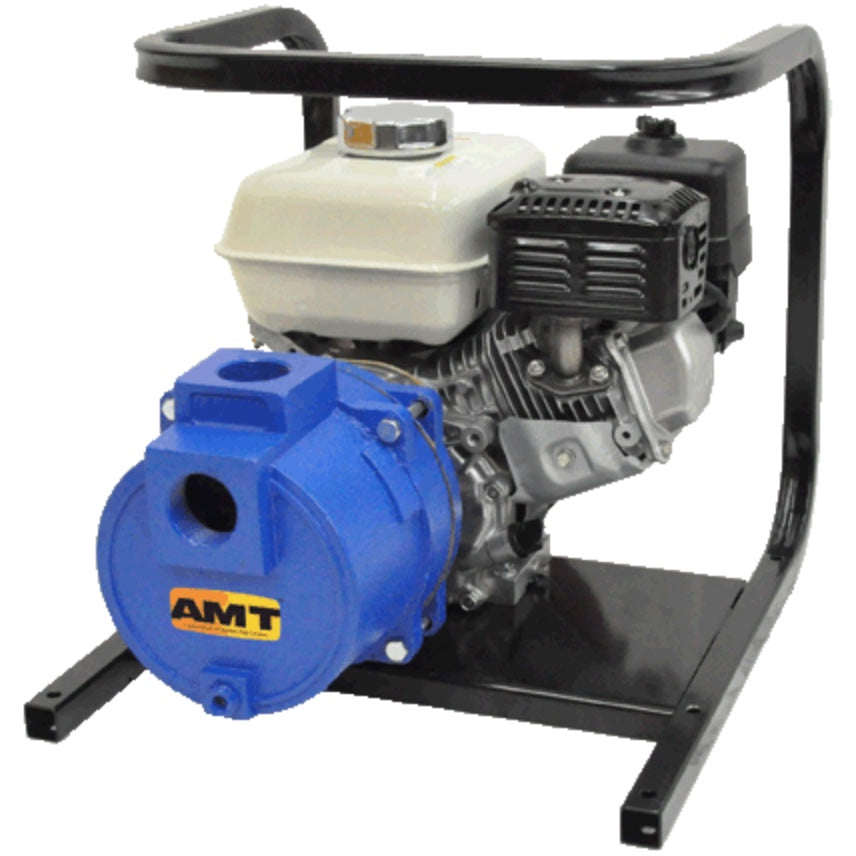

AMT 4789-95 1-1/2" Cast Iron Self-Priming Engine Driven High Pressure Sprinkler Pump (Two-Stage, Honda GX160 Engine, Buna-N Seal)
AMT 4789-95 1-1/2" Cast Iron Self-Priming Engine Driven High Pressure Sprinkler Pump (Two-Stage, Honda GX160 Engine, Buna-N Seal)
SKU:4789-95
Couldn't load pickup availability
AMT 4789-95 1-1/2" Cast Iron Self-Priming Engine Driven High Pressure Sprinkler Pump is designed, manufactured and tested in the USA. This model is a two-stage pump and equipped with a Honda GX160 engine. A strong cast iron body increases durability while the Buna-N mechanical seal prolongs the longevity. AMT Pump Company is a subsidiary of The Gorman-Rupp Company.
Specifications:
-
Pump Body: Cast Iron
- Two-Stage
-
Mechanical Seal: Buna-N Seal
- Maximum Flow Rate: 68 gpm - See Performance Chart
-
Ports: 1-1/2" NPT
- Engine: 5 HP - Honda GX160
- Weight: 100 lbs
The AMT line of Engine Driven High Pressure pumps is designed for lawn sprinkling, agricultural spraying, dewatering, fire fighting, emergency water supply and pressure boosting. Two-stage models feature cast iron diffusers and 300 series stainless steel investment cast impellers for high efficiency producing up to 90 PSI that generally requires 8 horsepower or more from a single stage pump. Pumps offer a broad selection of gasoline engines from the leading engine manufacturer with dependable service worldwide. All models include: cast iron pipe nipples, 90° discharge elbow, strainer/foot valve and rugged heavy duty steel roll frame for protection and durability.
Series Features:
- Cast Iron Construction with Stainless Steel Closed Impellers
- Buna-N Mechanical Seal and O-ring
- Stainless Steel High Efficiency Closed Impellers
- Two NPT Pipe Nipples
- Self-primes to 10 Ft. Without Foot Valve
- Replaceable Volute/Diffuser
- Maximum Temperature 180° F
- Maximum Working Pressure 150 PSI
- Delivers up to 68 GPM
- Strainer/Foot Valve Included
- Optional Wheel Kit Available
