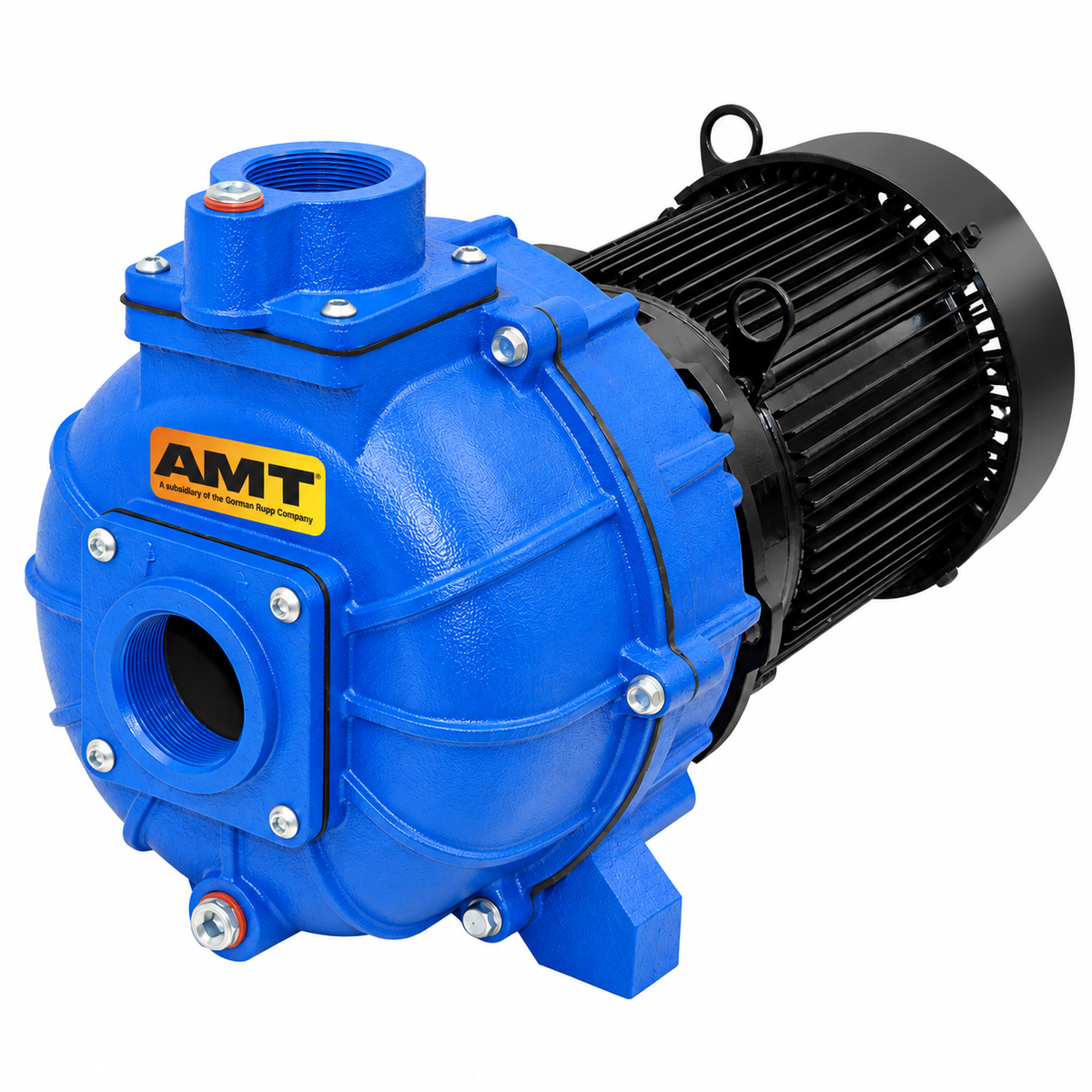

AMT 4802-95 2" Self-Priming High Pressure Pump (7.5 HP, 3 Phase, 208-230/460V, TEFC, 184JM)

The AMT 4802-95 is a 2" self-priming high-pressure centrifugal pump powered by a 7.5 HP, three-phase TEFC motor. Its two-stage, dual closed-vane aluminum impeller design is engineered for higher-pressure applications including irrigation, sprinkler and booster service, dewatering, and fire protection. An optional mounting base is available (A200-90).

The pump features cast iron construction, a Viton mechanical seal with silicon carbide and carbon faces, and a built-in EPR/EPDM check valve that permits self-priming up to 20 feet. It has 2" NPT suction and discharge connections and is close-coupled to a 184JM motor.

Series Features:

• Cast Iron Construction with Dual Closed Vane Aluminum Impellers
• Viton Mechanical Seal with Silicon Carbide and Carbon Faces
• Built-In EPR/EPDM Check Valve Permits Self-Priming up to 20 Ft.
• Closed Vane Aluminum Impeller Design for High-Pressure Performance
• Fill and Drain Plugs for Easy Installation and Servicing
• 2" NPT Suction and Discharge Ports
• Maximum Temperature: 180°F
• Maximum Working Pressure: 150 PSI
• Maximum Flow: 122 GPM
• Maximum Head: 270 Ft. (116 PSI)
• 7-1/2 to 10 HP TEFC, Single- and Three-Phase Motors
• Optional Mounting Base Available (A200-90) on All Models
• QSP – Quick Ship Product for Many Models

Specifications:

• Model: 4802-95
• 7.5 HP
• 3 phase
• 208-230/460V
• TEFC motor
• 184JM frame
• 22/11 full-load amps
• 2" NPT suction
• 2" NPT discharge
• Maximum liquid temperature 180°F
• Maximum working pressure 150 PSI
• Maximum flow 122 GPM
• Maximum head 270 ft (116 PSI)
• Self-priming up to 20 ft
• Weight 160 lb.
