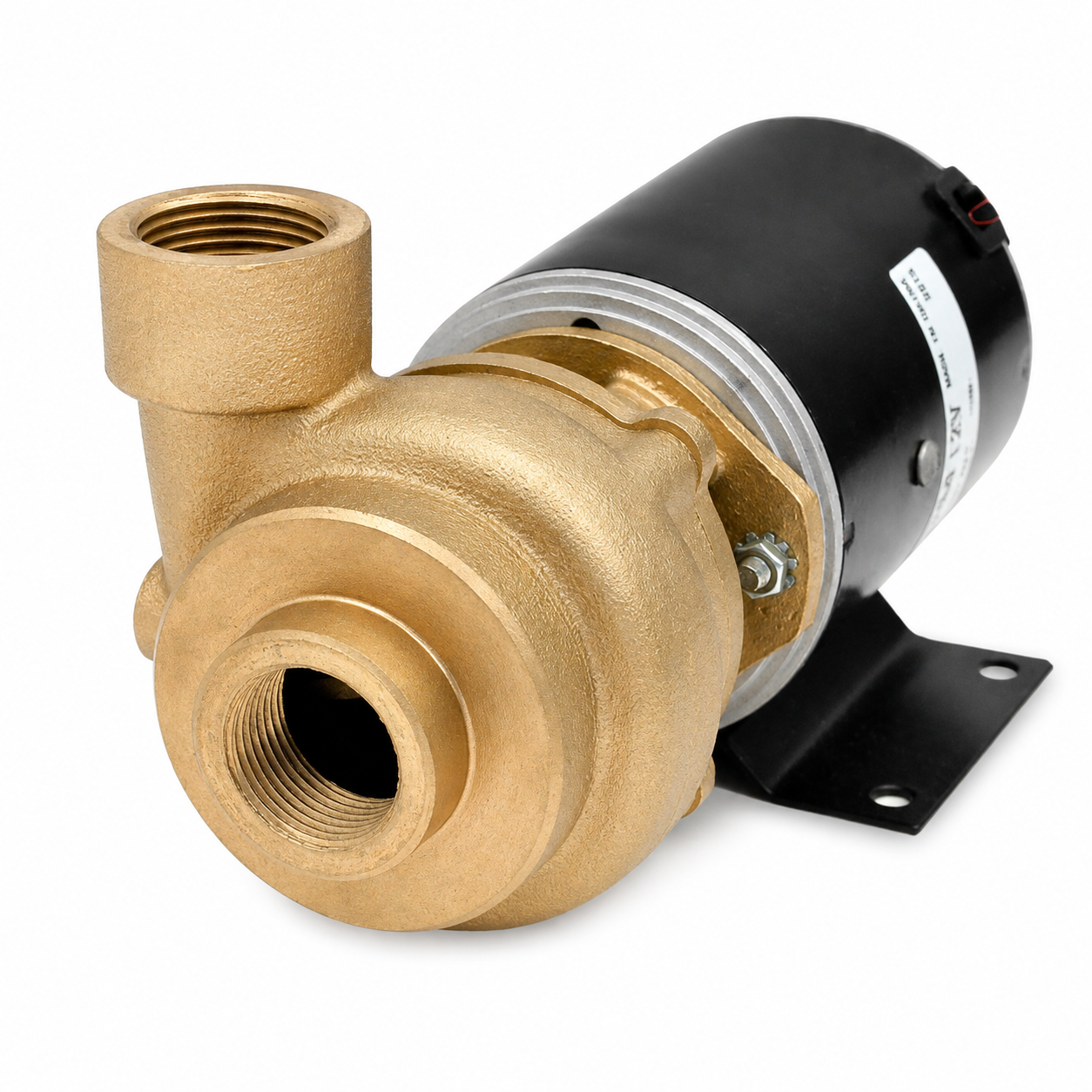

AMT 4861-97 Bronze Marine Centrifugal Pump (1/8 HP, 12V DC, 3/4" NPT)

The AMT 4861-97 Bronze Marine Centrifugal Pump (replaces the old 4860-97) is a compact 12V DC pump designed for general dewatering, saltwater live-well applications, circulation and compatible chemical transfer. Its compact size and DC motor make it particularly useful in marine and mobile installations where conventional AC power may not be available.

The pump features rugged bronze construction, a Buna-N mechanical seal and O-ring, and a self-cleaning semi-open impeller designed to handle dirty water and liquids containing small solids or debris. It has 3/4" female NPT suction and discharge connections and can handle solids up to 3/16" diameter.

Power is provided by a 1/8 HP, 12.8V DC, 3700 RPM TENV motor drawing 9 full-load amps.

***Important: The 4861-97 is not self-priming and requires flooded suction.***

Features:

• Bronze pump construction
• 1/8 HP
• 12.8V DC motor
• 3700 RPM
• TENV motor enclosure
• 3/4" female NPT suction
• 3/4" female NPT discharge
• Compact marine design
• Suitable for saltwater applications
• Designed for live-well circulation
• General dewatering capability
• Compatible chemical-transfer applications
• Self-cleaning semi-open impeller
• Handles solids up to 3/16"
• Buna-N mechanical seal and O-ring
• 50 PSI maximum working pressure
• 180°F maximum liquid temperature
• Flooded suction required
• Not self-priming

Specifications:

• Manufacturer: AMT Pump Company
• Model: 4861-97
• Series: Bronze Marine Pumps
• Pump Type: Centrifugal
• Horsepower: 1/8 HP
• Voltage: 12.8V DC
• Speed: 3700 RPM
• Motor Enclosure: TENV
• Full Load Amps: 9A
• Suction: 3/4" Female NPT
• Discharge: 3/4" Female NPT
• Maximum Solids: 3/16"
• Maximum Working Pressure: 50 PSI
• Maximum Liquid Temperature: 180°F
• Construction: Bronze
• Mechanical Seal: Buna-N
• Impeller: Self-Cleaning Semi-Open
• Length: 7.3"
• Width: 4.0"
• Height: 4.1"
• Shipping Weight: 7 lbs.
• Self-Priming: No
• Suction Requirement: Flooded suction
