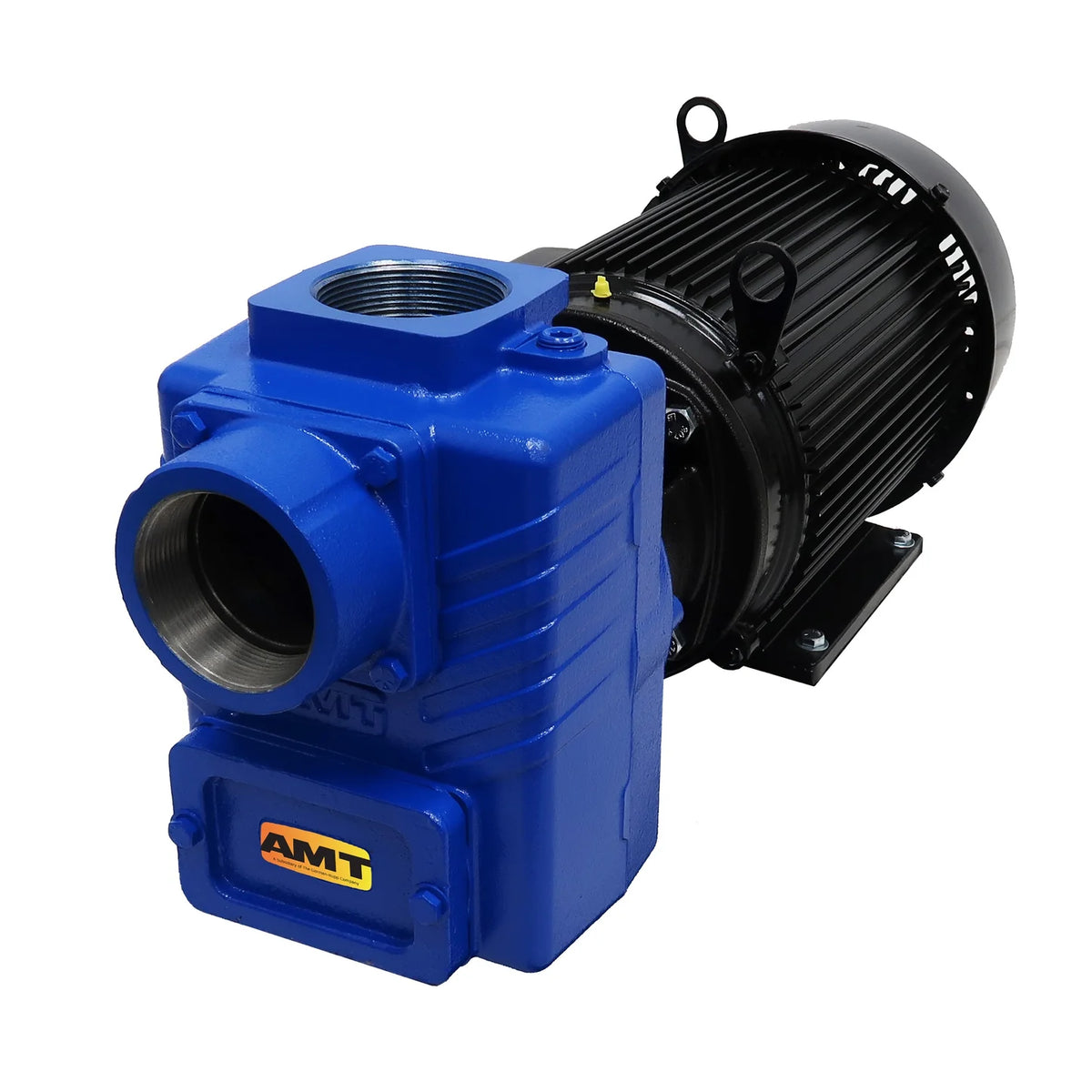

AMT 4872-95 4" Self-Priming Centrifugal Pump (15 HP, 208-230/460V, 3 Phase, 215JM, Suction 4" and Discharge 4")

The AMT 4872-95 is the 15 HP model in AMT's 4" self-priming centrifugal pump series. It is equipped with a 208-230/460V three-phase motor and operates on the higher-performance Curve B. It is designed for high-capacity dewatering, liquid transfer, circulation, drainage, and irrigation service. AMT Pump Company

Its cast-iron construction incorporates a self-cleaning semi-open stainless-steel impeller capable of passing 1/2" diameter semi-solids. The dual-volute casing helps reduce radial motor loading, while the built-in check valve assists with fast priming.

Features:

• Cast Iron Construction with Stainless Steel Impeller
• Buna-N Mechanical Seal and O-Ring
• 4" Female NPT Suction and Discharge
• Self-Cleaning Semi-Open Impeller
• Maximum Solids Handling: 1/2"
• Maximum Series Flow: 660 GPM
• Maximum Series Head: 114 Ft.
• Maximum Working Pressure: 125 PSI
• Maximum Liquid Temperature: 180°F
• Self-Priming up to 20 Ft.
• Dual Volute Design Reduces Radial Load
• Fill and Drain Plug for Easy Servicing
• Optional Silicon Carbide Seal Available
• Optional Viton® Mechanical Seal and Flapper Valve Available
• Optional A200-90 Mounting Base

Exact Model Specifications

• Model: 4872-95
• Performance Curve: B
• Horsepower: 15 HP
• Phase: 3 Phase
• Voltage: 208-230/460V
• Full Load Amps: 36/18A
• Motor Frame: 215JM
• Suction: 4" Female NPT
• Discharge: 4" Female NPT
• Length: 32.0"
• Width: 15.0"
• Height: 16.0"
• Shipping Weight: 310 lb
