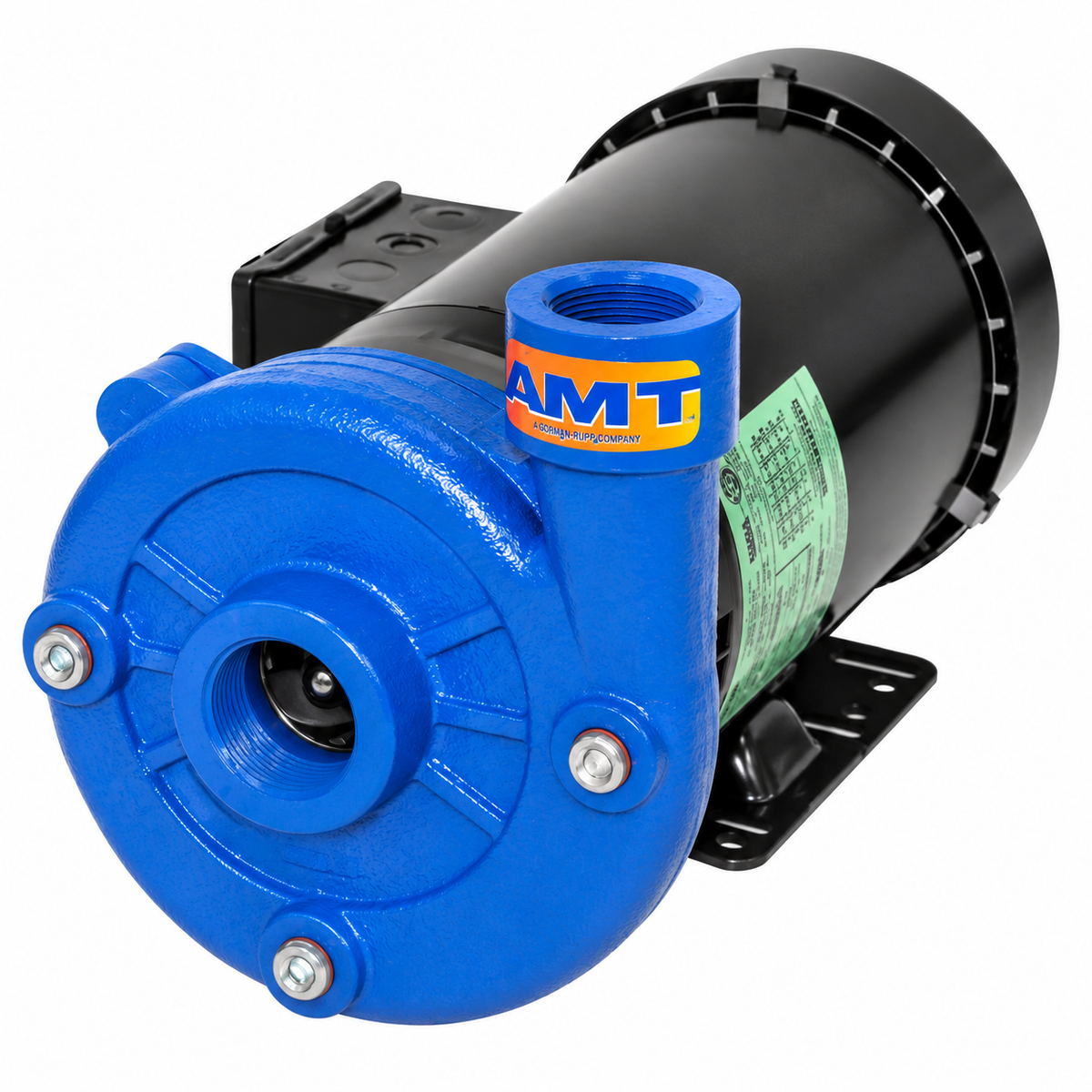

AMT 5021-95 Straight Centrifugal Pump Cast Iron (1.5 HP, 208-230/460V, Three Phase)

The AMT 5021-95 Cast Iron is a heavy-duty straight centrifugal pump designed for continuous-duty OEM, industrial, commercial and processing applications. It features cast iron, a stainless-steel impeller and Viton silicon carbide mechanical seal. The pump is non-self-priming and requires flooded suction.

Features:

• Heavy-Duty Straight Centrifugal Pump
• Stainless Steel Impeller
• Viton® Silicon Carbide Mechanical Seal and O-Ring
• Optional EPDM/EPR Mechanical Seals Available
• Two-Piece Impeller for Easier Cleaning and Service
• Stainless Steel Motor Shaft and Hardware
• NEMA TEFC Motor
• NEMA Base-Mounted Motor
• Discharge Rotates in 90° Increments
• Pull-From-Rear Design Allows Servicing Without Disturbing Piping
•  Maximum Working Pressure: 150 PSI
•  Maximum Liquid Temperature: 200°F
•  Maximum Solids Handling: 1/8" Diameter
•  Three Front Drain Plugs Located 90° Apart
•  Non-Self-Priming — Requires Flooded Suction
•  Designed for Continuous-Duty Applications

Specifications:

• Model: 5021-95
• Curve: B
• Horsepower: 1.5 HP
• Phase: Three Phase
• Voltage: 208-230/460V
• Full Load Amps: 6/3A
• Motor: TEFC
• Speed: 3450 RPM at 60 Hz
• Suction: 1-1/4" Female NPT
• Discharge: 1" Female NPT
• Construction: Cast Iron
• Impeller: Stainless Steel
• Seal: Viton Silicon Carbide
• Maximum Solids: 1/8"
• Maximum Working Pressure: 150 PSI
• Maximum Temperature: 200°F
• Shipping Weight: 55 lb
