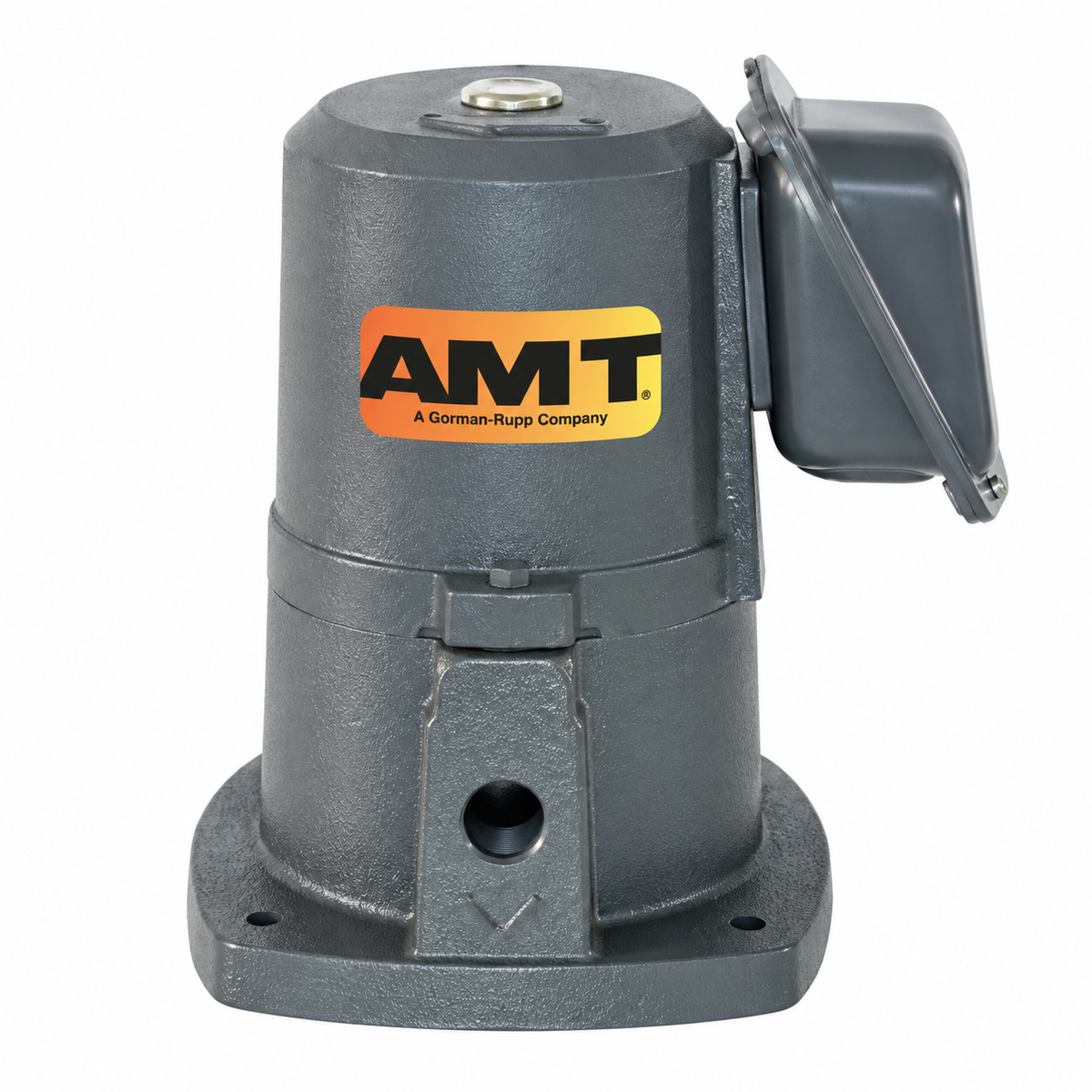

AMT 5340-95 Suction Coolant/Oil Pump (1/8 HP, 115/230V, Single Phase, 3/8" NPT)

The AMT 5340-95 is a suction-type interchangeable coolant and oil pump designed as an economical replacement for pumps supplied on domestic and imported machine tools. It is designed for circulating coolant and spraying cutting oil and features cast iron construction, a stainless steel semi-open impeller, carbon steel shaft, and carbon/ceramic shaft seal. The pump must be mounted above the liquid level and provides up to 2 ft maximum suction lift.

Specifications:
• Model: 5340-95
• Series: 534 Series
• Pump Type: Suction
• Performance Curve: A
• Horsepower: 1/8 HP
• Phase: Single Phase
• Voltage: 115/230 VAC, 60 Hz
• Full Load Amps: 0.7/0.35A
• Motor: Totally Enclosed
• Speed: 3450 RPM
• Connection: 3/8" NPT
• Construction: Cast Iron
• Impeller: Stainless Steel, Semi-Open
• Shaft: Carbon Steel
• Shaft Seal: Carbon/Ceramic
• Maximum Suction Lift: 2 ft
• Maximum Liquid Temperature: 180°F
• Maximum Recommended Viscosity: 500 SSU
• Shipping Weight: 14 lb

Features:
Cast Iron Construction, Stainless Steel Semi-Open Impeller, Carbon Steel Shaft, Carbon/Ceramic Shaft Seal, Totally Enclosed Motor, Sealed Permanently Lubricated Motor Bearings, 2 ft Maximum Suction Lift, Fine Contaminant Handling, Machine Tool Replacement Pump.

Applications:
Machine Tools, Coolant Circulation, Cutting Oil Spraying, Grinders, Metalworking Equipment, Industrial Machinery, Machine Coolant Systems.
