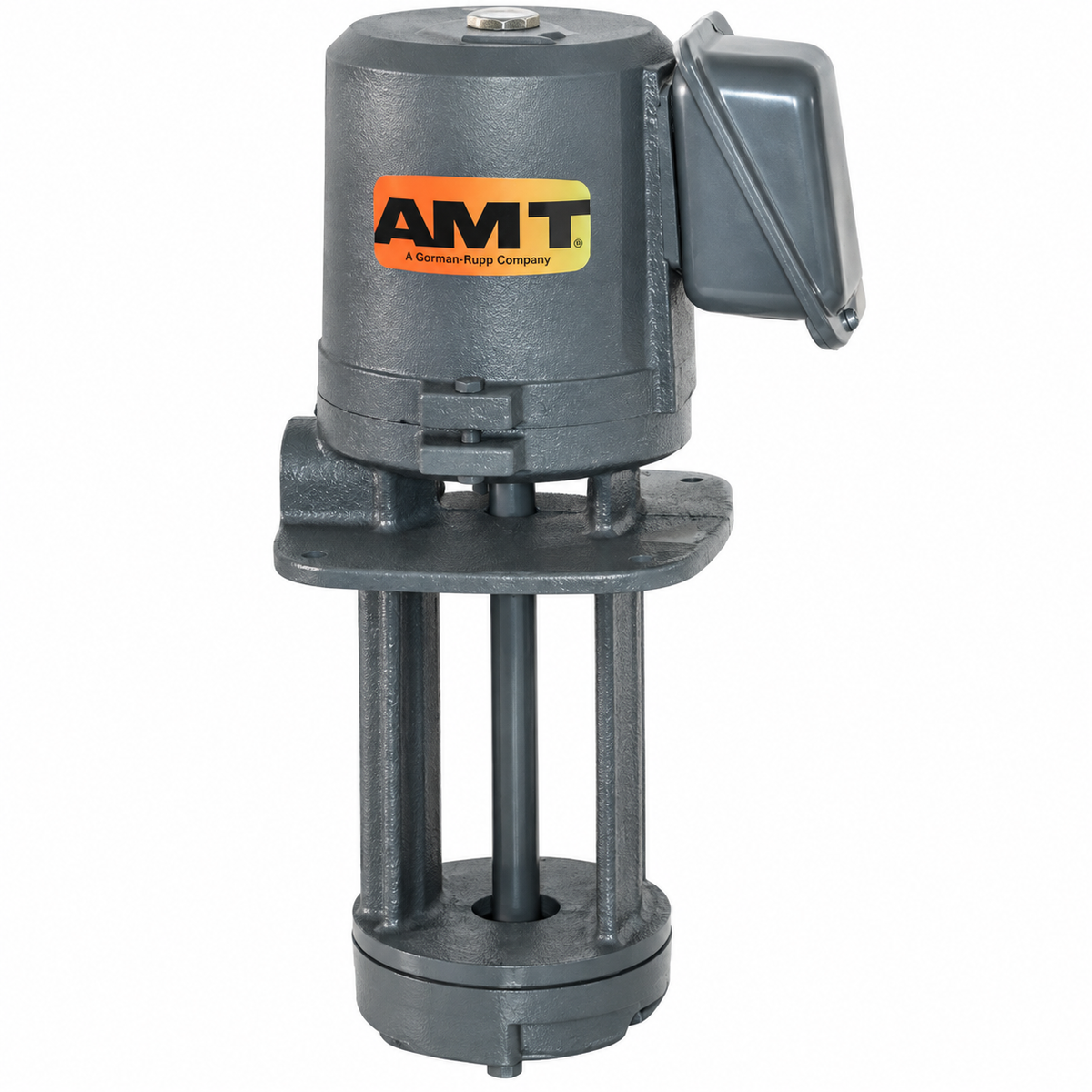

AMT 5410-95 Immersion Coolant/Oil Pump (3/4 HP, 230/460V, Three Phase, 1" NPT)

The AMT 5410-95 is a compact 3/4 HP immersion coolant/oil pump designed for installation directly into machine-tool coolant reservoirs. Its sealless pump design eliminates pump bearings, seals and packing, making it particularly suitable for coolant and cutting oils containing fine contaminants.

Specifications:

• Model: 5410-95
• Series: 541 Series
• Curve: D
• Type: Immersion
• Horsepower: 3/4 HP
• Phase: Three Phase
• Voltage: 230/460 VAC, 50/60 Hz
• Full Load Amps at 60 Hz: 2.6/1.6A
• Motor: Totally Enclosed
• Speed: 3450 RPM at 60 Hz
• Connection: 1" NPT
• Construction: Cast Iron
• Impeller: Stainless Steel, Semi-Open
• Shaft: Carbon Steel
• Design: Sealless
• Immersion Dimension J: 5.8"
• Pumps Liquid Down To: 2"
• Maximum Temperature: 180°F
• Maximum Recommended Viscosity: 500 SSU
• Shipping Weight: 48 lb

Series Features:

• Fully Interchangeable with Units Furnished on Most Imported Machine Tools
• Designed for Coolant Circulation and Cutting Oil Spraying
• Suitable for Machine Tools, Including Grinders
• 1/8 to 1 HP Totally Enclosed Motors
• 2-Pole, 3450 RPM Motor Design
• Available with Single-Phase or Three-Phase Motors
• Cast Iron Construction
• Stainless Steel Semi-Open Impeller
• Carbon Steel Shaft
• Designed for Solids Handling and Fine Contaminants
• Maximum Liquid Temperature: 180°F
• Maximum Series Flow: 56 GPM with Water
• Maximum Series Head: 60 Ft. with Water
• Maximum Recommended Liquid Viscosity: 500 SSU
• Designed for Nonflammable Liquids Compatible with Pump Component Materials
• Sealed, Permanently Lubricated Motor Bearings
• Economical Replacement for Coolant/Oil Pumps Used on Domestic and Imported Machine Tools
• Designed for Industrial Machine Tool and Metalworking Applications

Additional Immersion Pump Features:
• Sealless Pump Design
• No Pump Bearings, Seals, or Packing Required
• Ideally Suited for Liquids Containing Fine Contaminants
• Suitable for Pumping Liquids Containing Fine Abrasive Material
• Pumps Liquid Levels Down to Approximately 2"

Applications:
Machine Tools, Coolant Circulation, Cutting Oil Spraying, Grinders, Metalworking Equipment, Industrial Machinery, Machine Coolant Systems.
