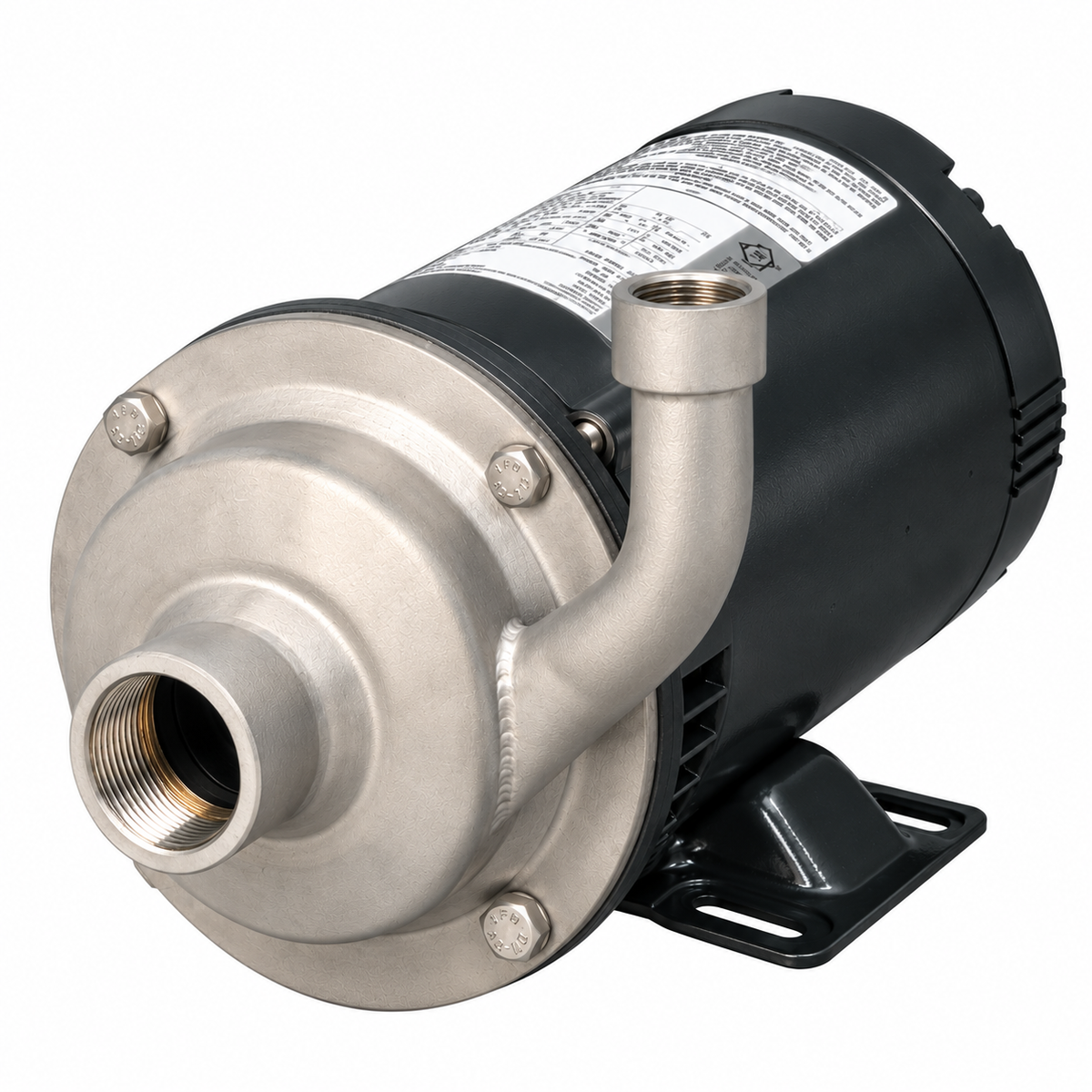

AMT 5493-98 Stainless Steel Straight Centrifugal Pump (2 HP, 230/460V, 3 Phase, 2" x 1-1/2" NPT)

The AMT 5493-98 is a 2 HP, three-phase, stainless-steel end-suction centrifugal pump for continuous-duty high-flow and high-pressure applications. It is suited for compatible chemical processing, transfer, circulation, pressure boosting and dirty-water applications.

Specifications:
• Model: 5493-98
• Performance Curve: E
• Horsepower: 2 HP
• Phase: Three Phase
• Voltage: 230/460V, 60 Hz
• Full Load Amps: 6/3A
• Motor Enclosure: TEFC
• Suction: 2" Female NPT
• Discharge: 1-1/2" Female NPT
• Construction: Stainless Steel
• Impeller: Investment-Cast Stainless Steel
• Mechanical Seal: Viton
• Maximum Solids: 1/8"
• Maximum Working Pressure: 150 PSI
• Maximum Temperature: 200°F
• Shipping Weight: 44 lb

Series Features:

• Rugged Stainless Steel Pump Construction
• Investment-Cast Stainless Steel Closed Impeller
• Viton Mechanical Seal and O-Ring
• Optional Buna-N Seal and O-Ring Available
• Stainless Steel Motor Shaft and Hardware
• Cast Iron Motor Adapter for Rigid Motor Mounting
• Aerospace Fusion-Welded Construction
• Solids-Handling and Dirty-Water Design
• Handles Solids up to 1/8" Diameter
• Chemical-Resistant Design
• Discharge Port Rotates in 90° Increments
• NEMA Base-Mounted Motors
• Continuous-Duty Design
• Maximum Working Pressure: 150 PSI
• Maximum Liquid Temperature: 200°F
• Non-Self-Priming — Requires Flooded Suction
• Designed for Nonflammable Liquids Compatible with Pump Materials

Applications:
Chemical Processing, Liquid Transfer, Pressure Boosting, Water Circulation, Dirty Water, Industrial Water Transfer, Process Liquids, Commercial Water Systems, Industrial Circulation
