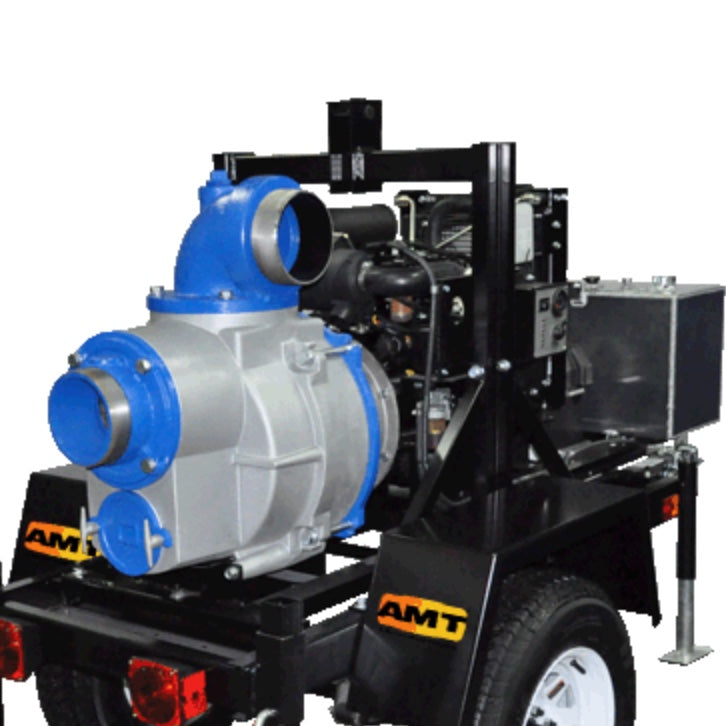

AMT 5586-H6 Skid Mounted 6" Aluminum Self-Priming Engine Driven Trash Pump (Honda V-Twin OHV Engine, Viton®/Silicon Carbide Seal) **Trailer Not Included**
AMT 5586-H6 Skid Mounted 6" Aluminum Self-Priming Engine Driven Trash Pump (Honda V-Twin OHV Engine, Viton®/Silicon Carbide Seal) **Trailer Not Included**
SKU:5586-H6
Couldn't load pickup availability
AMT 5586-H6 Skid Mounted 6" Aluminum Self-Priming Engine Driven Trash Pump is designed, manufactured and tested in the USA. This model is the skid mounted version. Heavy-duty trailer option available - please see part number 5585-H6. Honda V-Twin OHV engine and powerful 6" sand cast aluminum pump allow you to complete your high flow industrial and commercial jobs with ease. The Viton®/Silicon Carbide mechanical seal prolongs the longevity of the pump. AMT Pump Company is a subsidiary of The Gorman-Rupp Company.
Specifications:
-
Pump Body: Cast Aluminum
-
Mechanical Seal: Viton®/Silicon Carbide Seal
- Maximum Flow Rate: 980 gpm - See Performance Chart
-
Ports: 6" NPT
- Engine: 23 HP - Honda V-Twin OHV - Electric Start (Battery Not Included) Requires 12 VDC; 9A1, BCI Group 24, Min. 500 CCA Battery
- Weight: 725 lbs
The AMT 6″ Engine Driven Trash Pump is designed for applications requiring high volume flow and solid/debris handling capabilities. Pump is constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented built-in slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from trailer. Digital tachometer/hourmeter installed. Requires 12 Volt Battery: BCI Group 24, Minimum of 500 CCA (Cold Crank Amps) Battery Box Cables Setup for Automotive Post Type Connection.
Series Features:
- Cast Aluminum with Cast Iron and Stainless Steel Components for Long Lasting Durability
- Silicon Carbide/Viton® Mechanical Seal and Buna-N O-rings and Check Valve
- Built-in Check Valve for Fast Priming to 20 Feet • Maximum Solids Handling 3”
- 6” NPT Port Size
- Delivers up to 1,000 GPM
- Digital Tachometer/ Hourmeter Installed
- Maximum Temperature 180° F
- 12 Volt DC Electric Start
- Available in Trailer or Skid Mounted
- D.O.T. Approved Trailer— Refer to Your State and Local Codes for Registration
- Patented Unique Slide Mechanism Permits Complete Service of Pump Without Removing Hoses or Removing Pump Components from Trailer
- Steel Suction Strainer and Nipple Included
- Seal Wash Feature for Extended Seal Life
- Cast Aluminum Casing, Seal Plate and Bell Housing
- Cast Iron Adapter, Volute and Suction and Discharge Manifold
- Trash Type Stainless Steel Impeller
- Solids Handling and Dirty Water Design
