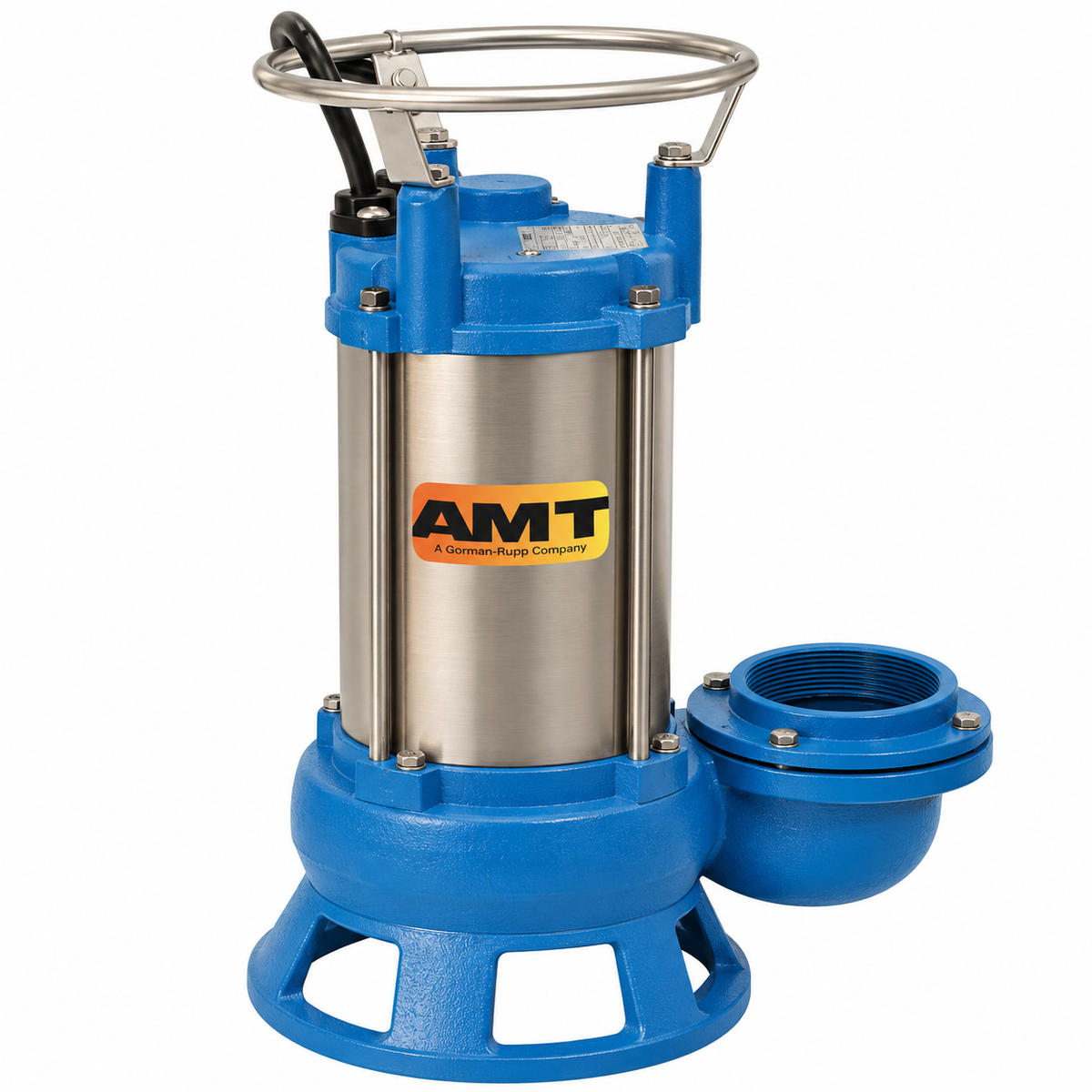

AMT 576E-95B Submersible Shredder Sewage Pump (5 HP, 4" Discharge, 400V, Three Phase, 50 Hz)

The AMT 576E-95B is a 5 HP, submersible shredder sewage pump designed for demanding wastewater and solids-handling applications. Its carbide-tipped shredder impeller works with a hardened spiral shredder mechanism to cut stringy, fibrous and sludge-type waste to reduce clogging and maintenance. The pump features rugged cast iron construction, a stainless steel motor housing and a heavy-duty sealing system for continuous-duty sewage service.

**Note: Stock photo is for reference only; actual product may vary.**

Specifications:

• Model: 576E-95B
• Performance Curve: D
• Horsepower: 5 HP
• Phase: Three Phase
• Voltage: 400V @ 50 Hz
• Full Load Amps: 8A
• Discharge: 4" Female BST
• Maximum Solids: 1.2" Diameter
• Cord Length: 10 Meters
• Dimension A: 7.5" [19.0 cm]
• Dimension B: 10.4" [26.4 cm]
• Minimum Liquid Height (C): 5.5" [14.0 cm]
• Dimension D: 6.6" [16.7 cm]
• Overall Width (W): 16.2" [40.8 cm]
• Overall Height (H): 19.7" [50.0 cm]
• Shipping Weight: 110 lb

Series Features:

• Cast Iron Construction
• Stainless Steel Motor Housing
• Carbide-Tipped Shredder Impeller
• Spiral Shredder Mechanism Plate with Surface-Hardened Cutting Area
• Designed to Cut Stringy, Fibrous and Sludge-Type Waste
• Double Mechanical Seal with Carbide Lower Seal
• Suction Screen
• Carrying Handle
• Continuous-Duty Motor
• Thermal Overload Protection on Single-Phase Models
• UL/CSA Listed
• Maximum Liquid Temperature: 104°F
• Female BST Discharge Connections
• Designed for Nonflammable Liquids Compatible with Pump Component Materials
• Minimum Liquid Level Must Remain Above 85% During Operation

Applications:

Sewage Pumping Stations, Septic Tanks, Sewage Treatment Plants, Wastewater Systems, Dirty Water Drainage, Flood Water Removal, Emergency Dewatering, Sludge Handling, Fibrous Waste Handling, Commercial Sewage Systems, Industrial Wastewater
