AMT 6200-98 Stainless Steel Self-Priming Centrifugal Pump (5 HP, 3" NPT, 230/460V, Three Phase)

The AMT 6200-98 is a 5 HP, stainless steel self-priming centrifugal pump designed for high-capacity liquid transfer, dewatering, chemical transfer, circulation and drainage applications. Its cast stainless steel construction and self-cleaning semi-open impeller provide durability and clog-resistant performance when handling compatible liquids containing solids. The built-in Viton flapper/check valve allows self-priming up to 20 feet, while the Viton mechanical seal and serviceable pump construction support reliable operation in demanding commercial and industrial applications.

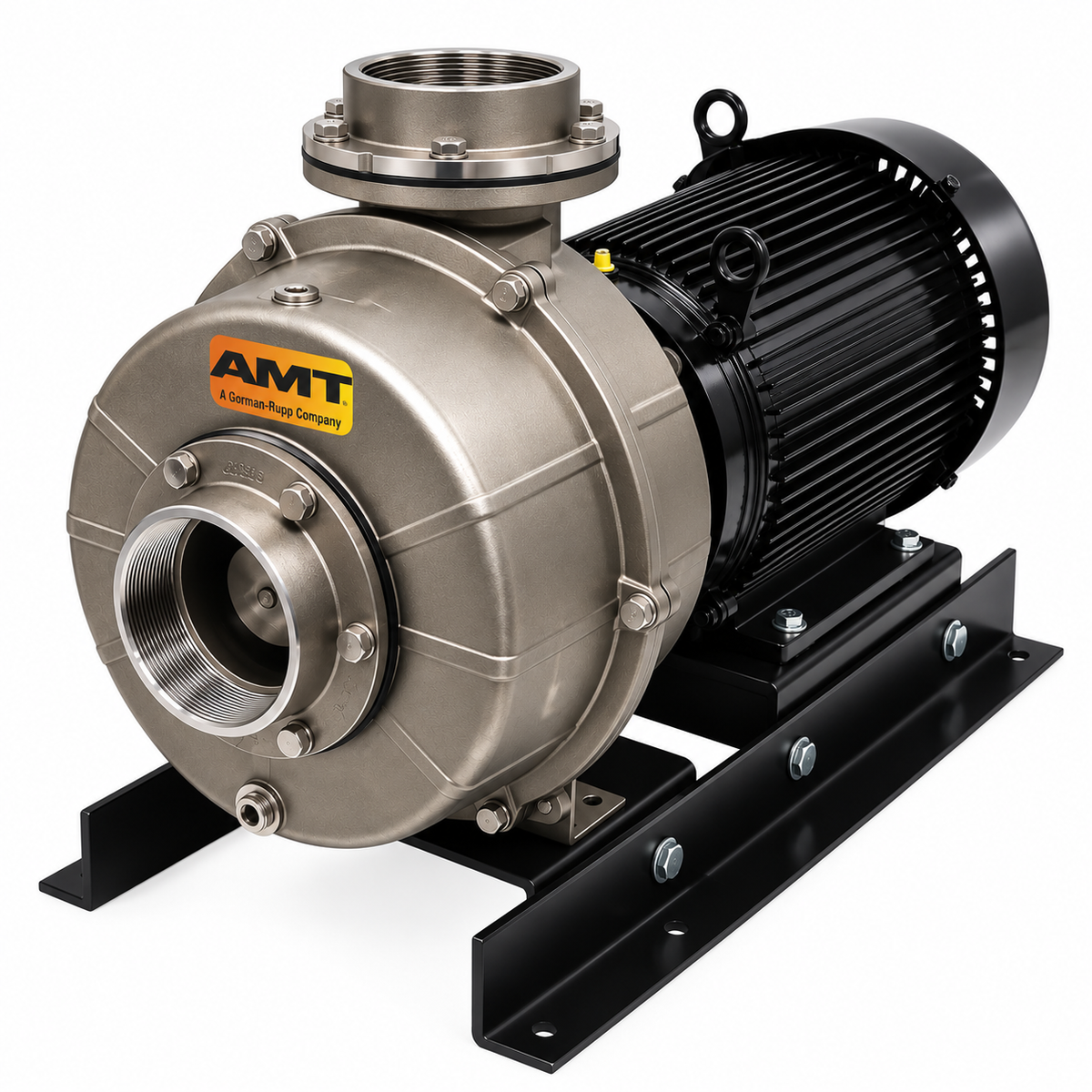

**Note: Stock photo is for reference only; actual product may vary.**

Specifications:

• Model: 6200-98
• Performance Curve: A
• Horsepower: 5 HP (3.73 kW)
• Phase: Three Phase
• Voltage: 230/460V @ 60 Hz
• Full Load Amps: 17/9A
• Motor Enclosure: TEFC
• Motor Frame: 184JM
• Suction: 3" Female NPT
• Discharge: 3" Female NPT
• Maximum Solids: 1/2" Diameter
• Dimension A: 7.1" [18.0 cm]
• Dimension B: 6.8" [17.3 cm]
• Dimension C: 18.0" [45.7 cm]
• Dimension D: 5.5" [14.0 cm]
• Dimension E: 7.5" [19.1 cm]
• Dimension F: 4.5" [11.4 cm]
• Overall Length (L): 33" [84 cm]
• Overall Width (W): 14.1" [35.9 cm]
• Overall Height (H): 16.1" [40.9 cm]
• Shipping Weight: 168 lb

Series Features:

• Cast Stainless Steel Construction
• Stainless Steel Casing, Bracket, Seal Plate and Removable Volute
• Stainless Steel Self-Cleaning Semi-Open Impeller
• Viton Mechanical Seal with Carbon/Carbide Faces
• Viton O-Rings and Gaskets
• Optional Silicon Carbide Seal Available
• Built-In Viton Flapper/Check Valve
• Self-Priming Capability up to 20 Feet
• 3" Female NPT Suction and Discharge Connections
• Handles Spherical Solids up to 1/2" Diameter
• Totally Enclosed Fan Cooled (TEFC) Motor
• Fill and Drain Plugs for Easy Servicing
• Maximum Series Head: 120 Feet TDH (52 PSI)
• Maximum Series Flow: 620 GPM
• Maximum Working Pressure: 100 PSI
• Maximum Liquid Temperature: 200°F
• Optional Mounting Base: A200-90
• Designed for Nonflammable Liquids Compatible with Pump Component Materials

Applications:

Industrial Liquid Transfer, Dewatering, Chemical Transfer, Water Circulation, Drainage Systems, Commercial Pumping, Industrial Process Water, Flood Water Removal, Emergency Dewatering, High-Capacity Water Transfer
