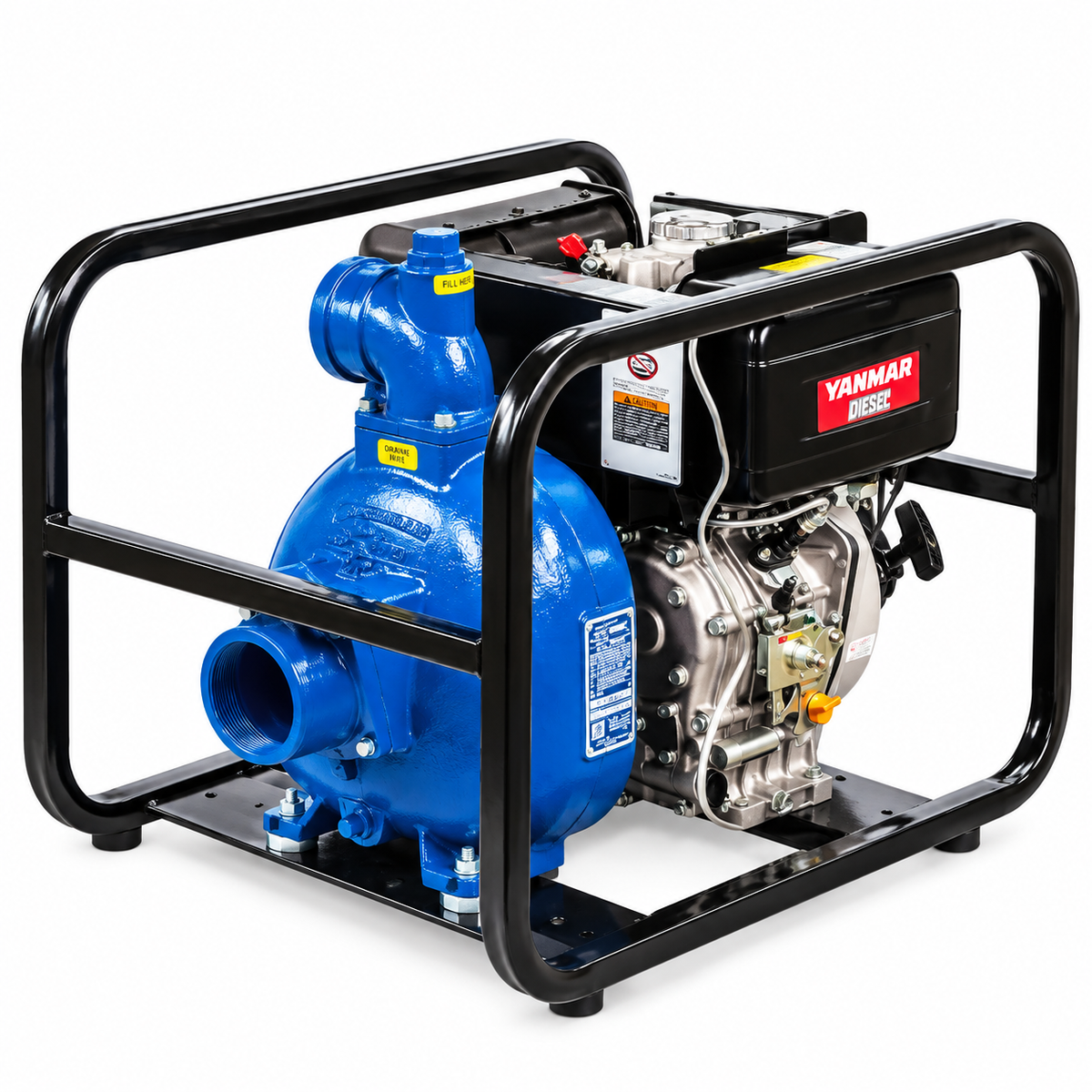

AMT 82D1-L70W FT4-X (6.5 HP, Shield-A-Spark 2" Self-Priming Flammable Liquid Transfer Pump, Yanmar L70W Diesel Engine)

The AMT 82D1-L70W FT4-X is a 2" self-priming, diesel engine-driven flammable liquid handling pump designed for petroleum transfer, industrial operations, construction and agricultural applications. Powered by a Yanmar L70W diesel engine, this pump features cast aluminum construction and a Viton/silicon carbide seal system. Its Shield-A-Spark configuration includes a spark and splash shielded engine, muffler and fuel cap, while the heavy-duty steel roll cage provides protection during portable pumping operations.

**Note: Stock photo is for reference only; actual product may vary.**

Specifications:

• Model: 82D1-L70W FT4-X
• Performance Curve: B
• Engine Manufacturer: Yanmar
• Engine Model: L70W
• Engine Type: Diesel
• Pump Construction: Cast Aluminum
• Suction: 2" Female NPT
• Discharge: 2" Female NPT
• Seal Type: Viton / Silicon Carbide
• Maximum Solids: 0.62" [16 mm]
• Self-Priming Capability: Up to 25 Feet
• Mounting: Heavy-Duty Steel Roll Cage
• Fuel Tank Capacity: 0.87 Gallons [3.3 Liters]
• Listed Run Time: 1.4 Hours
• Dimension A: 11.3" [28.6 cm]
• Dimension B: 20.0" [50.8 cm]
• Dimension C: 17.0" [43.3 cm]
• Dimension D: 8.0" [20.3 cm]
• Dimension E: 13.5" [34.3 cm]
• Overall Length (L): 28.0" [71.1 cm]
• Overall Width (W): 22.1" [56.1 cm]
• Overall Height (H): 22.8" [57.9 cm]
• Shipping Weight: 155 lb

Series Features:

• Cast Aluminum Pump Construction
• Shield-A-Spark Engine-Driven Pump Design
• Yanmar Diesel Engine
• EPA Tier Compliant Diesel Engine Configuration
• Spark and Splash Shielded Engine, Muffler and Fuel Cap
• Viton / Silicon Carbide Seal System
• Self-Priming Capability up to 25 Feet
• 2" Female NPT Suction and Discharge Connections
• Heavy-Duty Steel Roll Cage
• Suction Strainer Included
• 90° Discharge Elbow Included
• Optional Wheel Kit Available
• Series Maximum Flow: 395 GPM
• Series Maximum Head: 140 Feet TDH
• Designed for Petroleum, Industrial, Construction and Agricultural Applications

Applications:

Petroleum Product Transfer, Fuel Transfer, Industrial Liquid Handling, Agricultural Fuel Transfer, Construction Site Fuel Transfer, Portable Diesel-Powered Pumping, Commercial Petroleum Handling, Equipment Fuel Transfer, Industrial Fluid Transfer.
