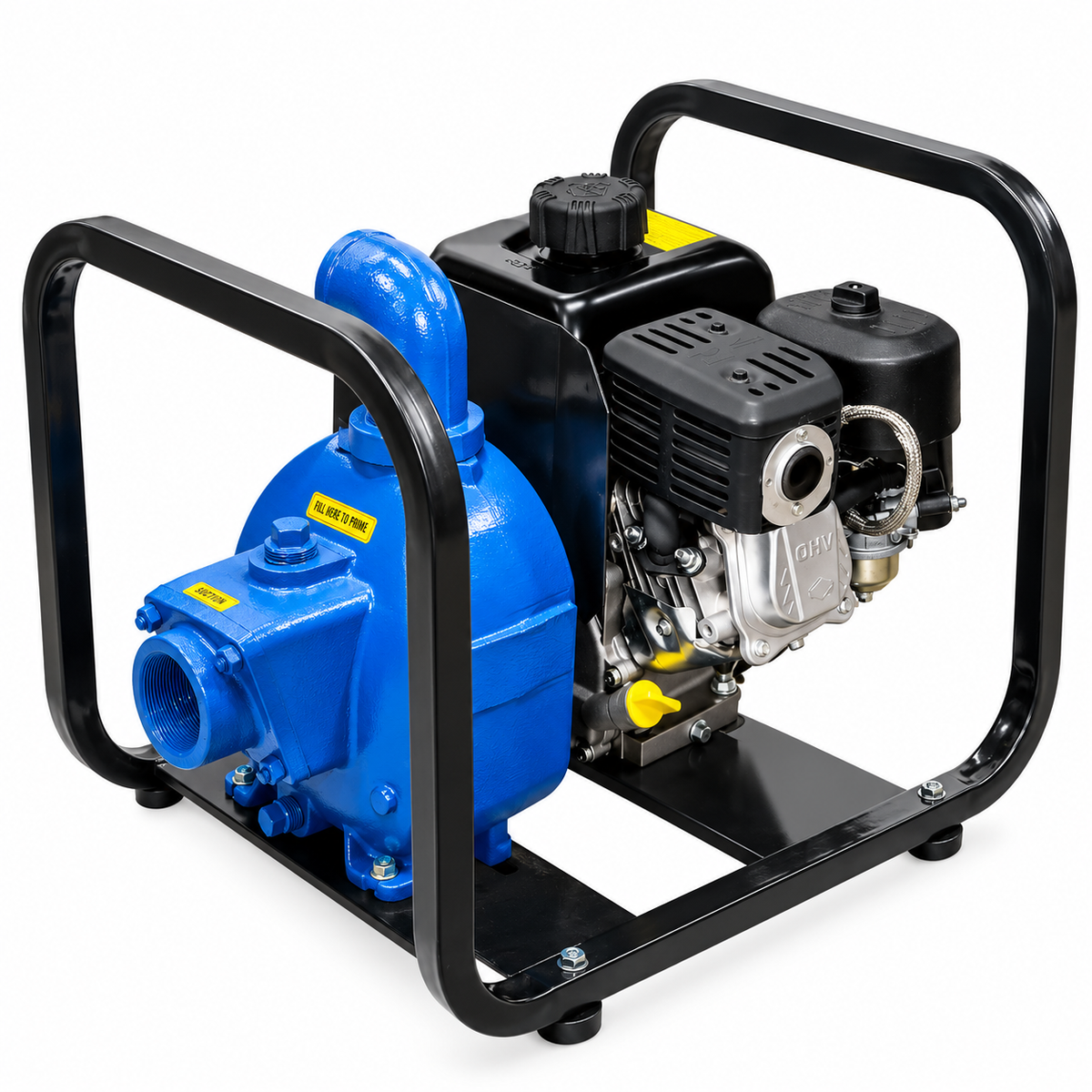

AMT 82D1-XR550-X (5 HP, Shield-A-Spark 2" Self-Priming Flammable Liquid Transfer Pump, Briggs & Stratton XR550 Gasoline Engine)

The AMT 82D1-XR550-X is a 2" self-priming, engine-driven flammable liquid handling pump designed for petroleum transfer, industrial applications, construction and agricultural use. Featuring a Briggs & Stratton XR550 gasoline engine, cast aluminum pump construction and a Viton/silicon carbide seal system, this unit is designed for demanding liquid transfer applications. The Shield-A-Spark design incorporates spark and splash shielding, a shielded ignition system and a heavy-duty steel roll cage. This model is UL Listed and includes a shielded spark plug.

**Note: Stock photo is for reference only; actual product may vary.**

Specifications:

• Model: 82D1-XR550-X
• Performance Curve: A
• Engine Manufacturer: Briggs & Stratton
• Engine Model: XR550
• Engine Type: Gasoline
• Pump Construction: Cast Aluminum
• Suction: 2" Female NPT
• Discharge: 2" Female NPT
• Seal Type: Viton / Silicon Carbide
• Maximum Solids: 0.62" [16 mm]
• Self-Priming Capability: Up to 25 Feet
• Mounting: Heavy-Duty Steel Roll Cage
• Fuel Tank Capacity: 0.5 Gallons [1.9 Liters]
• Listed Run Time: 1.9 Hours
• Dimension A: 6.1" [15.6 cm]
• Dimension B: 17.0" [43.2 cm]
• Dimension C: 14.3" [36.3 cm]
• Dimension D: 6.4" [16.3 cm]
• Dimension E: 12.0" [56.2 cm]
• Overall Length (L): 22.2" [56.3 cm]
• Overall Width (W): 18.0" [45.7 cm]
• Overall Height (H): 18.1" [46.0 cm]
• Shipping Weight: 100 lb
• Certification: UL Listed

Series Features:

• Cast Aluminum Pump Construction
• Shield-A-Spark Engine-Driven Pump Design
• Spark and Splash Shielded Engine, Muffler and Fuel Cap
• Shielded Spark Plug on Gasoline Model
• Shielded Ignition Wire
• Sealed Toggle Ignition Switch
• Spark-Arresting Muffler
• Viton / Silicon Carbide Seal System
• Self-Priming Capability up to 25 Feet
• 2" Female NPT Suction and Discharge Connections
• Heavy-Duty Steel Roll Cage
• Suction Strainer Included
• 90° Discharge Elbow Included
• Optional Wheel Kit Available
• Series Maximum Flow: 395 GPM
• Series Maximum Head: 140 Feet TDH
• Designed for Petroleum, Industrial, Construction and Agricultural Applications

Applications:

Petroleum Product Transfer, Fuel Transfer, Industrial Liquid Handling, Agricultural Fuel Transfer, Construction Site Fuel Transfer, Portable Pumping Operations, Commercial Petroleum Handling, Equipment Fuel Transfer, Industrial Fluid Transfer.
